Swing Gate
Turnstiles
GV-5000 Series / Exclusive Line

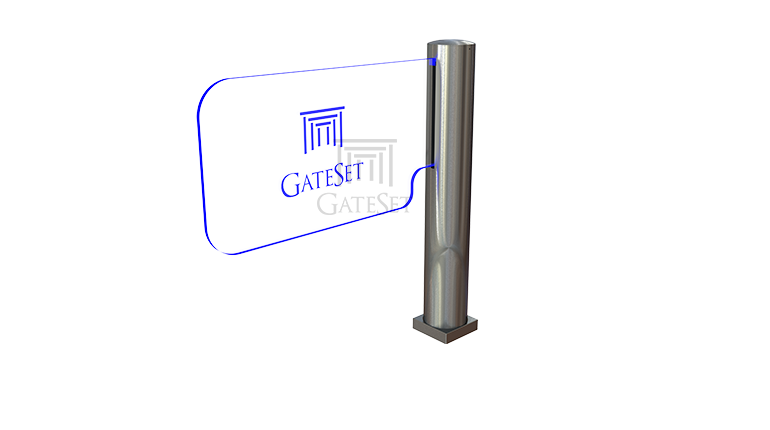

With motorized function in both directions, GateSet Exclusive Line GV-5000 Series Swing Gate Turnstiles provide an alternative way of regulating pedestrian traffic in access points which require an elegant design and robustness against high frequency usage. GV-5000 Series is compatible with international wheelchair standards thanks to passage width provided up to 90 cm. Its 15 mm thick Plexiglass swing arm provides safety against breaking while maximizing robustness. GV-5000 Series is an ideal option for access control points with high aesthetic value and a requirement for budget-friendly solution.
Functional Highlights
Usage Areas
Access Control
Access Restriction
Business Centers
Government Offices
Sport Centers
Industrial Plants
Featured Characteristics
Exclusive Design
Aesthetic outfit with satin finishing
Reliable
Low maintenance requirement, long product life
Robust
Manufactured from 3 mm 304 grade stainless steel 15 mm thick Plexiglass arm
Functional
Bidirectional motorized movement allows passage in both directions
Customizable
Printing of chosen logo is available with Plexiglass obstacle
Optional Accessories
Digital Counter
Button Control Unit
Designed for ease of operation from reception or supervision desks, remote or wired options
Photocell Sensor
Gate wing is automatically opened when the Photocell Sensor beam is interrupted by a passanger
Stand-Alone Card Reader
For sites without Access Control System, seamless stand-alone card reader is available

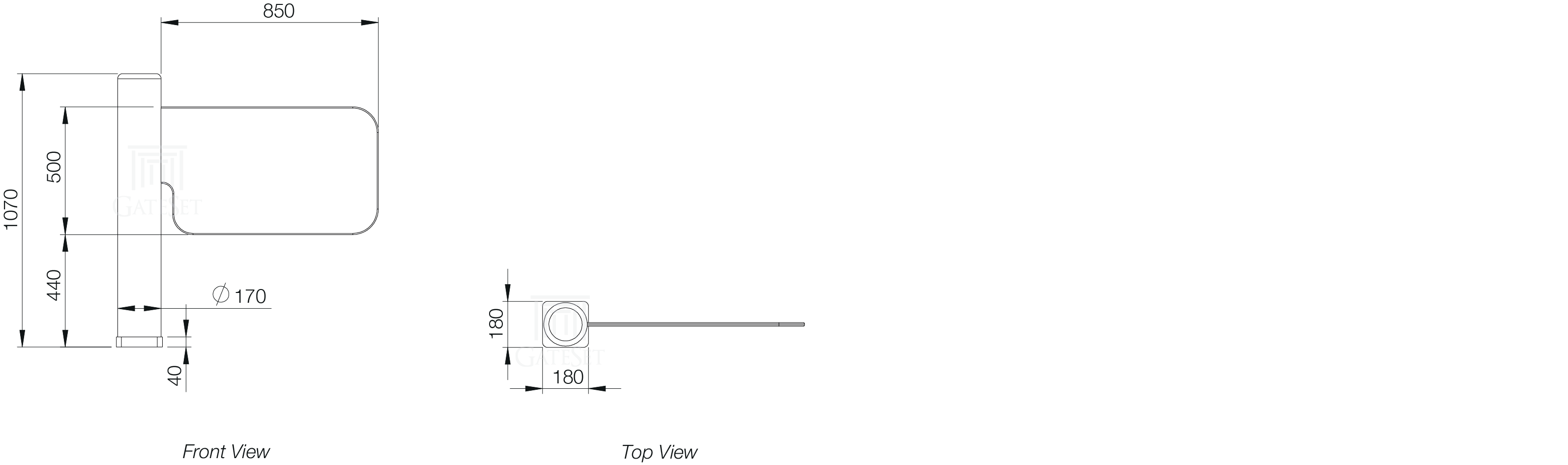

Drawings and Dimensions
* Subject to change depending on design or project needs without prior notice
Technical Specifications
GV-5000 Series
| MATERIAL - MAIN BODY | 3 mm 304 grade stainless steel |
| MATERIAL - SWING ARM | 15 mm illuminated safety Plexiglass |
| TREATMENT - OTHER PARTS | All other parts are coated against corrosion |
| DIMENSIONS (mm) | 180 x 1030 x 1070 (WxLxH) |
| SWING ARM LENGTH (mm) | 850 mm |
| OPERATING VOLTAGE | 115-240 V AC / 24V DC - 50-60 Hz |
| NOMINAL / MAX. CURRENT | 100 mA / 500 mA |
| POWER CONSUMPTION | 30 W |
| OPERATING TEMPERATURE | -20°C / +70°C |
| ACCESS CONTROL | Microprocessor based control for granting access, easy integration with all access control equipment |
| POSITION DETECTION | Position detection with two separate micro-switches at mechanics |
| DIRECTIONAL MODE | Bidirectional motorized operation |
| ROTATION CONTROL | Motion start and stop are controlled by PWM |
| CAPACITY | Handling more than 30 passengers per minute |
| DESIGN | While aesthetic design with illuminated glass arm provides good outlook, its modularity ensures ease of installation and part replacement |
| CUSTOMIZATION | Printing of chosen logo is available with Plexiglass obstacle |
| INSTALLATION | Stainless steel modular installation platform/base |
| OPERATION SAFETY | Electrical and mechanical safety for all component. To avoid injuries, all corners and sides are rounded |
| ELECTRICAL FAILURES | Main mechanism released and unlocked automatically. Swing arm moves freely |
| ACCESSORIES | Button Control (standard), Remote Control Receiver and Transmitter (optional) |
| CERTIFICATION | ISO 9001:2015 |
| WARRANTY | 2 Years |
