Swing Gate
Turnstiles

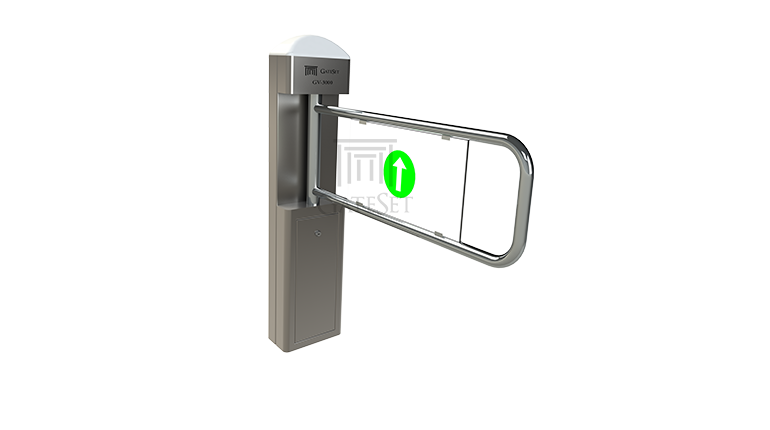

GV-3000 Series / Classic Line
With motorized function in one direction, GateSet Classic Line GV-3000 Series Motorized VIP Swing Gate Turnstiles provide an alternative to regulate pedestrian traffic. Thanks to its compact design and 90 cm arm length which is compatible with international wheelchair standards, GV-3000 is an ideal solution to provide controlled passage for VIP and physically handicapped people. Thanks to its aesthetic and user-friendly design, GV-3000 Series Swing Gates are ideal for shopping malls, supermarkets, fitness/wellness centers.
Functional Highlights
Usage Areas
Access Control
Access Restriction
Business Centers
Government Offices
Sport Centers
Industrial Plants
Featured Characteristics
Classic Design
Aesthetic outfit with satin finishing
Reliable
Low maintenance requirement, long product life
Robust
Steel profile swing arm
Functional
Unidirectional motorized movement
Flexible
Ease of integration with all access control equipment through its electronic control card
Optional Accessories
Radar Sensor
Button Control Unit
Designed for ease of operation from reception or supervision desks, remote or wired options
Photocell Sensor
Gate wing is automatically opened when the Photocell Sensor beam is interrupted by a passanger
Stand-Alone Card Reader
For sites without Access Control System, seamless stand-alone card reader is available

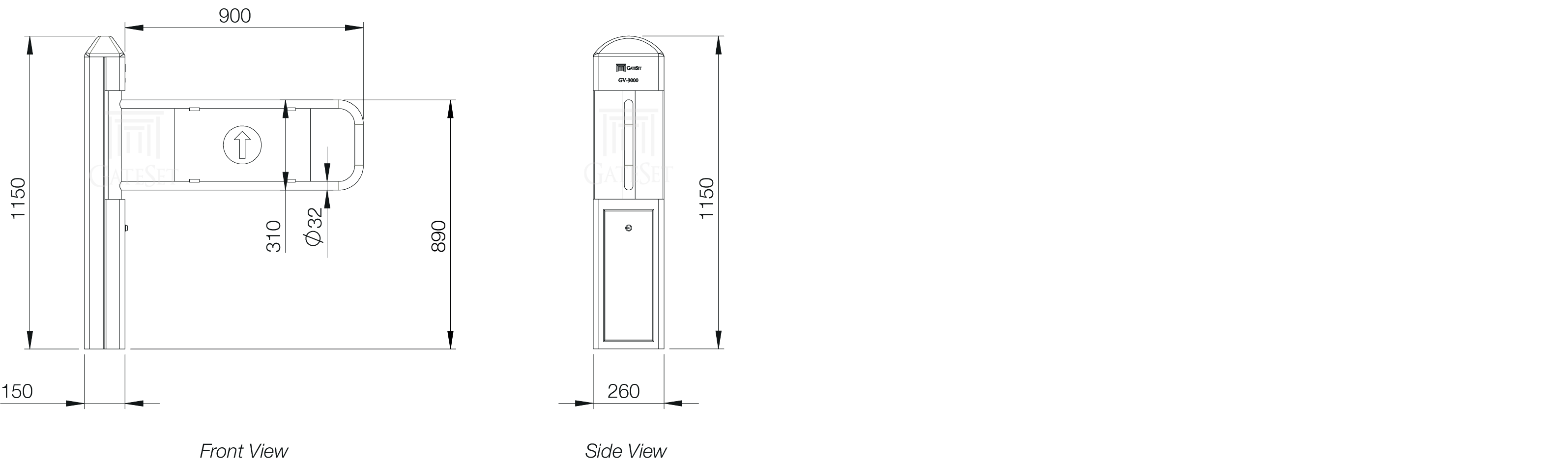

Drawings and Dimensions
* Subject to change depending on design or project needs without prior notice
Technical Specifications
GV-3000 Series
| MATERIAL - MAIN BODY | 1.5 mm 304 grade stainless steel |
| MATERIAL - SWING ARM | Steel profile frame with 32 mm diameter |
| TREATMENT - OTHER PARTS | All other parts are coated against corrosion |
| DIMENSIONS (mm) | 260 x 1050 x 1150 (WxLxH) |
| SWING ARM LENGTH (mm) | 900 |
| OPERATING VOLTAGE | 115-240 V AC / 24V DC - 50-60 Hz |
| NOMINAL / MAX. CURRENT | 100 mA / 500 mA |
| POWER CONSUMPTION | 30 W |
| OPERATING TEMPERATURE | -20 °C / + 70 °C |
| ACCESS CONTROL | Microprocessor based control for granting access. Easy integration with all kind of access control equipment |
| POSITION DETECTION | Position detection with two separate micro-switches at mechanics |
| DIRECTIONAL MODE | One directional motorized operation |
| ROTATION CONTROL | Motion start and stop are controlled by PWM microprocessor |
| CAPACITY | Handling more than 30 passengers per minute |
| DESIGN | Modular design providing ease of installation and part replacement |
| INSTALLATION | Stainless steel modular installation platform/base |
| OPERATION SAFETY | Electrical and mechanical safety for all component. To avoid injuries, all corners and sides are rounded |
| ANTI-PANIC FEATURE | In case of emergency, arm releases itself with excessive force, providing ease of evacuation |
| ACCESSORIES | Button Control (standard), Remote Control Receiver and Transmitter (optional) |
| CERTIFICATION | ISO 9001:2015 |
| WARRANTY | 2 Years |
