VEHICLE GATES
GSG-L Vehicle Gate
VEHICLE
ACCESS
CONTROL
ACCESS
CONTROL
VEHICLE
ACCESS
CONTROL
ACCESS
CONTROL
VEHICLE GATE
BARRIERS

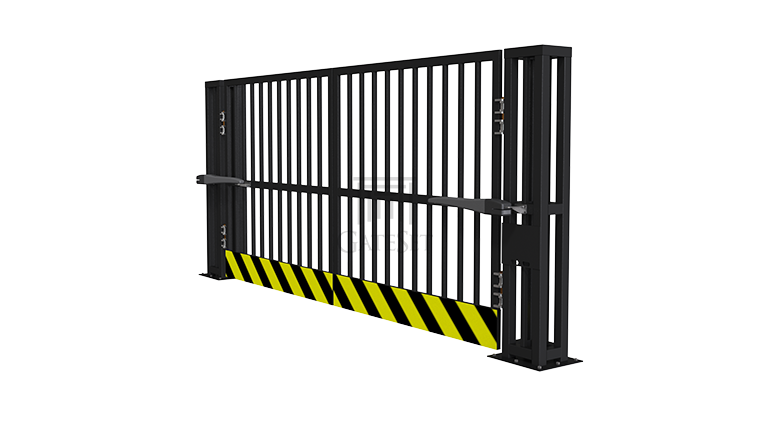

GSG-L Series
GateSet GSG-L Series Swing Gates Systems provides access control to restricted areas by combining delicately manufactured steel Gates with highly reliable LUX G operator, which provides long operation life and all necessary accessories such as safety photocells, remote controlling device and flashing lights. Thanks to flexible production line, various material options are available with different gate dimensions.
Usage Areas
Access Control
Military Sites
Government Offices
Police Headquarters
Research Centers
Embassies
Airports
Industrial Areas
Featured Characteristics
Robust
Thanks to its solid structure with fine-crafted material, provides durability in various harsh environmental conditions such as extreme colds, high temperatures, sand and rain storms
Tailor-Made
With the project-specific approach of GateSet engineering department, site requirements are carefully investigated and ideal solutions are provided with exact required dimensions
Adaptable
Presents case-oriented solutions with different operational choices such as sliding, telescopic sliding and swing movement, depending on site conditions

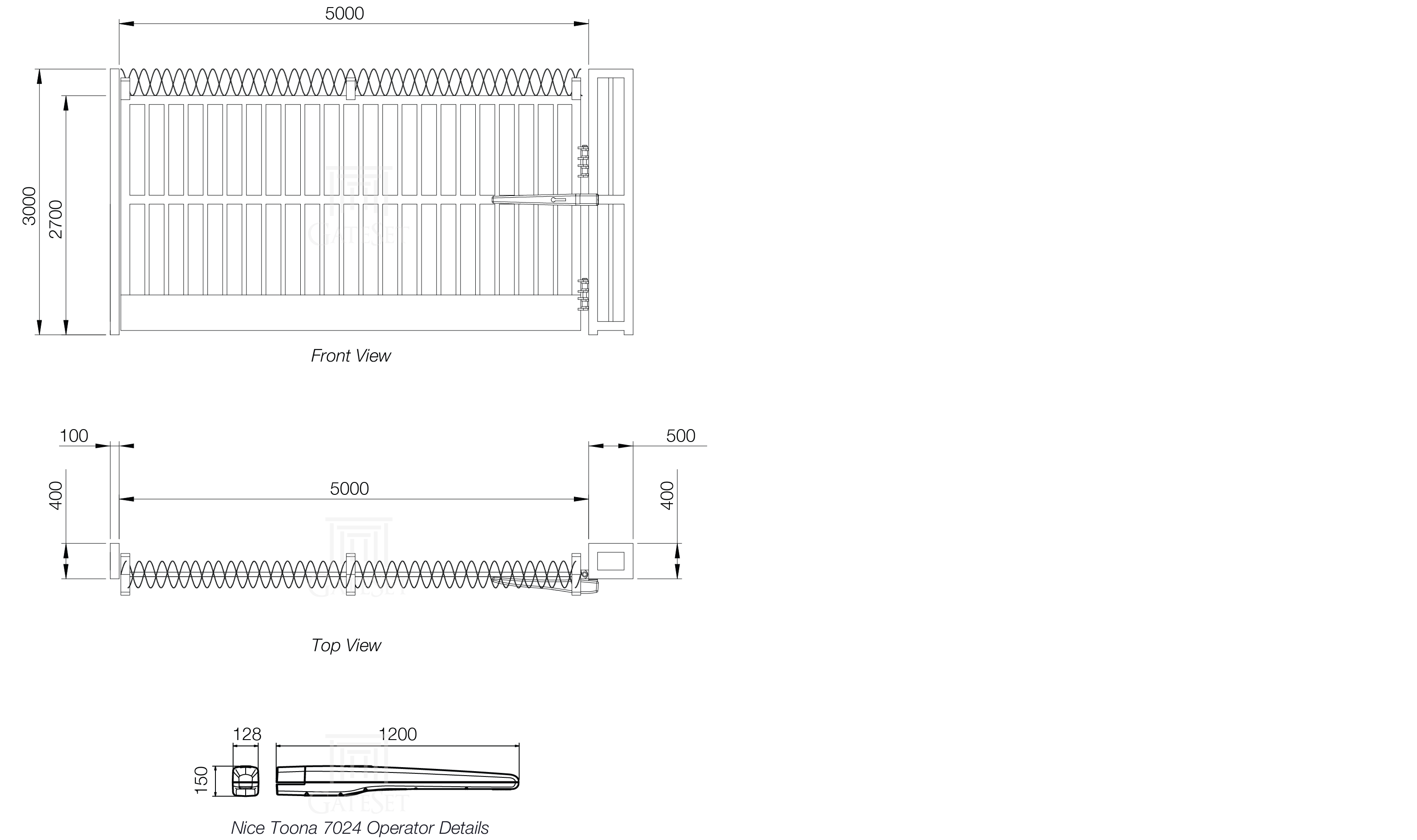

Drawings and Dimensions
GSG-L Series
Subject to change depending on design or project needs without prior notice
Technical Specifications
GSG-L Series
| GATE LEAF | 50 x 100 mm Steel Profile Main Frame, 50 x 50 mm Filled Steel Frame Vertical Infills |
| MAIN HOLDER POST | 100 x 100 mm Steel Profile Main Frame, 50 x 50 mm Filled Steel Frame Vertical Infills |
| COATING | Jotamastic Primer with Black Polyester Finishing, Yellow Stripes Aplied at Last. RAL Colors Available |
| DIMENSIONS (mm) | 5600 x 400 x 3000 (WxLxH) *for GSG5300-L |
| PASSAGE WIDTH (mm) | 5000 *for GSG5300-L |
| IMPACT RESISTANCE | Capable to Stop Automobiles at 30 Km/h |
| OPERATION | Reversible Hydraulic Motorized Movement with TOONA 7024 |
| MOTOR DIMENSIONS (mm) | 128 x 1200 x 150 (WxLxH) |
| OPERATION CONTROL | Operation Control with Moonclever MC824H Control Unit, Compatible with any kind of Standard Interface, Button (standard) |
| POWER | 220-230 V AC / 24 V DC 50/60 Hz - 120 W |
| THERMAL PROTECTION | Integrated |
| OPERATION SPEED | 0,013 m/sec |
| MAX LEAF WEIGHT | 800 kg for Each Leaf |
| IMPACT REACTION | Hydraulic Clutch |
| OBSTACLE DETECTION | MC824H Dual Technology |
| FAULT DETECTION | MC824H Auto Fault Diagnostics |
| MANUAL RELEASE | In Case of Electricity Cut Reversible Manual Release |
| TYPE OF LOCK | Electric Lock |
| OPERATING CYCLE | Very Intensive |
| PROTECTION LEVEL | IP57 |
| OPERATING TEMPERATURE | -20° C / +60° C |
| ACCESSORIES | Safety Photocell (On Poles), Button Control Key, Flashing Light, Remote Control Receiver / Transmitter |
| CERTIFICATION | ISO 9001:2015 |
| WARRANTY | 2 Years |
