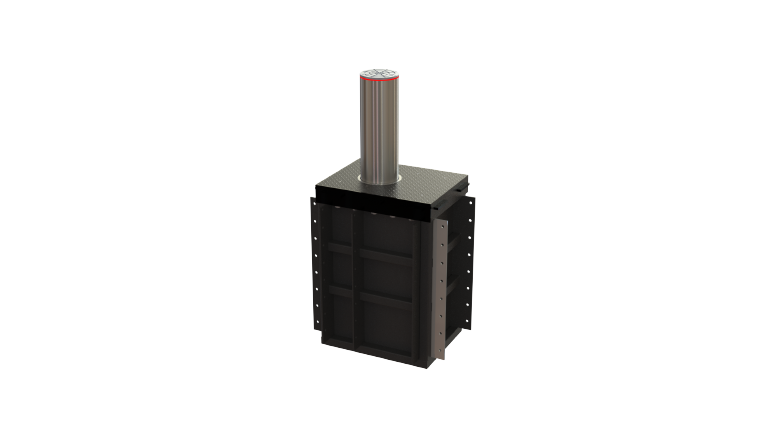

GSB9000 HYDRAULIC RISING BOLLARD
hydraulic-control-cabinet

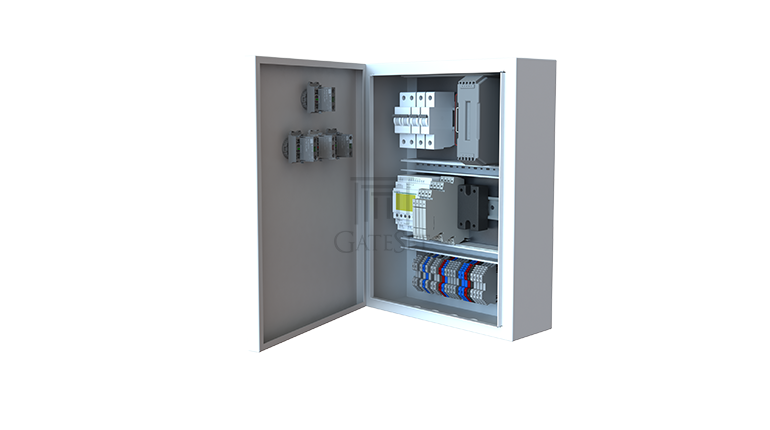

ELECTRONIC CONTROL CABINET
control-keyboard

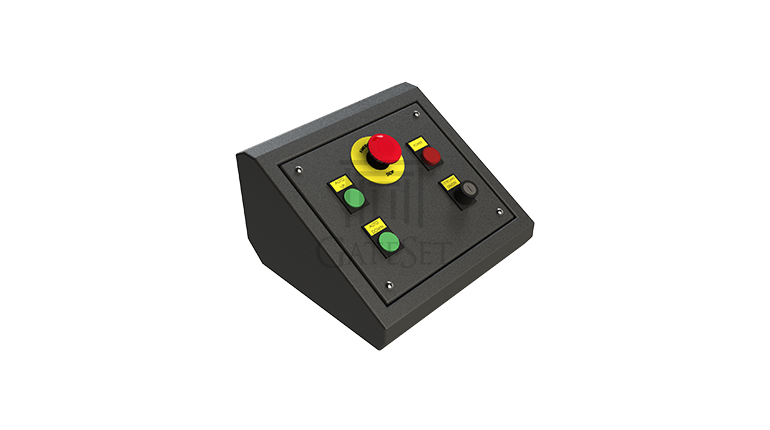

REMOTE CONTROL KEYBOARD
control-keyboard 360

Hover mouse on product for 3D view

Click for 3D view

AUTOMATIC RISING BOLLARDS
BARRIERS

GSB9000 Anti-Terror Series

GateSet GSB9000 Series Hydraulic Rising Bollards are designed to protect sensitive areas that require high level of security. Cutting edge internal hydraulic power pack of GSB9000 provides silent and smooth operation with ease of installation and maintenance. The product is engineered to withstand high impact forces by destroying the front suspension system of the hostile vehicle. In cooperation with Horiba Mira UK, the product is pending to be tested against IWA14-1:2013 standards and expected to be awarded IWA14-1:2013, N2A Level Certification. With reinforced infrastructure and powerful hydraulic unit, GSB9000 Series is an ideal choice for high frequency heavy duty operation, achieving high level of security while maintaining an aesthetic look.

Usage Areas
Access Control

Military Sites
Government Offices
Police Headquarters
Research Centers
Embassies
Airports
Industrial Areas
Sensitive Sites (Subject to Ram Attacks)

Featured Characteristics
Cutting Edge

State-of-the-art internal hydraulic power pack design with maximum reliability.

Efficient

Ease of maintenance and installation combined with smooth and silent operation, thanks to internal hydraulics and modular case design.

High Impact Resistance

GSB9000 Series Rising Bollards are designed by using the cutting-edge manufacturing computer technology to meet K12 level of IWA14-1:2013 standards. Computer aided element tests have proved that GSB9000 Series Series withstands an impact force of 7,500 kg @ 80 km/h.

Advanced

Schneider PLC and top quality electronics, providing simultaneous and synchronized operation of up to 30 bollards with a single electronic control cabinet

Heavy Duty

Suitable for intense usage at high frequency access control points, supporting 5,000+ movements in a consecutive fashion, a total 10,000+ movement per day.

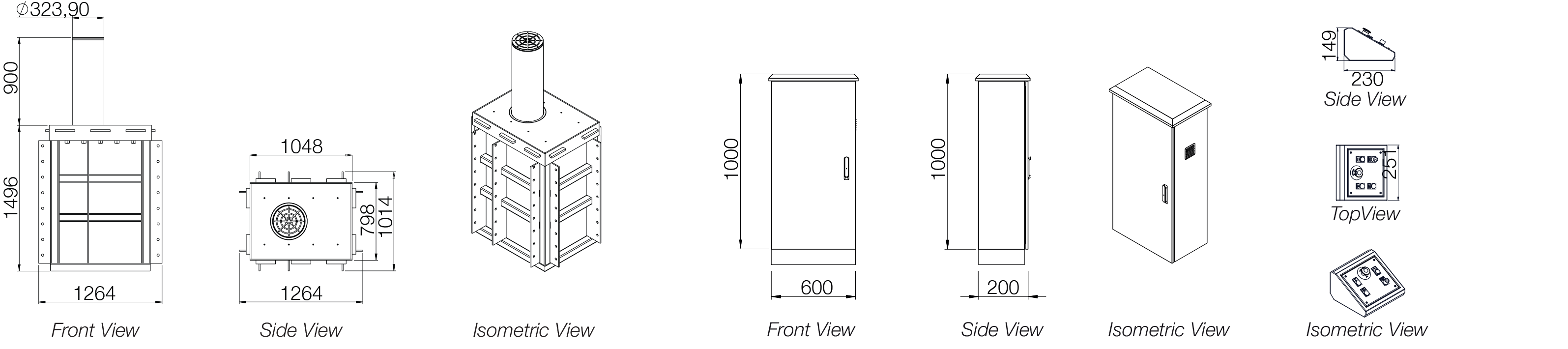

Drawings and Dimensions
Bollard
Bollard

REMARKS
a- Obstacle Height: GSB9090: 900, GSB9100: 1000, GSB9110: 1100
b- Underground Case Depth:GSB9090: 1412, GSB9100: 1512, GSB9110: 1612

* Above cabinet measurements are for an outdoor cabinet for standard three group configuration. Subject to change depending on design or project needs without prior notice

Technical Specifications
GSB9000 Series
DRIVE Internally Incorporated Hydraulic
DRIVE POWER 50 Bar Average, 80 Bar Maximum
CYLINDER DIAMETER  323.9 mm
OBSTACLE HEIGHT  GSB9090: 900mm, GSB9100: 1000mm, GSB9110: 1100 mm
CYLINDER THICKNESS  Classified
MATERIAL 27 mm ST52 Steel Core, Finished by 3 mm Stainless Steel Sleeve
OUTER CASE DIMENSIONS  GSB9090:1100x850x1412 mm, GSB9100:1100x850x1512 mm, GSB9110:1100x850x1612 mm
BEARING / MANHOLE  30 mm Thickness Steel Bearing, 24 mm Steel Top Plate and 6 mm Top Cover
VISIBILITY ENHANCEMENT  Integrated LED Stripe
RISING / FALLING TIME  7 - 8 Seconds (Adjustable)
EMERGENCY OPERATION 2 Seconds (Optional with Emergency Operation Kit)
POWER SUPPLY  220 V AC / 50-60 Hz. 1.5kW
PROTECTION CLASS  IP 67
CONTROL PANEL Independent Controller Box for Simultaneous Operation of Grouped Bollards
  Schneider SR2A101BD PLC controller with Display
IMPACT RESISTANCE 7,500 kg at 80 km/h (IWA14-1:2013, N2A certification pending)
OPERATION TEMPERATURES  - 30 °C / + 65 °C
WORKING FREQUENCY  Heavy Duty with 5000 Movement/Day
POSITION DETECTION  2x Waterproof In-Core Proximity Sensor for Up and Down Positions
MANUAL OPERATION  Easy Release System with Personalized Key
OPERATION CONTROL  Compatible with any kind of Standard Interface, Button (standard)
  Remote Control, RFID - Proximity Card Reader, LR etc. (optional)
EASE OF MAINTENANCE Manometer Connection Access and Operation Pressure Access from Top of the Case (No need to take the case out from ground)
HYDRAULIC OIL Mobil Atf 220 (standard)
SAFETY EQUIPMENT  Emergency Stop Button (standard) Photocell, Loop Sensor (optional)
ACCESSORIES  Traffic Lights, Flashing Light, Siren, Warning Sign, Drainage Pump (optional)
CERTIFICATION  ISO 9001:2015, CE
WARRANTY 2 Years
