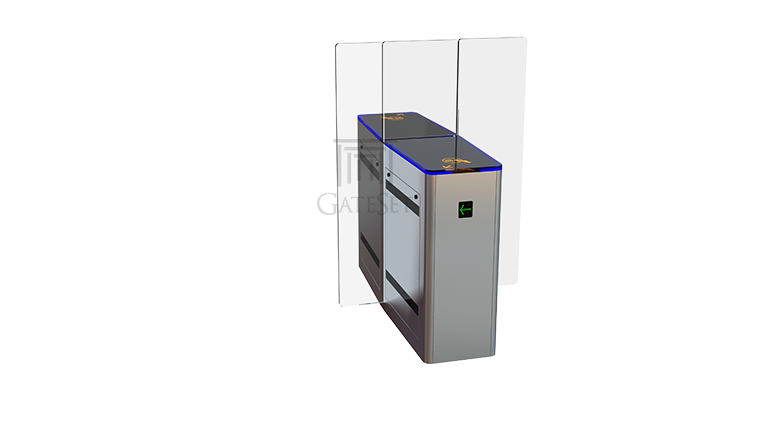

gs-9920-double-hybrid-wing
GS-9920 HYBRID DOUBLE WING
gs-9920-double-hybrid-wing 360

Hover mouse on product for 3D view

Click for 3D view

SPEED GATE
TURNSTILES

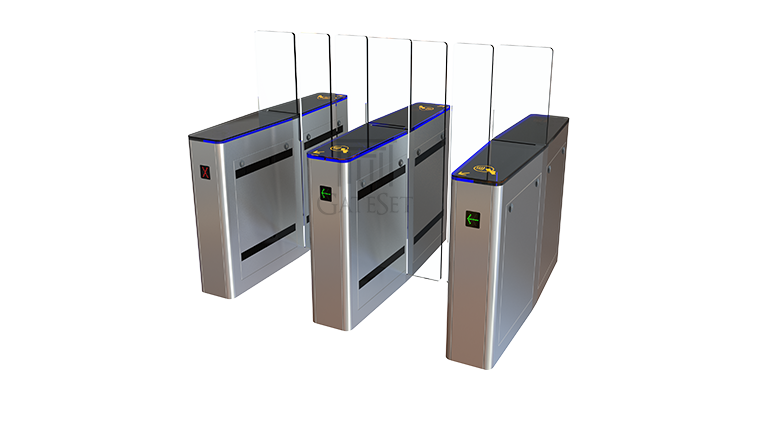

GS-9000 Series / Corporate Line

GateSet Corporate Line GS-9000 Series Speed Gate Turnstiles are robust products functioning to provide pedestrian access control in areas requiring moderate to high level of security. Encoder and PLC controlled obstacle movement is provided by brushless DC motor, and enhanced with security features such as anti-tail-gating and anti-pass-back, with seven pairs of optical sensors embedded in the turnstile case, which in total ensures one of the highest reliability available in market and a remarkably long life even in case of intensive usages. GS-9000 Series Speed Gates are the perfect solution, where design, aesthetics and passage speed are important.

Functional Highlights
Usage Areas
Access Control

Fee Collection
Access Restriction
Business Centers
Government Offices
Sport Centers
Industrial Plants

Featured Characteristics
Elegant

Satin finished 304 Stainless Steel Case, tempered glass top cover and obstacles

Reliable

Brushless DC motor, controlled by Omron PLC providing a long product life with minimum maintenance

Robust

1.5 mm 304 grade stainless steel Case, enhanced with 3 mm thick internal horizontal frames

Secure

Anti-Pass-Back and Anti-Tail-Gating with 7 pairs of embedded industrial optical sensors

Flexible

Ease of integration with various access control systems thanks to its control PLC answering all demanded high-end functions

Products in this Series

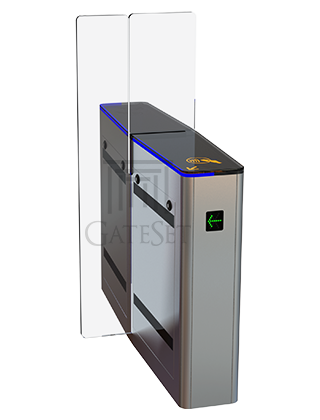

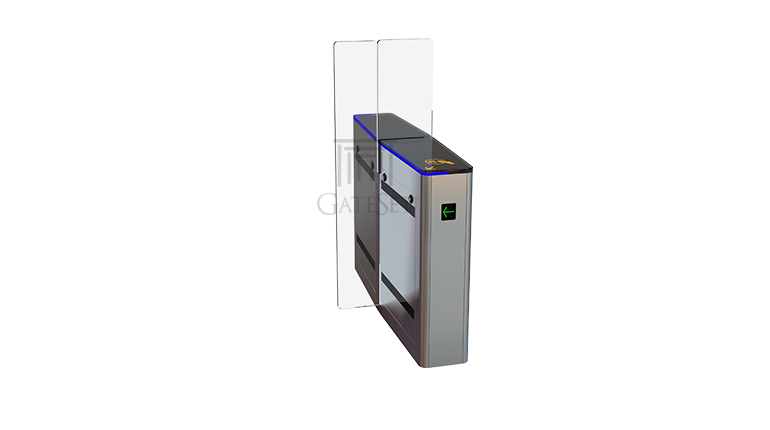

GS-9300

- Standard Single Wing
- 304 Stainless Steel Body
- Black Tainted Glass Top
- Configured as:
* Master / Starting Unit or
* Slave / Ending Unit
- Provides one 550 mm wide
Passage together with
corresponding standard wing

GS-9300

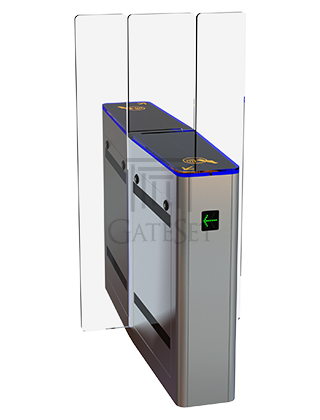

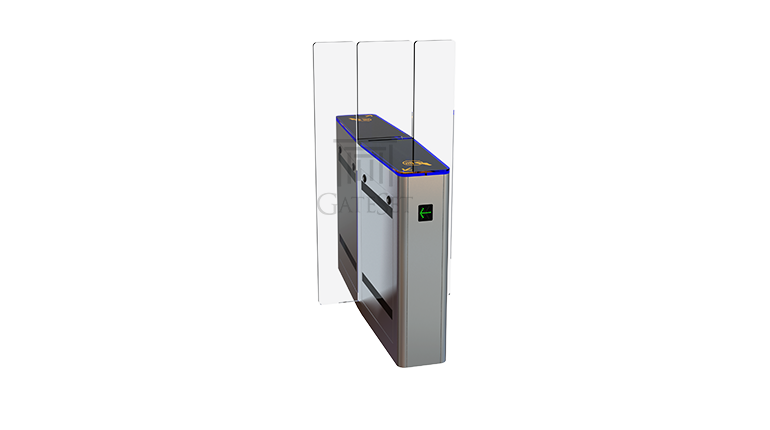

GS-9600

- Standard Double Wing
- 304 Stainless Steel Body
- Black Tainted Glass Top
- Configured as:
* Master / Center Unit and
* Slave / Center Unit
- Provides two 550 mm wide
Passages at each side
together with corresponding
standard wings

GS-9600

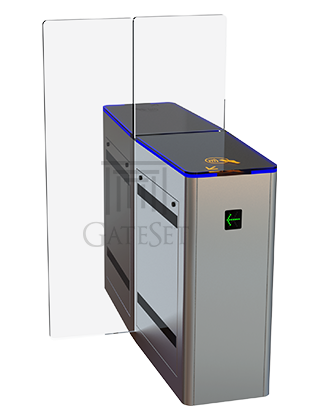

GS-9900

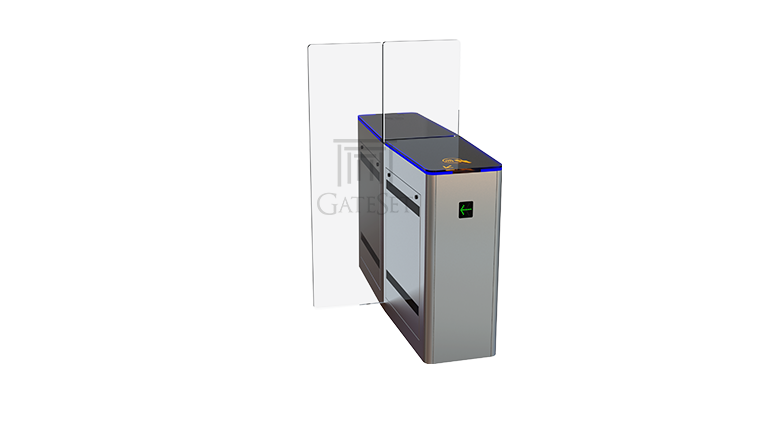

- Disabled Single Wing
- 304 Stainless Steel Body
- Black Tainted Glass Top
- Configured as:
* Master / Starting Unit or
* Slave / Ending Unit
- Provides one 900 mm wide
Passage together with
corresponding disabled wing

GS-9900

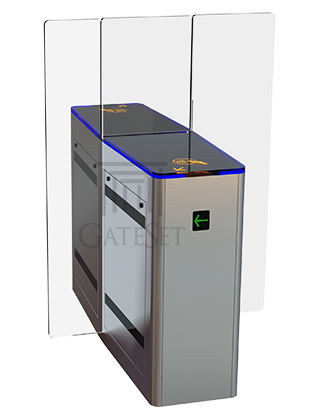

GS-9920

- Hybrid Double Wing
- 304 Stainless Steel Body
- Black Tainted Glass Top
- Configured as:
* Master / Center Unit and
* Slave / Center Unit
- Provides one 550 mm wide
and one 900 mm wide
Passages at each side
together with corresponding
standard and disabled wings

GS-9920
Optional Accessories
DC Power Pack
DC Power Pack

With DC Power Pack, wings can be configured to open automatically in case of power failure

Logo Engraving on Wings
Logo Engraving on Wings

Personalized graphics engraving with laser on obstacles are provided on demand

Stand-Alone Card Reader
Stand-Alone Card Reader

For sites without Access Control System, seamless stand-alone card reader is available

Button Control Unit
Button Control Unit

Designed for ease of operation from reception or supervision desks, remote or wired options

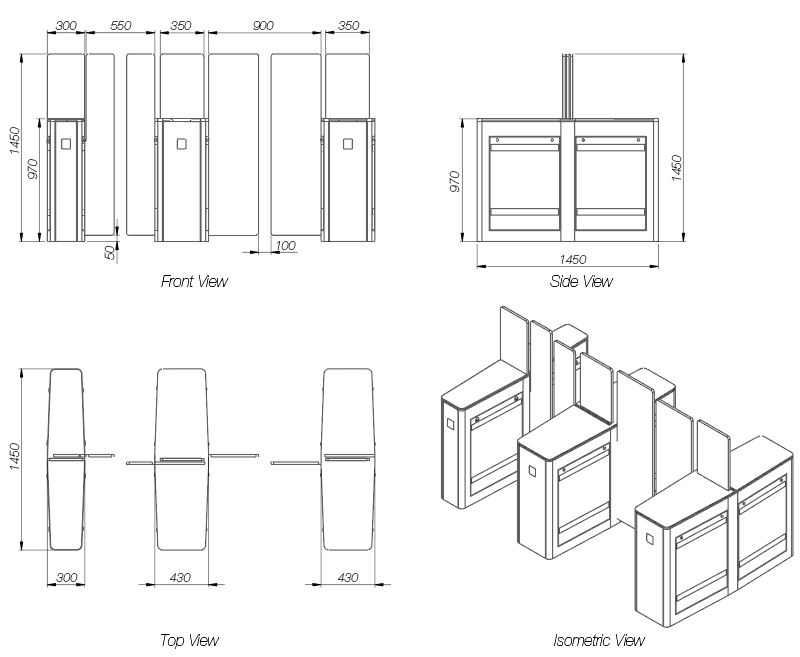

Drawings and Dimensions

* Subject to change depending on design or project needs without prior notice

Technical Specifications
GS-9000 Series
MATERIAL - MAIN BODY 1.5 mm 304 grade stainless steel, satin finishing
MATERIAL - TOP COVER 10 mm Plexiglas Layer for LED Stripes, Finished by 10 mm Tempered Safety Glass (Black Tainted)
MATERIAL - INNER CASE Reinforced with 5 mm horizontal and 3 mm vertical galvanized metal bars to increase strength
MATERIAL - OBSTACLE 12 mm thick safety tempered glass for standard passage
SIDE COVERS Removable to provide easy access for servicing and maintenance
Optical sensors are covered with 3mm thick Plexiglas
TREATMENT - OTHER PARTS  All other parts are coated against corrosion
CASE DIMENSIONS (mm)  300 x 1450 x 980 (GS-9300, GS-9600), 430 x 1450 x 980 (GS-9900, GS-9920, GS-9940)
OBSTACLE LENGTH (mm)  225 mm (Standard Wing), 400 mm (Disabled Wing)
PASSAGE WIDTH (mm)  550 mm (Standard Passage), 900 (Disabled Passage)
WING HEIGHT  1200 mm
OPERATING VOLTAGE  115-240 V AC / 24V DC - 50-60 Hz
POWER CONSUMPTION  150 W (max) for single wing, 300 W (max) for double wings
OPERATING TEMPERATURE  -20°C / + 70°C
ACCESS CONTROL Highest end Omron PLC control for granting access. Easy integration with all kind of access control equipment, configured to receive free contact at standard, flush- mounted proximity reader integration into top-lid for both directions of passage (110x110mm cut-out standard, different dimensions available)
SENSOR CONTROL 7 point (pairs) IR sensor control for N/O mode, sequential (switching) passage feature for N/C mode.
  The system continuously monitors the status of the corridor and gives alarm in several cases
OCCUPANCY MONITORING When a user occupies the lane without flushing a card, systems gives alarm after an adjustable time
PASSAGE TIME-OUT In instances where the lane is not used when access is granted the system will give alarm after adjustable time-out duration is exceeded
ENCOUNTERING  When the lane is occupied from the opposite direction of the granted access, the system will give alarm
ANTI-TAIL-GATING When an unauthorized access attempt is made right after a valid access, system will give alarm and block access right after the valid passage (alarm/block access configurations are adjustable)
POSITION DETECTION  Position of the obstacle wings are detected by inductive switches
WARNING INDICATORS Two separate warning indicators at front and rear sides of the gate.
  Green arrow indicates “Passage Open”, Red cross indicates “Passage Closed”
SIDE LED STRIPES Passage indication with side LEDs. Green for passage free, Red for passage blocked, Blue for standby
OBSTACLE MOVEMENT Motorized movement by 24 V DC - 30 W brushless motor coupled with 50:1 gearbox.
  Speed control with encoder.
SAFETY SENSOR  Middle safety IR sensor for preventing obstacle - user interference
DIRECTIONAL MODE Unidirectional and Bidirectional operation features as “Only Entrance”, “Only Exit”, “Entrance and Exit”
CAPACITY Handling more than 40 passengers per minute
OPERATION SAFETY Electrical and mechanical safety for all components. To avoid injuries, all corners and sides are rounded
ELECTRICAL FAILURES  The wings are released automatically to be opened easily by hand
EMERGENCY OPERATION  Fail-Safe: Wings will be remain it the current position (standard).
  Fail-Secure Wings automatically hide to ensure safe evacuation during emergency (optional)
COMMUNICATION INTERFACE Built-in RS485 and COM Port connectivity
INSTALLATION  Ease of installation with mounting plate
CERTIFICATION  ISO 9001:2015
WARRANTY 2 Years
