GL-1000 SWING GATE TURNSTILE
GL-1100 SWING GATE TURNSTILE
GL-1200 SWING GATE TURNSTILE
Hover mouse on product for 3D view
Click for 3D view
Swing Gate
Turnstiles
GL-1000 Series / Eco Line
GateSet Eco Line GL-1000 Series Manual Leaf Swing Gate Turnstiles are an economical alternative to regulate pedestrian traffic. Thanks to its compact design, GL-1000 Series Leaf Swing Gates are an ideal solution to provide controlled passage for pedestrians and carrying goods. GL-1000 Series provides passage in one direction, and is available with manual lock with key or electromagnetic lock with access control. GL-1000 Series Swing Gates are applicable in shopping malls, supermarkets, fitness/wellness centers including tight areas with its compact, aesthetic and user friendly design.

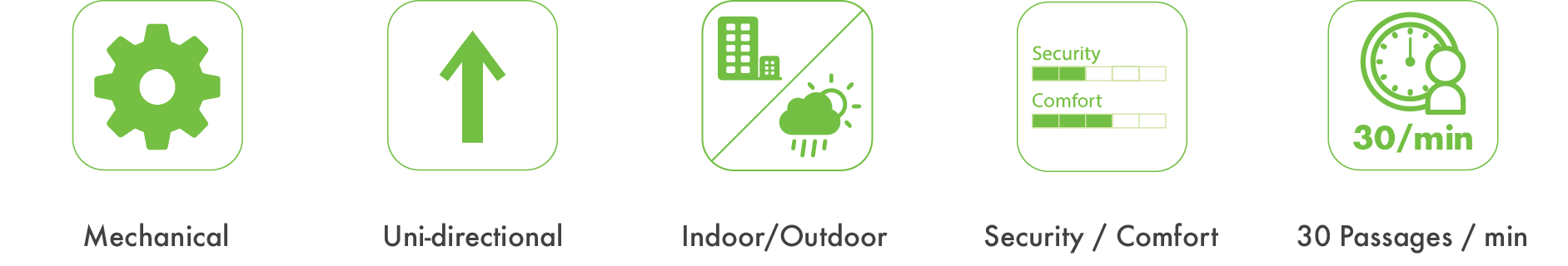

Functional Highlights
Usage Areas
Access Control
Stadiums
Subways
Concert Halls
Sport Centers
Industrial Plants
Featured Characteristics
Classic Design
Aesthetic outfit with polished finishing
Functional
Uni-Directional Manual Operation - Auto Center Feature
Compact
Thanks to its small footprint, ease of installation in tight areas
Silent
Silent and smooth operation
Flexible
Ease of integration with all access control equipment through its electromagnetic lock (GL-1200)
Products in this Series
GL-1000
GL-1100
- Arm:
* 32 mm 304 Stainless Steel
- Uni-Directional Operation
- Manual Movement
- Lock Mechanism:
* Manual Lock with key
GL-1200
- Arm:
* 32 mm 304 Stainless Steel
- Uni-Directional Operation
- Manual Movement
- Lock Mechanism:
* Electromagnetic Lock
* Compatible with Various Access Control Equipment

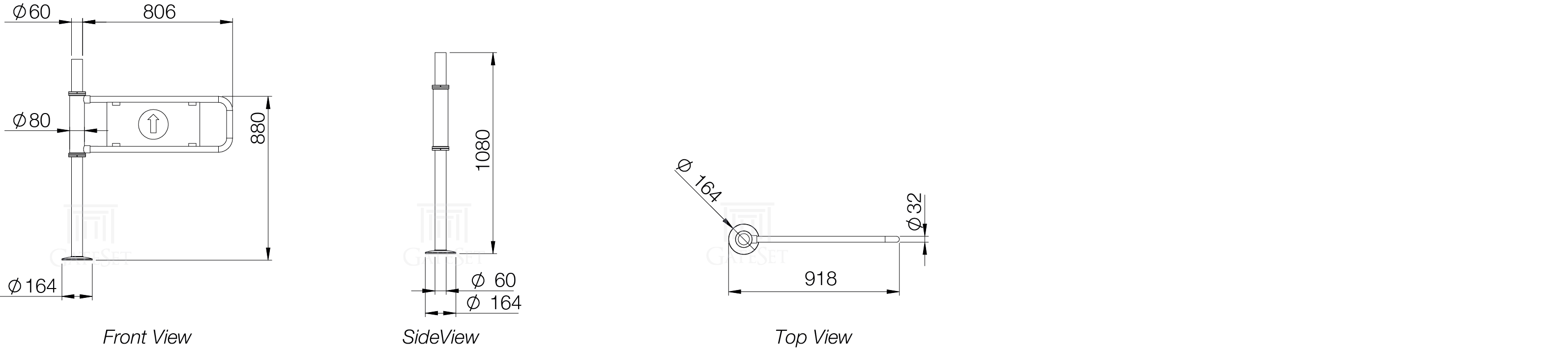

Drawings and Dimensions
Technical Specifications
GL-1000 Series
| MATERIAL - MAIN BODY | 304 grade stainless steel, polished finishing |
| MATERIAL - SWING ARM | Steel profile frame with 32 mm diameter |
| TREATMENT - OTHER PARTS | All other parts are coated against corrosion |
| DIMENSIONS (mm) | 918 x 164 x 1080 (WxLxH) |
| SWING ARM LENGTH (mm) | 800 |
| OPERATING VOLTAGE | GL-1000 / GL-1100: None |
| GL-1200: 115-240 V AC / 24 V DC - 50-60 Hz | |
| OPERATING TEMPERATURE | -20°C / +70°C |
| ACCESS CONTROL | GL-1000: None, free passage only in one direction |
| GL-1100: Physical lock with manual key | |
| OPERATIONAL MODE | GL-1200: Granting access with 180 KG holding force electromagnetic lock. Easy integration with all kind of access control equipment |
| AUTO CLOSE | Arm will return to center position automatically |
| OPERATION SAFETY | Electrical and mechanical safety for all component. To avoid injuries, |
| all corners and sides are rounded | |
| ELECTRICAL FAILURES | In an emergency case, main mechanism released and unlocked automatically. Turnstile would be free to open to manually in order to ensure fast evacuation. (Applied for GL-1200 only) |
| CERTIFICATION | ISO 9001:2015 |
| WARRANTY | 2 Years |
