GFB7000 FIXED BOLLARD
gfb7000-manual-fixed-bollard 360

Hover mouse on product for 3D view

Click for 3D view

MANUAL AND FIXED BOLLARDS
BARRIERS

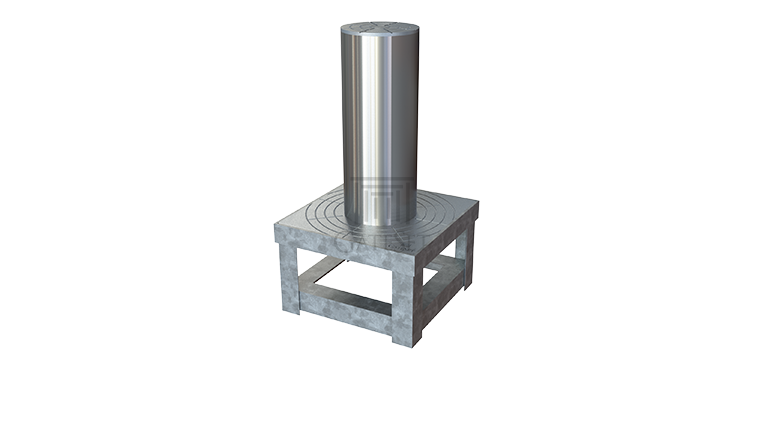

GFB7000 Series

GateSet GFB7000 Series Fixed Bollards are designed to provide permanent blockage of vehicle access in areas where medium to high security is required. With its strong underground infrastructure GFB7000 Series Fixed bollards delivers substantial impact resistance to prevent vehicle penetration both in case of hostility and accidence. Manufactured to provide total outlook coherence with GateSet GSB7000 Series Automatic Rising Bollards, GFB7000 Series Fixed Bollards is the ideal solution for permanent vehicle access prevention.

Optional Accessories
LED Striped Top Cover
LED Striped Top Cover

Patterned Steel top cover with LED stripe is available to enhance barrier visibility

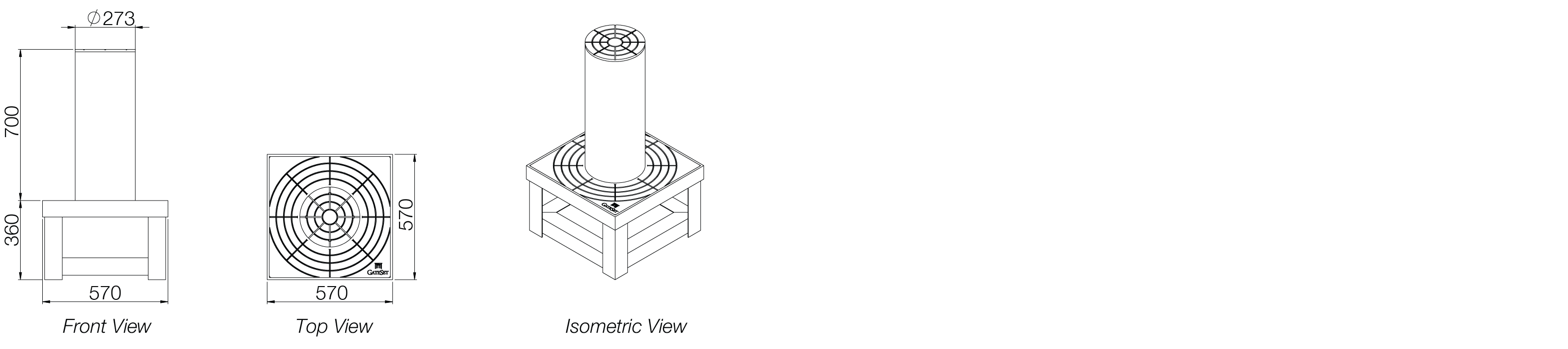

Drawings and Dimensions
Blocker
Blocker

Subject to change depending on design or project needs without prior notice

Technical Specifications
GFB7000 Fixed Bollard
TYPE Static
CORE BOLLARD DIAMETER 273 mm
OBSTACLE HEIGHT 700 - 900 mm
CORE THICKNESS 10 + 2 mm Steel Core
MATERIAL 10 mm ST52 Steel Core, Finished by 2 mm Stainless Steel Sleeve (304 Grade Standard)
INSTALLATION TYPE Shalow Mounted
MANHOLE 10 mm Cast Aluminum Manhole and Top Cover
VISIBILITY ENHANCEMENT Integrated LED Stripe (optional)
CERTIFICATION ISO 9001:2015
WARRANTY 2 Years
