GSB6000 HYDRAULIC RISING BOLLARD

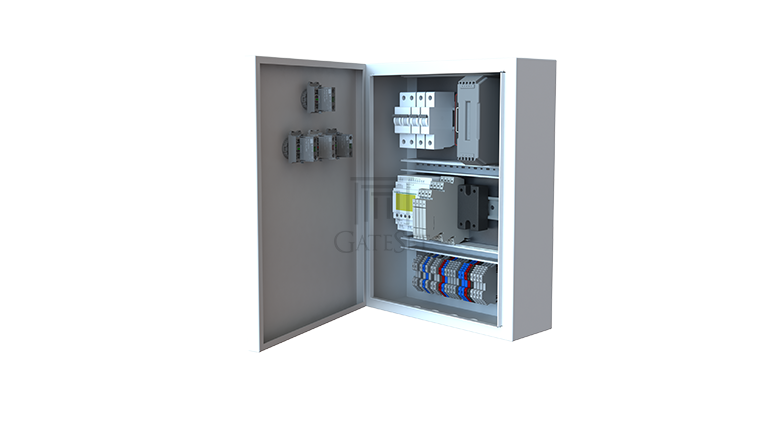

hydraulic-control-cabinet
ELECTRONIC CONTROL CABINET

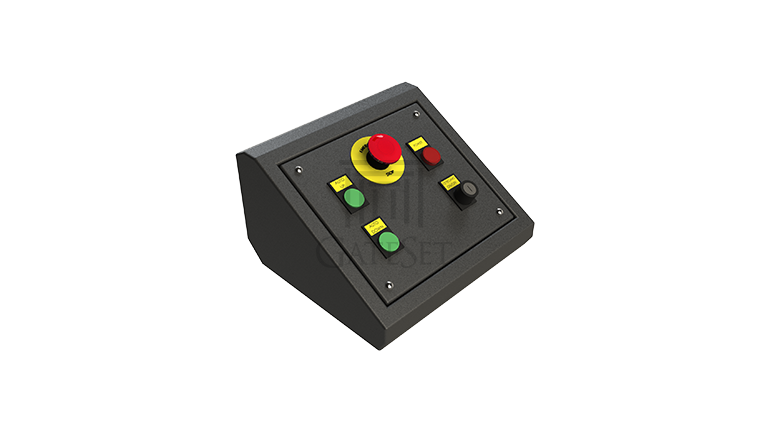

control-keyboard
REMOTE CONTROL KEYBOARD

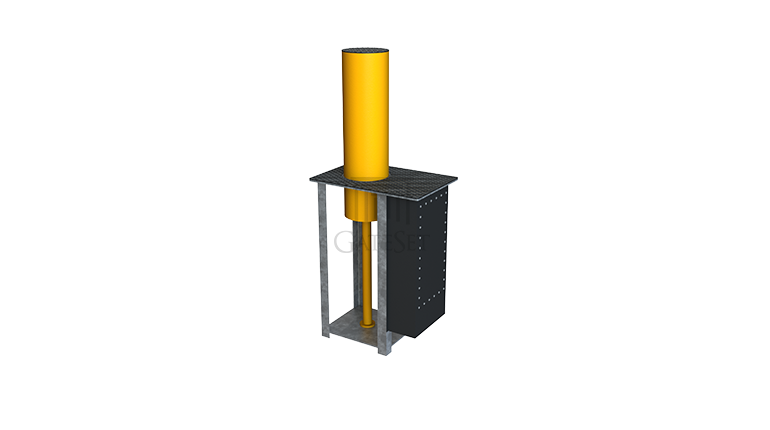

gsb6000-series-hydraulic-rising-bollard
GSB6000 HYDRAULIC RISING BOLLARD
gsb6000-series-hydraulic-rising-bollard 360

Hover mouse on product for 3D view

Click for 3D view

AUTOMATIC RISING BOLLARDS
BARRIERS

GSB6000 Economic Series

GateSet GSB6000 Series Hydraulic Rising Bollards Systems are designed to provide secure solutions for vehicle access control and regulation of city traffic. State of the art internally incorporated hydraulic power pack presents silent and smooth operation, with ease of installation and maintenance. GSB6000 Series Bollards are applicable in areas where frequent and heavy duty usage is required at moderate to high level of security, providing solid protection, while maintaining its aesthetic line thanks to its continuously evolving modern design.

Usage Areas
Access Control

Military Sites
Government Offices
Police Headquarters
Research Centers
Embassies
Airports
Industrial Areas
Sensitive Sites (Subject to Ram Attacks)

Featured Characteristics
Cutting Edge

State-of-the-art internal hydraulic power pack design with maximum reliability.

Efficient

Ease of maintenance and installation combined with smooth and silent operation, thanks to internal hydraulics and modular case design.

Cost-Effective

Budget friendly solution for projects with financial constraints.

Heavy Duty

Suitable for intense usage at high frequency access control points, supporting 5,000+ movements in a consecutive fashion, a total 10,000+ movement per day.

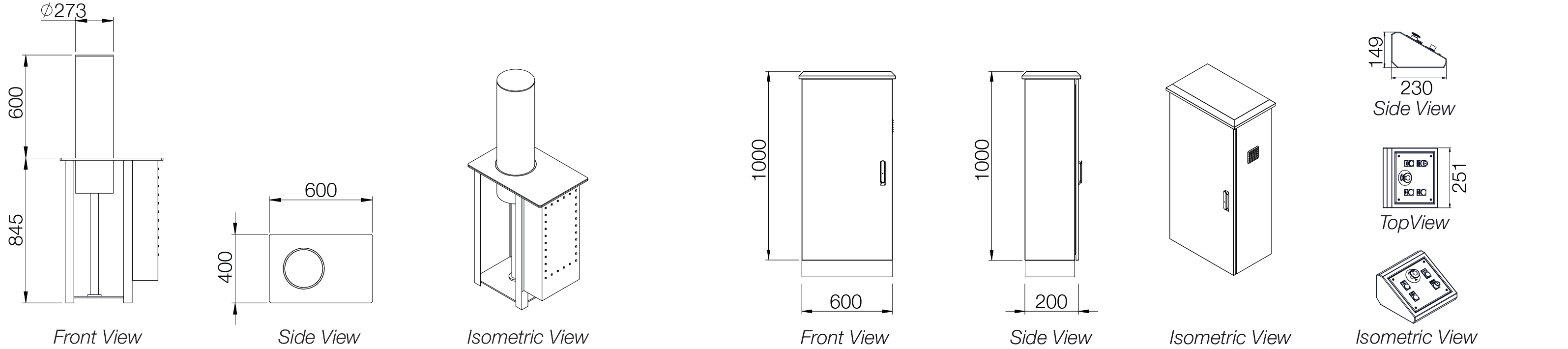

Drawings and Dimensions
Bollard
Bollard

REMARKS
a- Obstacle Height: GSB6060: 600, GSB6070: 700
b- Underground Case Depth:GSB6060: 845, GSB6070: 945

* Above cabinet measurements are for an outdoor cabinet for standard three group configuration. Subject to change depending on design or project needs without prior notice

Technical Specifications
DRIVE Internally Incorporated Hydraulic
DRIVE POWER 25 Bar Average, 40 Bar Maximum
CYLINDER DIAMETER  273 mm
OBSTACLE HEIGHT  500 to 700 mm
CYLINDER THICKNESS  5 mm
MATERIAL Electrostatic Powder Coated 5 mm Steel Core (Standard)
  304 Grade 5 mm Steel Core (Optional)
OUTER CASE DIMENSIONS  400 x 600 x 845 mm (W x L x H) for 600 mm Obstacle Height
BEARING / MANHOLE  8 mm Steel Bearing, 6 mm Patterned Sheet Steel Manhole and Top Cover
VISIBILITY ENHANCEMENT  Integrated LED Stripe (Optional)
RISING / FALLING TIME  5 - 6 Seconds (Adjustable)
POWER SUPPLY  220 V AC / 50-60 Hz. 550W
PROTECTION CLASS  IP 67
CONTROL PANEL Independent Controller Box for Simultaneous Operation of Grouped Bollards Microprocessor Based Controller
OPERATION TEMPERATURES  - 30 °C / + 65 °C
WORKING FREQUENCY  Heavy Duty with 5000 Movement/Day
POSITION DETECTION  1x Waterproof In-Core Proximity Sensor for Down Position (optional)
MANUAL OPERATION  Easy Release System with 12V DC Accumulator
OPERATION CONTROL  Compatible with any kind of Standard Interface
  Button Control, Remote Control, RFID - Proximity Card Reader, LR etc. (optional)
HYDRAULIC OIL No 37 (standard)
SAFETY EQUIPMENT  Emergency Stop Button (standard) Photocell, Loop Sensor (optional)
ACCESSORIES  Traffic Lights, Flashing Light, Siren, Warning Sign, Drainage Pump (optional)
CERTIFICATION  ISO 9001:2015
WARRANTY 2 Years
