UVS2000 Series / Undervehicle Surveillance System

UVS2000 Under Vehicle Surveillance System is a real-time visual data obtainment, storage and managing system with high-end components. UVS2000 provides high definition real-time imagery with 4K resolution, allowing the security personnel to inspect vehicles on their workstation monitors. The system also enables users to perform retrospective image comparison, by creating a profile for each vehicle thanks to seamless integration with PRS3500 Series License Plate Recognition System which is provided optionally on demand.

Usage Areas
Access Control

Military Sites
Government Offices
Police Headquarters
Research Centers
Embassies
Airports
Industrial Areas

Featured Characteristics
Camera

Basler Line Scan with 4096 pixels resolution, 26 kHz Line Rare, Monochrome Linear CMOS Sensor

Lens

Diagonal Fish-Eye 1:3.5 8 mm Lens with 3.5 Aperture Range and 180 degrees Angle of View

Illumination

120 W Weatherproof Infrared LED System

Sensor

Full automatic scanning with entry and exit loop detectors

Software

Enhanced zoom function and side-by-side comparison of current entrance image with last entrance image to detect anomalies.

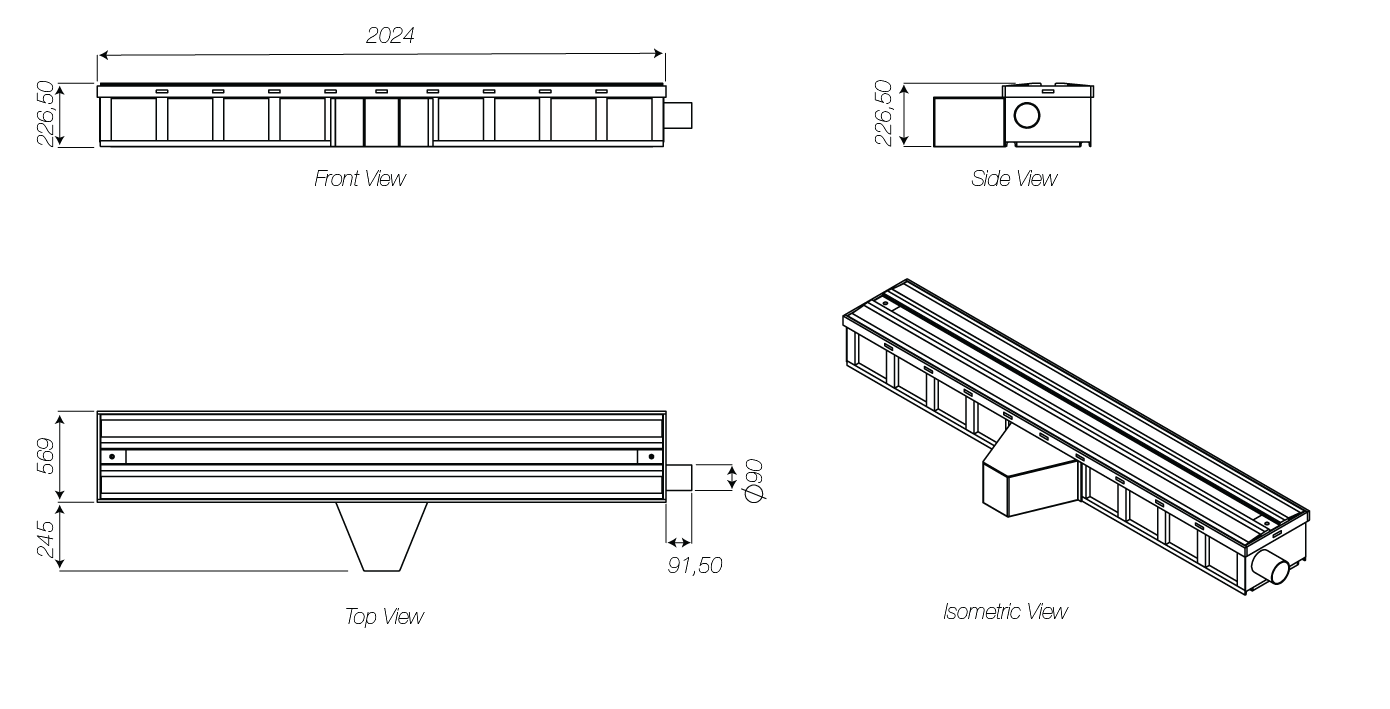

Drawings and Dimensions

*Subject to change depending on design or project needs without prior notice

Technical Specifications
uvs2000 undervehicle surveillance system
MATERIAL - TOP PLATE Aluminium Top Plate
MATERIAL - CASE Square Steel Case with 2 mm Thick Steel Sheet Covered
FINISHING Anticorrosive Coating with Two Component Surface Tolerant Epoxy Mastic (Jotamastic), Finished by Black Polyester
CASE TYPE Shallow Mount Under Vehicle Surveillance System
DIMENSIONS 1970x800x260 mm (WxLxH)
CAMERA Line Scan Monochrome 4096x1 Resolution
LINE RATE 26 kHz
OUTPUT IMAGE RESOLUTION Minimum 16 Mp Under Vehicle Imagery
PROTECTION Waterproof, Anti-fog, Liquid level switch
PROTECTION CLASS IP67
STORAGE 500,000 vehicle information storage memory
VEHICLE DETECTION Loop Detector
UNDER VEHICLE LIGHTING Illumination by Infrared LED 120 W
ACCESSORIES (optional) Control PC, Windows 10 License, 22” LCD Monitor, Power Control Panel and 3 kVA UPS
OPERATION VOLTAGE Operation Voltage 110-240V AC, 50-60HZ
OPERATION TEMPERATURE Operation Temperature -20°C / + 70°C, Storage Temperature -40°C / +70°C
CERTIFICATES ISO 9001:2015, CE and OHSAS Certified
WARRANTY 2 Years International Warranty
