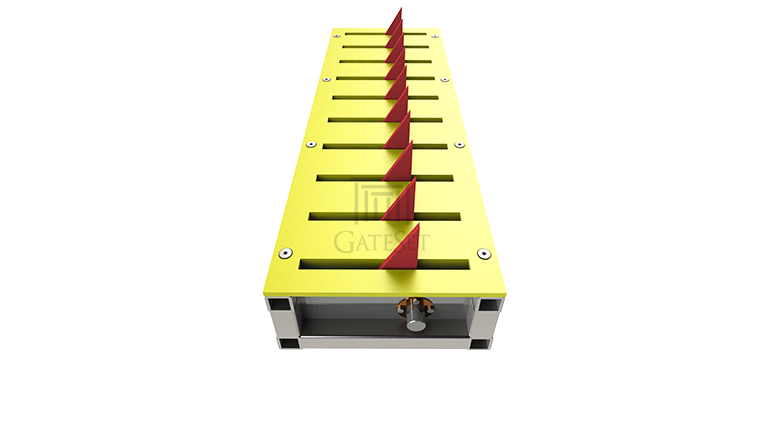

MKS Series

GateSet MKS Series Mechanical Tire Killer Systems provide directional traffic control by allowing traffic in one way, blocking traffic in opposite way by flatting vehicle tires with its closely placed spike structure. Manufactured from heavy gauge steel, MKS Series tire killers are robust products, bearing high axle loads and offering long product life.

Download Datasheet Drawings & Dimensions Mail About This Product

Usage Areas

Access Control

Military Sites
Government Offices
Police Headquarters
Research Centers
Embassies
Airports
Industrial Areas

Featured Characteristics

Flexible

Available as both 1 meter modules and in required lengths depending on project needs

Robust

Manufactured from heavy gauge steel

Secure

Spike structure with high durability bearings provides maximum endurance

Products in this Series

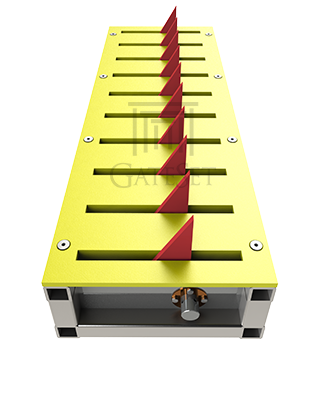

MKS

- Blocking Length / Modules:
* Blocking Length: Unlimited
* 1000 mm Module Length

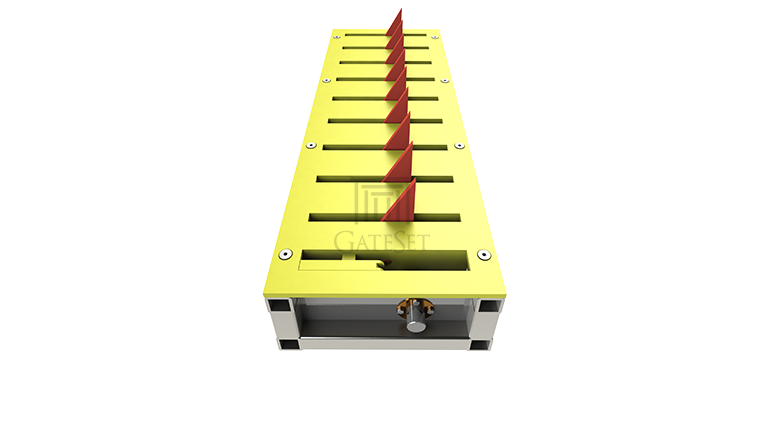

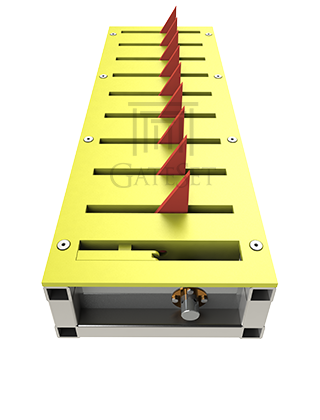

MKS-L

- Blocking Length / Modules:
* Blocking Length: Unlimited
* 1000 mm Module Length

- Latch-Down Operation:
* Single Point for 6000 mm Width
* Operation with Latch-Down Arm
* Auto Lock at Latch-Down Point

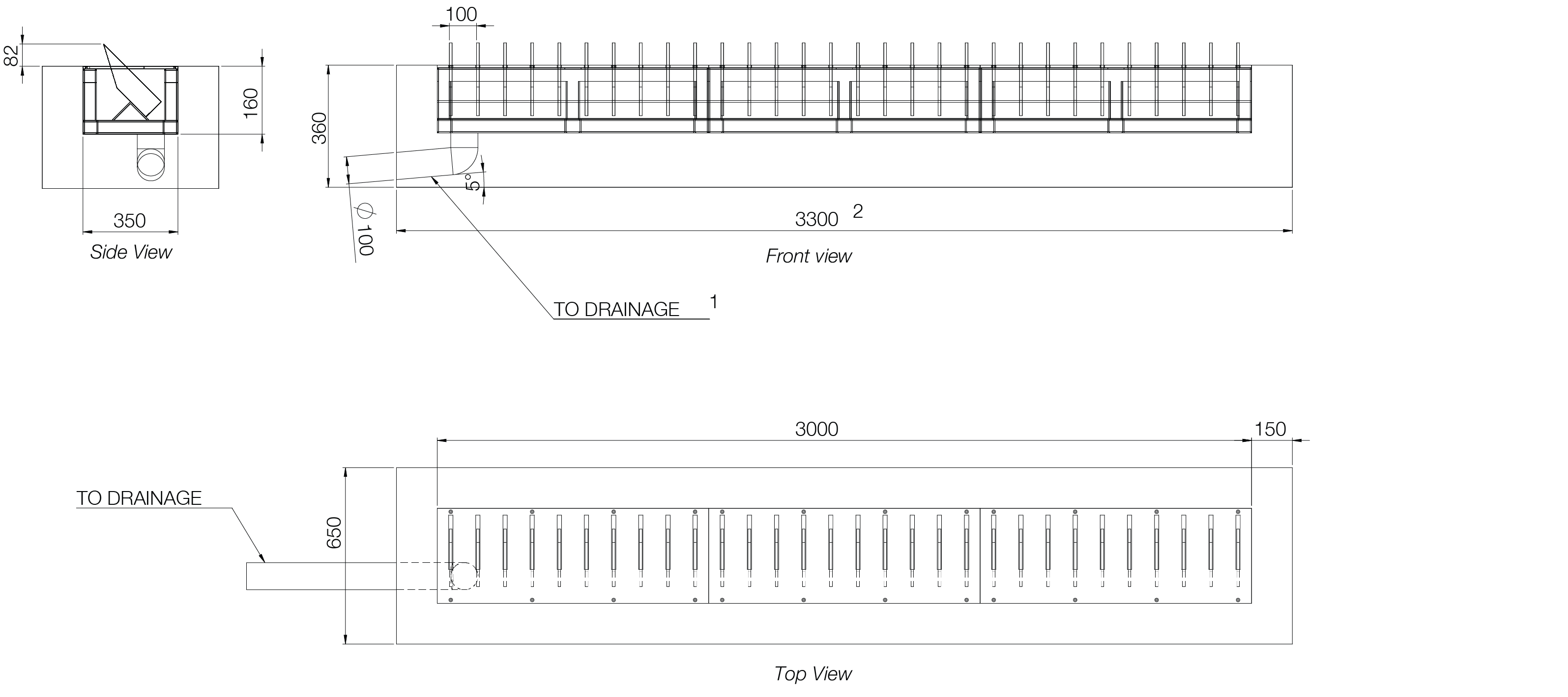

Drawings and Dimensions

MKS Series

REMARKS

1- Concrete Foundation with Drainage

2- Sample Dimensions for 3 meters with 3 pieces of 1 meter modules. Typically Total Module Length + 300

Technical Specifications

MKS Series

TOP PLATE	10mm ST52 Steel With Anti Corrosion Treatment
TIRE KILLER SPIKE	10mm ST52 Steel With Anti Corrosion Treatment
OPERATION	Independently moving teeth
SPIKE HEIGHT (in mm)	82
SPIKE CLOSURE (in mm)	100
RESISTANCE	15 Tons/Axle
SPIKE QUANTITY	10 Teeth / Meter
DIMENSIONS (in mm)	350 x 160
BLOCKING WIDTH	Intermediate Widths of Multitude of 1 meter (standard)
	One piece production depend on requirement (optional)
LATCH-DOWN	Optional Latch Down Mechanism
INSTALLATION	Embedded
CERTIFICATION	ISO 9001:2015
WARRANTY	2 Years
