TURNSTILES
GT-3600 Trio
PEDESTRIAN
ACCESS
CONTROL
ACCESS
CONTROL
PEDESTRIAN
ACCESS
CONTROL
ACCESS
CONTROL
TRIO
TURNSTILES

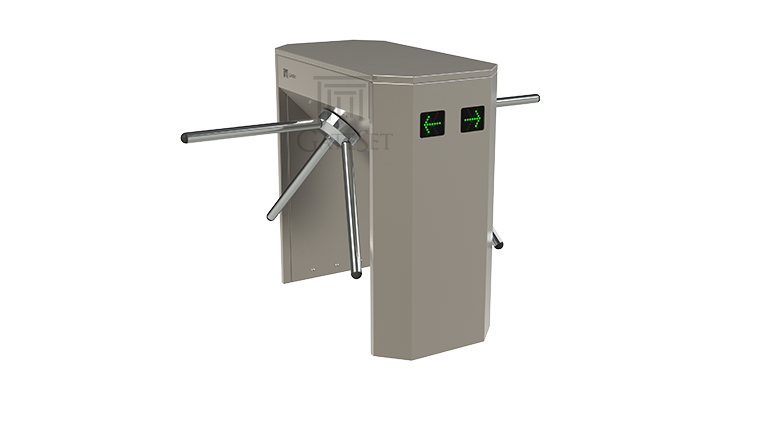

GT-3600 Series / Classic Line
GateSet Classic Line GT-3600 Series Trio Turnstiles combine high durability and aesthetic design, presenting an ideal solution for areas requiring moderate level of security. Suitable of functioning both indoor and outdoor, GT-3600 Series Turnstiles are manufactured from 1.5 mm 304 grade stainless steel. With proven ability to handle massive crowds, double leg case design of GT-3600 ensures robustness while presenting an efficient space usage with its double arm configuration.
Functional Highlights
Usage Areas
Access Control
Stadiums
Subways
Concert Halls
Sport Centers
Industrial Plants
Featured Characteristics
Elegant
Delicately processed Satin finish on 304 Grade Stainless Steel.
Reliable
Heavy duty mechanics controlled by reliable electronics, ensuring long product life with minimal maintenance requirement.
Robust
Case manufactured from 1.5 mm thick stainless steel for maximum resistance to high frequency usage
Safe
Optional drop arm function which provides fast passage and evacuation in case of emergency.
Flexible
Ease of integration with various access control systems thanks to its sophisticated electronic control card, which answers all demanded high-end functions
Products in this Series
GT-3600

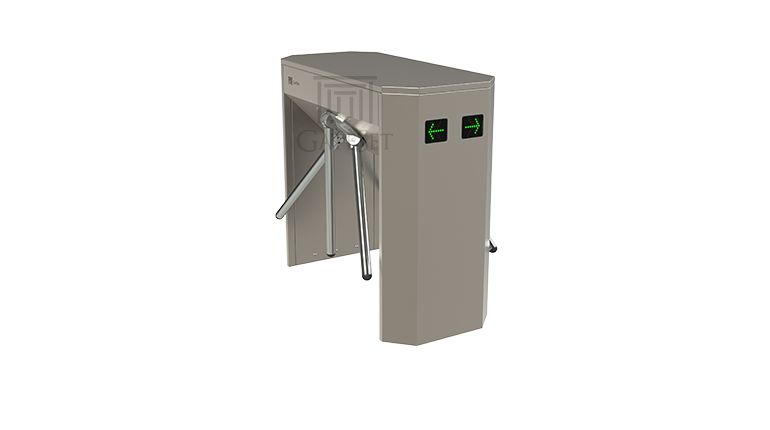

GT-3604
- Flat Top design provides ease of passage
- Recommended For:
* Handling 4,000+ users / day
- Emergency Drop Arm Feature
Optional Accessories
Passage Sensor
Sensors can be deployed on the turnstile in accordance with required functions such as real-time passage signal or unauthorized passage alarm.
Button Control Unit
Designed for ease of operation where security personnel is responsible of opening the turnstile for passengers; wired and remote options available.
Stand-Alone Card Reader
For sites without Access Control System, seamless stand-alone card reader is available.
Token Unit
Customizable token collector can be integrated to the turnstiles, system is adaptable to all token and coin types.

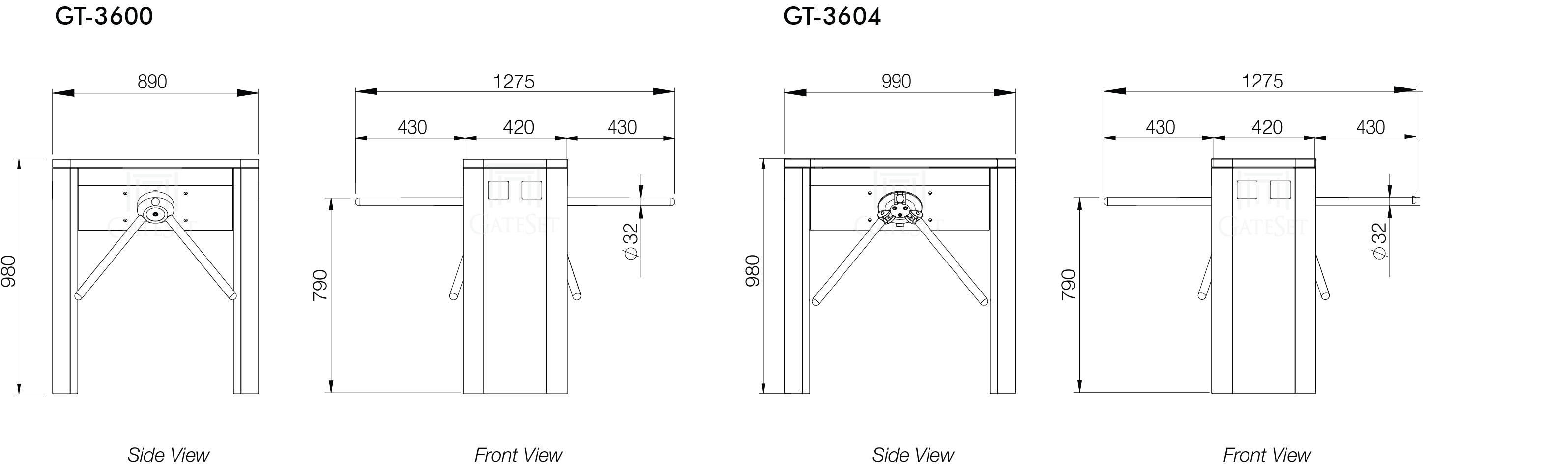

Drawings and Dimensions
* Subject to change depending on design or project needs without prior notice
Technical Specifications
GT-3600 Series
| MATERIAL - MAIN BODY | 1.5 mm 304 grade stainless steel, satin finishing |
| MATERIAL - ROTATING ARMS | 1.2 mm 304 grade stainless steel |
| TREATMENT - OTHER PARTS | All other parts are coated against corrosion |
| DIMENSIONS (mm) | GT-3600: 420 x 890 x 980 (WxLxH) |
| GT-3604: 420 x 890 x 980 (WxLxH) | |
| ARM LENGTH (mm) | 430 |
| OPERATING VOLTAGE | 115-240 V AC / 24V DC - 50-60 Hz |
| NOMINAL / MAX. CURRENT | 250 mA / 850 mA |
| POWER CONSUMPTION | 30 W |
| OPERATING TEMPERATURE | -20°C / + 70°C |
| ACCESS CONTROL | Microprocessor based control for granting access |
| Easy integration with all kind of access control equipment | |
| PASSAGE COUNTER | Integrated passage counter at Control Unit with 4 digits display. |
| CONTROL UNIT OUTPUTS | Entry/Exit/Coin Feedback Signals, 2x 12 V DC 0.3 A Power Outputs, Speaker Output |
| CONTROL UNIT INPUTS | Entry/Exit/Emergency Input Signals (Free Contact), RS232 Input |
| Passage Sensors and Token/Coin Unit Inputs (accessories are optional) | |
| CONTROL UNIT TEST BUTTONS | Entry/Exit/Emergency Operation Test and Reset Buttons integrated at Control Unit |
| POSITION DETECTION | Position detection with two separate micro-switches at mechanics |
| DROP ARM FEATURE | Dropping feature at each tripod arm providing ease of site evacuation at the case of emergency, in GT-3604 model |
| WARNING INDICATORS | Two separate warning indicators at front and rear sides of the gate. |
| Green arrow indicates “Passage Open”, Red cross indicates “Passage Closed” | |
| OPERATION MODE | 6 different operational modes available, programmed by means of software |
| DIRECTIONAL MODE | Unidirectional and Bidirectional operation features as “Only Entrance”, “Only Exit”, “Entrance and Exit” |
| ROTATION CONTROL | Self-centered and smooth operation by means of spring and hydraulic damper |
| CAPACITY | Handling more than 30 passengers per minute |
| DESIGN | While aesthetic classical case design provides good outlook, its modularity ensures ease of installation and part replacement |
| OPERATION SAFETY | Electrical and mechanical safety for all component. To avoid injuries, all corners and sides are rounded |
| ELECTRICAL FAILURES | Main mechanism released and unlocked automatically. Arms rotates free |
| CERTIFICATION | ISO 9001:2015, CE |
| WARRANTY | 2 Years |
