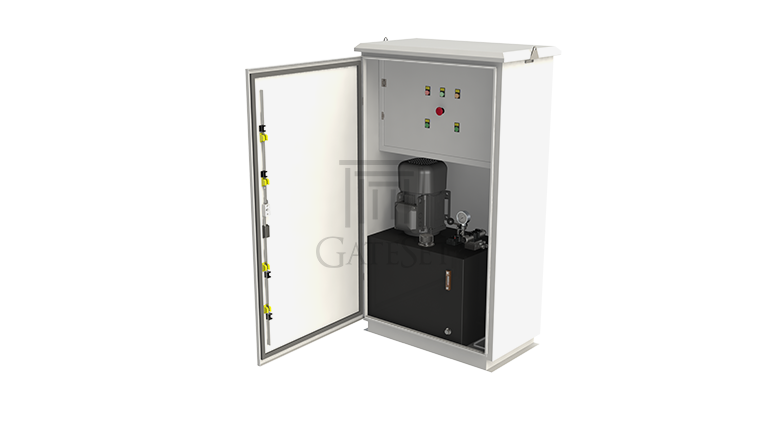

hydraulic-control-cabinet
HYDRAULIC CONTROL CABINET

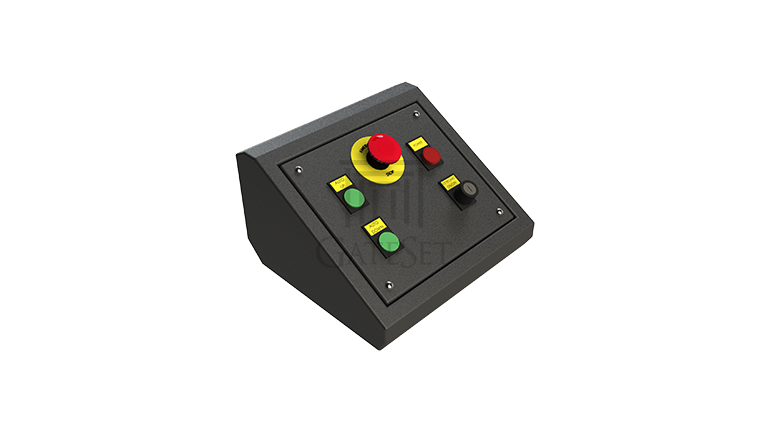

control-keyboard
REMOTE CONTROL KEYBOARD
gsr-x-road-blocker
GSR-X ROAD BLOCKER
gsr-x-road-blocker 360

Hover mouse on product for 3D view

Click for 3D view

ROAD BLOCKERS
BARRIERS

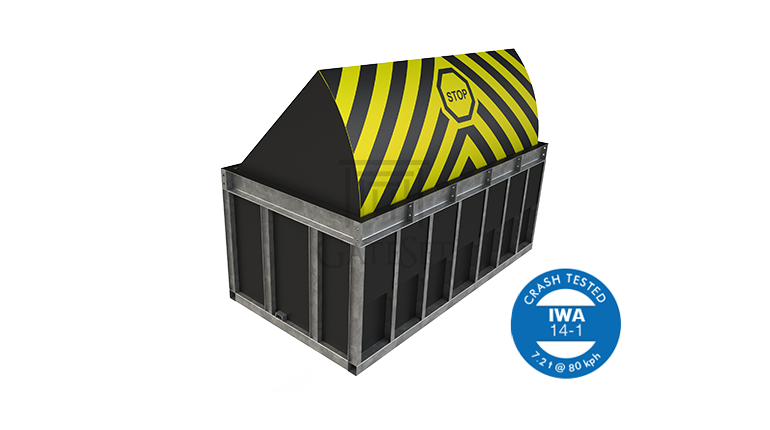

GSR-X Anti-Terror Series

GateSet GSR3100-X Series High Impact Rated Hydraulic Road Blockers are designed to meet ASTM M50 /IWA14-1 / PAS68 level impact resistance. The product has successfully passed a full scale crash test with zero penetration and maintained its operational functions after impact. Certified by IWA14-1:2013 standards, GSR-X Series Road Blockers provide maximum protection in areas that require high-level security through idealistic
design, high quality components and top grade material.

Crash Test (IWA 14-1:2013) Videos and Photos*

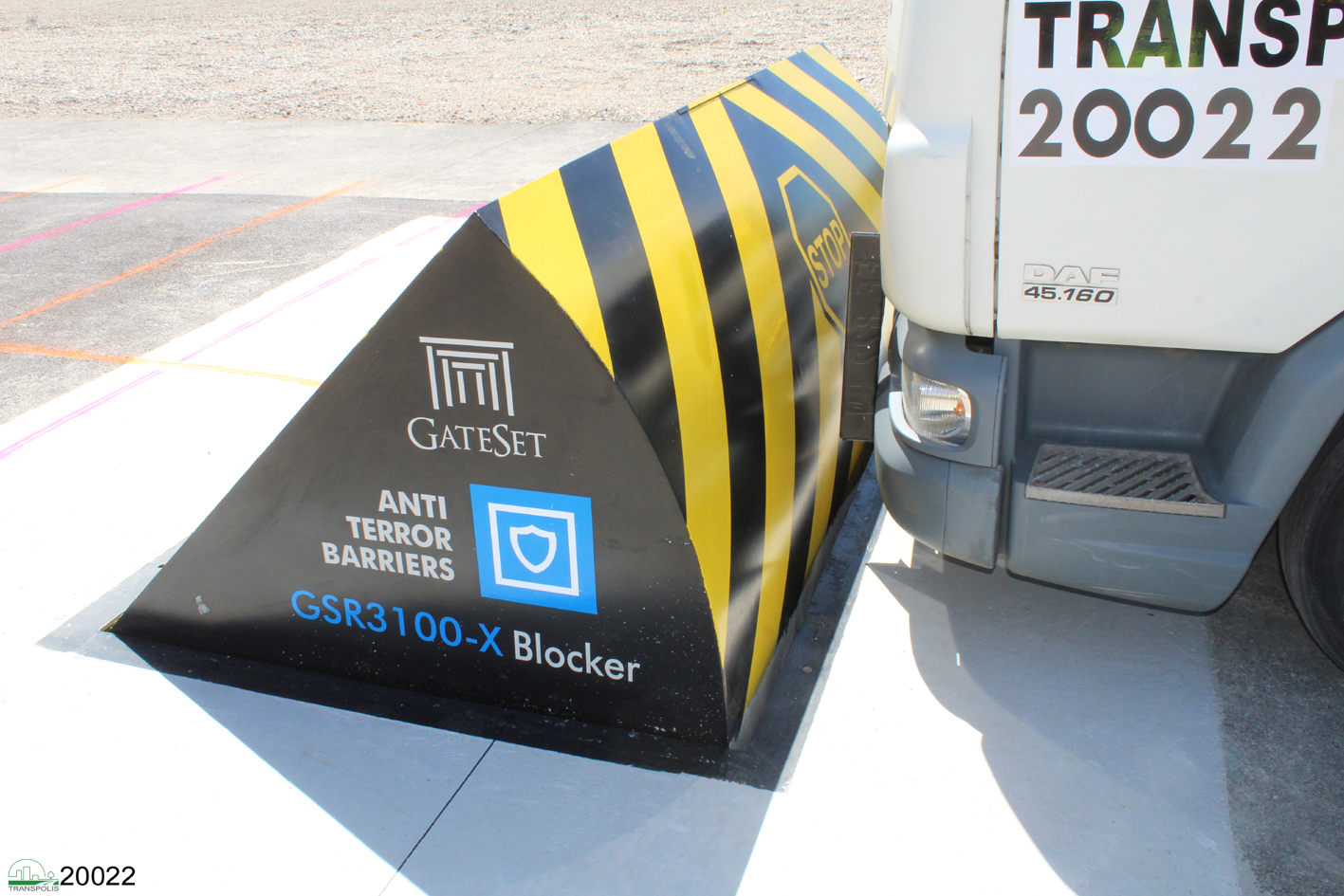

Before Test: Blocker ready for impact of 7.2 tons @ 80 kph
Before Test: Blocker ready for impact of 7.2 tons @ 80 kph

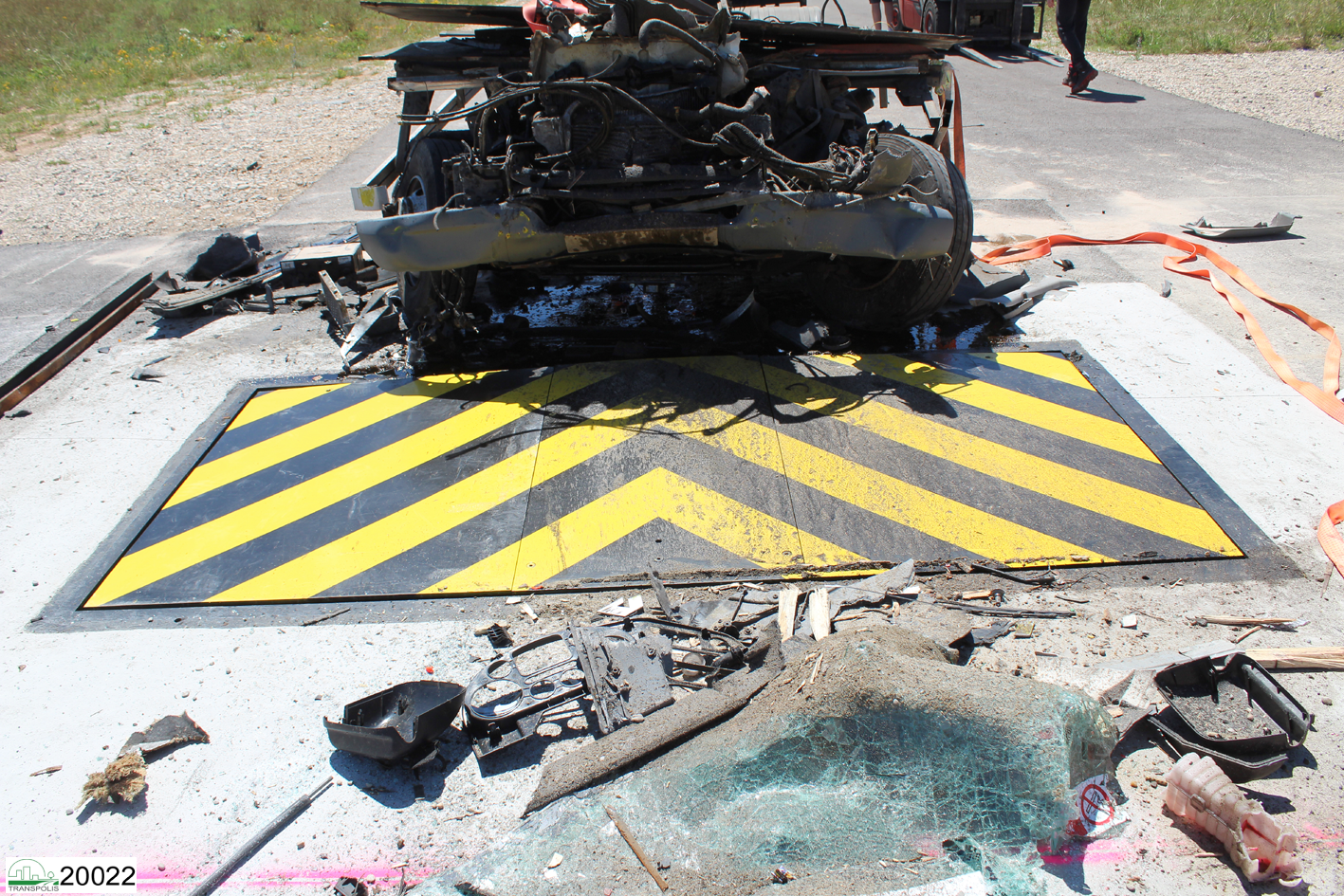

Truck Stopped: Negative (-1.18 mt) static and zero dynamic penetration
Truck Stopped: Negative (-1.18 mt) static and zero dynamic penetration

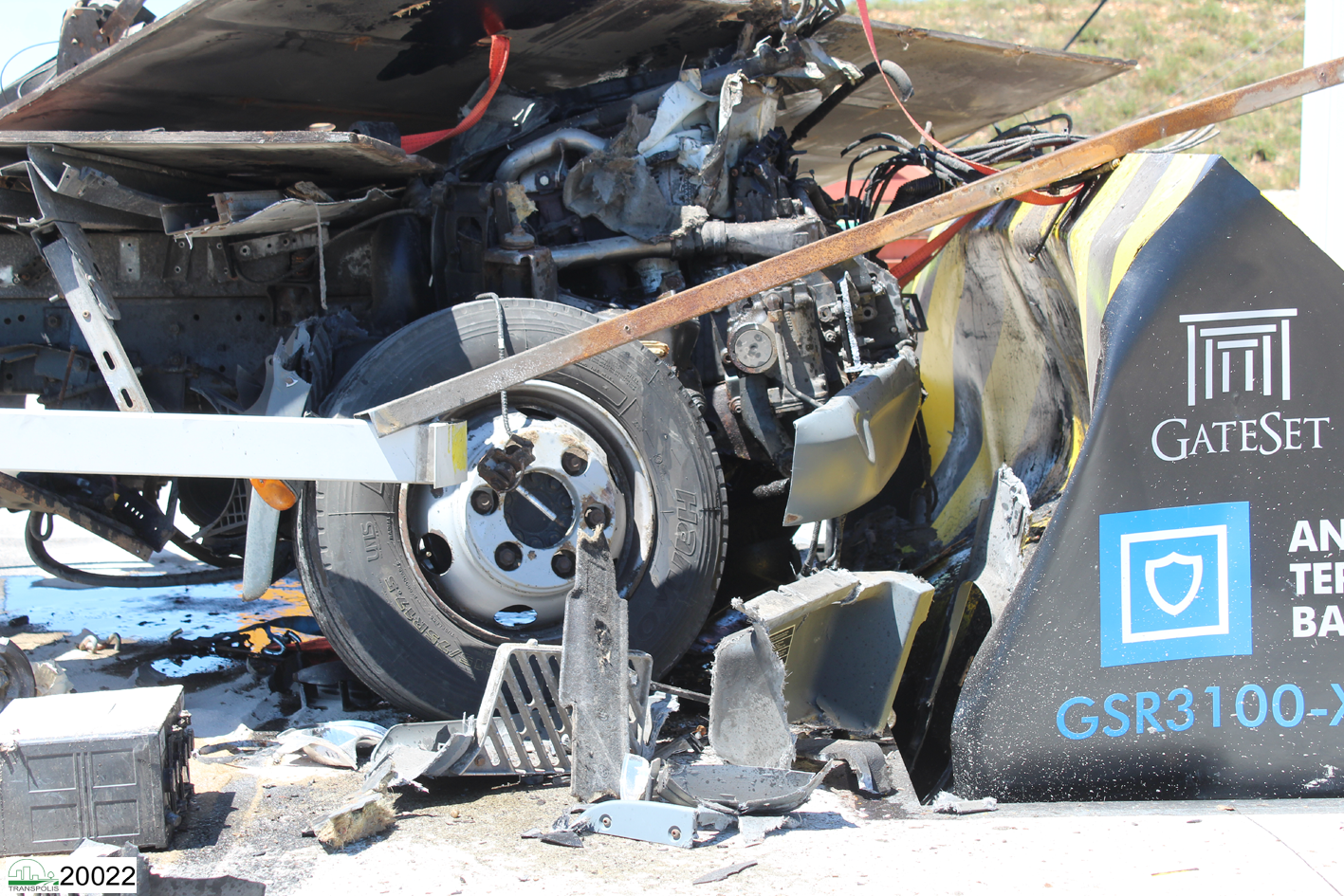

After Test: Successfully withstood the impact of 7.2 tons @ 80 kph
After Test: Successfully withstood the impact of 7.2 tons @ 80 kph

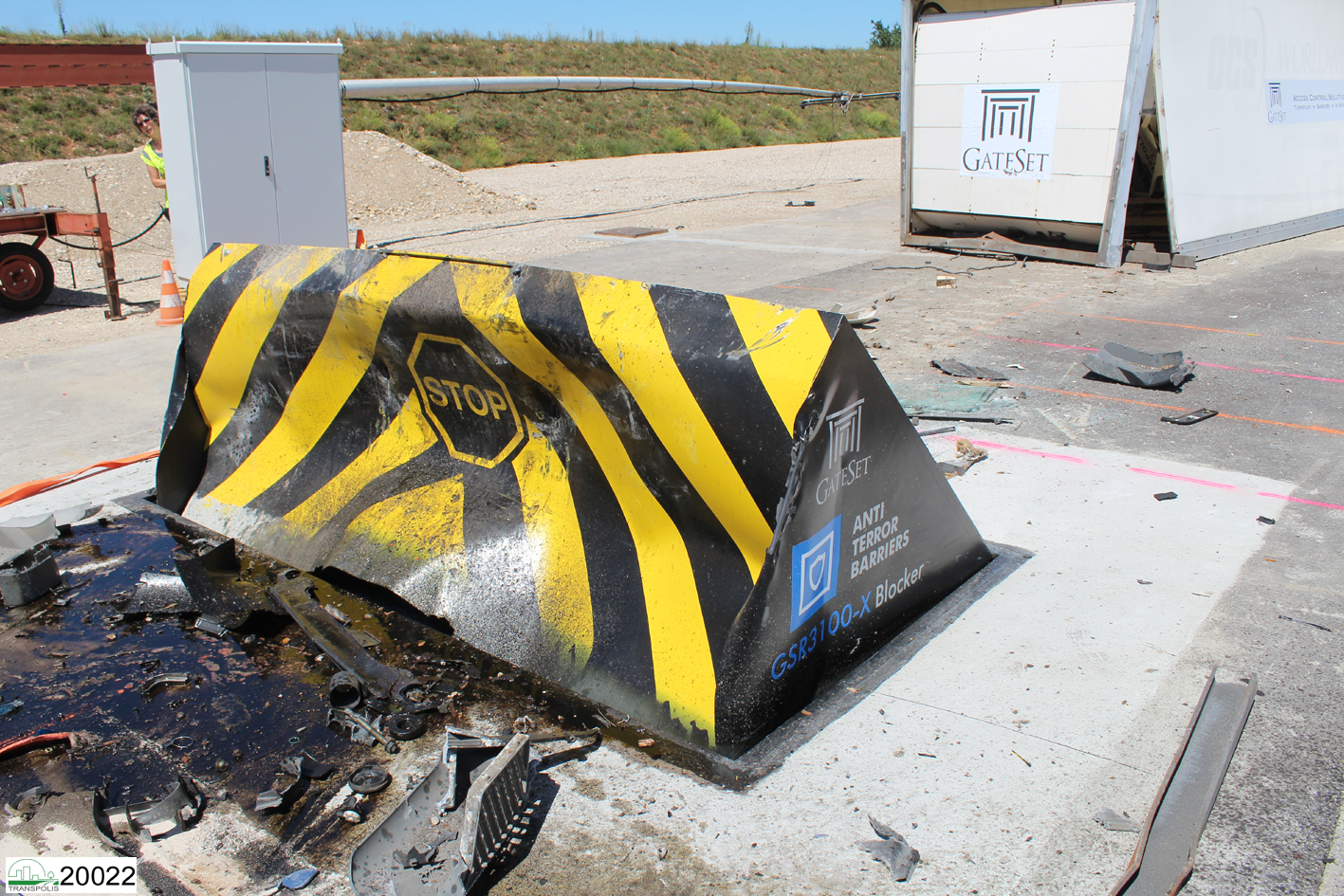

Continuity of Services: Blocker is intact and fully operable after impact
Continuity of Services: Blocker is intact and fully operable after impact

* Certificate and test videos are available on demand



Usage Areas
Access Control

Military Sites
Government Offices
Police Headquarters
Research Centers
Embassies
Airports
Industrial Areas

Featured Characteristics
Heavy Gauge Structure

Road Blocker Structure is made out of heavy gauge material. Underground case has a top frame made of NPU Steel. Inside the blocking wedge there are 6 sets of 3-up hinge bars, constructed from heavy duty Steel Plates, which support the structure against impact.

Heavy Duty Operation

Designed for intense industrial usage with 100% Duty Cycle, by powerful HPU, strong wedge and durable hydraulic lift piston. With its 5.5 kW powerful motor GSR-X Series are capable to complete up or down movement in 4-5 seconds without any limitation of daily usage.

Speed Control & Position Sensing

GSR-X Series possess two advanced features which extend the usage life of the system: Position Detection with weather proof proximity limit sensors which immediately stops the motor operation at limit points. Descending Speed at Closing and Opening Points which provides a silent operation.

High Impact Resistance

GSR3100-X Series is Crash Test Certified in accordance with IWA14-1:2013 standards with zero penetration, providing a direct equivalence with PAS 68 and a superior energy resistance compared to M50 P1 rating of US Standard ASTM F2656-07

Flexible and Reliable

Ease of integration with all access control equipment through its Schneider PLC unit which possesses 12 Inputs and 8 Outputs. All electronic equipment are Schneider branded with the highest reliability available in the market.

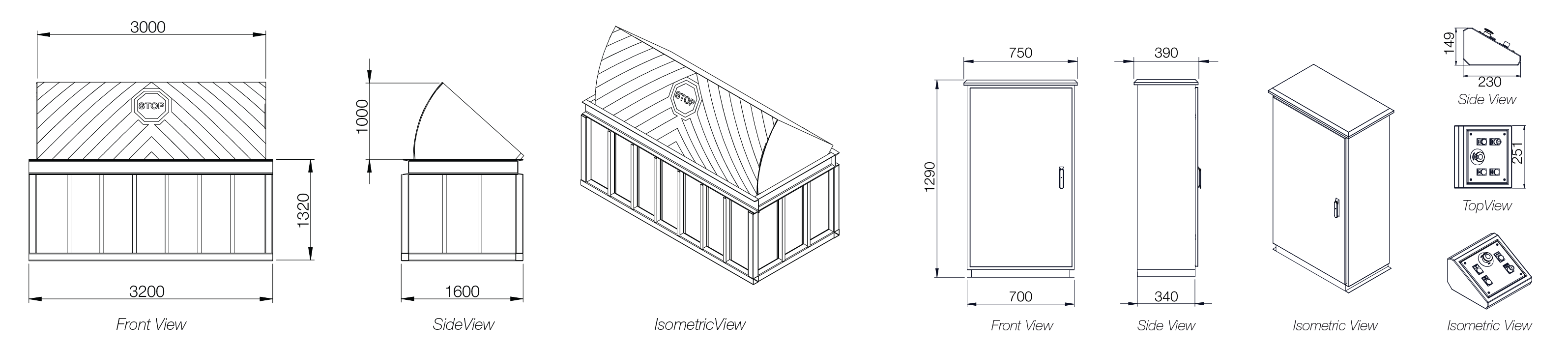

Drawings and Dimensions
Blocker
Blocker

* Dimensions are given for 3000 mm Blocking Width,1000 mm Obstacle Height and Control Cabinet with Standard Configuration.
   Subject to change depending on design or project needs without prior notice

Technical Specifications
BLOCKER PHYSICAL CHARACTERISTICS
BLOCKING LENGTH  3000 mm
OBSTACLE HEIGHT 1000 mm (standard)
CASE DIMENSIONS 3200 x 1600 x 1320 mm (for GSR3100-X)
BLOCKER UNDERGROUND CASE Heavy Gauge NPU Steel Profile Top Frame, Supported by vertical NPI Steel Profiles placed all along the perimeter of the case within intervals less than 500 mm
BLOCKING WEDGE Heavy Gauge NPU Steel, Supported by Vertical and Diagonal NPI Steel Profiles delicately finished with Heavy Gauge Steel Top Plate. 6 sets of 3-up hinge bars, constructed from Heavy Gauge Steel Plates
TREATMENT Highest Grade Corrosion Protection Primer finished with Polyester Outdoor Paint, Black Finishing with Yellow Stripes on the Circular Front Steel and Top Plate
OPERATIONAL CHARACTERISTICS
DRIVE Heavy Duty Hydraulic
DRIVE POWER Min 10 Bars / Max 120 Bars
RISING / FALLING TIME 4-5 Seconds (Adjustable)
SPEED CONTROL Slowing Down at Opening and Closing Limit Points
WORKING FREQUENCY 300+ Cycles/Hour
EMERGENCY OPERATION Rising in 1.5 Seconds (with optional EOK Kit)
POWER OUTAGE Capable to make up to 10 Complete Cycles without Electricity (with optional HPU2400 Kit)
POSITION DETECTION 2 Weather Proof Proximity Limit Sensors
MANUAL OPERATION Ascending and Descending with Manual Hand Pump
CONTROL CABINET PHYSICAL CHARACTERISTICS
CONTROL CABINET 2 mm Thick Steel, Electrostatic Thermal Painting for Anti-Corrosion Resistance
CABINET DIMENSIONS
Feature: Standard With HPU2400 Kit With EOK Kit HPU2400 + EOK Kit
Width: 390 mm 510 mm 510 mm 510 mm
Length: 750 mm 1250 mm 1310 mm 1310 mm
Height: 1290 mm 10500 mm 1250 mm 1250 mm
ELECTRICAL CHARACTERISTICS
ELECTRIC MOTOR 380 VAC / 50-60 Hz. 5.5 kW,
CONTROL PANEL Schneider PLC, Programmable for Integration with Various Systems
TEST PANEL Integrated Test Panel on Electric Cabin Cover with Phase Indicators
RESISTANCE CHARACTERISTICS
IMPACT RESISTANCE 7,200 kg at 80 km/h (ASTM M50 - PAS68 Equivalent)
AXLE LOAD RESISTANCE 35 Tons
PENETRATION LEVEL Static Penetration of Truck: -1.18 m (negative) - Dynamic Penetration of Truck: 0.0 m (zero)
CRASH TEST CERTIFICATION 14-1:2013 Blocker V/7200[N2A]/80/90:0.0
PROTECTION CLASS IP 65
OPERATING TEMPERATURE + 70 °C / - 15 °C
EQUIPMENT AND ACCESSORIES
HYDRAULIC PIPES 18/1.5 Connector - 1/2 Radius, 350 Bars Max Pressure,10 m Pipe Length (standard)
SAFETY EQUIPMENT Emergency Stop Button (standard), Front and Rear Loop Sensor (optional)
STANDARD ACCESSORIES Remote Control Keyboard (wired), Test Unit on ECU Panel, Oil Level and Temperature Indicator, Manometer
OPTIONAL ACCESSORIES Traffic Lights, Flashing Light, Siren, Warning Sign, Drainage Pump
CERTIFICATIONS AND WARRANTY
CERTIFICATIONS IWA 14-1:2013, ISO 9001:2015, CE
WARRANTY 2 Years
