GSR-SL SHALLOW MOUNT ROAD BLOCKER
hydraulic-control-cabinet

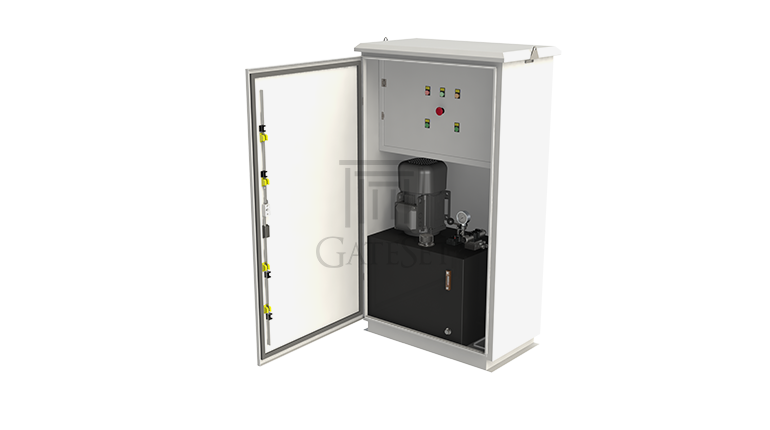

HYDRAULIC CONTROL CABINET
control-keyboard

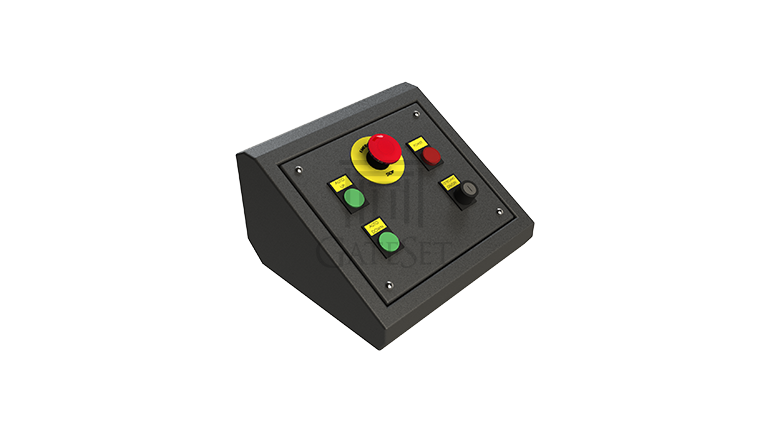

REMOTE CONTROL KEYBOARD
control-keyboard 360

Hover mouse on product for 3D view

Click for 3D view

ROAD BLOCKERS
BARRIERS

GSR-SL Anti-Terror Series

GateSet’s new release GSR-SL Series High Impact Rated Hydraulic Shallow Mount Road Blockers are designed to protect sensitive areas that require high level of security. The product has already proven its durability and stopping power through computer aided element analysis tests, providing compliance to IWA14-1:2013 / PAS68 / ASTM M40 standards at P1 level with N2B vehicle. With its powerful hydraulic unit, GateSet GSR-SL Series Shallow Mount Road Blockers provide reliable solutions for securing sensitive areas against ram attacks. Suitable for high frequency heavy duty operation, GSR-SL Series Road Blockers also provide easy and fast installation for projects with construction limits and time constraints.

Usage Areas
Access Control

Military Sites
Government Offices
Police Headquarters
Research Centers
Embassies
Airports
Industrial Areas

Featured Characteristics
Heavy Gauge Structure

Road Blocker Structure is made out of heavy gauge material. Underground case is 300 NPU Steel. Inside the blocking wedge there are 8 sets of 3-up hinge bars, constructed from 25x36 mm axle and 12 mm Steel Plates, which support the structure against impact.

Heavy Duty Operation

Designed for intense industrial usage with 100% Duty Cycle, by powerful HPU, strong wedge and durable hydraulic lift piston. With its 5.5 kW powerful motor GSR-SL Series are capable to complete up or down movement in 3-4 seconds without any limitation of daily usage.

Ease of Installation

Shallow mount design allows installation within a substantially shallow pit when compared to conventional road blockers. This provides a huge advantage for projects with construction constraints.

Speed Control & Position Sensing

GSR-SL Series possess two advanced features which extend the usage life of the system: Position Detection with weather proof proximity limit sensors which immediately stops the motor operation at limit points. Descending Speed at Closing and Opening Points which provides a silent operation.

High Impact Resistance

GSR-SL Series Blockers are designed by using the cutting-edge manufacturing computer technology to meet K8 level of DOS SD-STD-02.01 standards. Computer aided element tests have proved that GSR-SL Series withstands an impact force of 7,500 kg @ 65 km/h.

Flexible and Reliable

Ease of integration with all access control equipment through its Schneider SR2 A201BD PLC unit which possesses 12 Inputs and 8 Outputs. All electronic equipment are Schneider branded with the highest reliability available in the market.

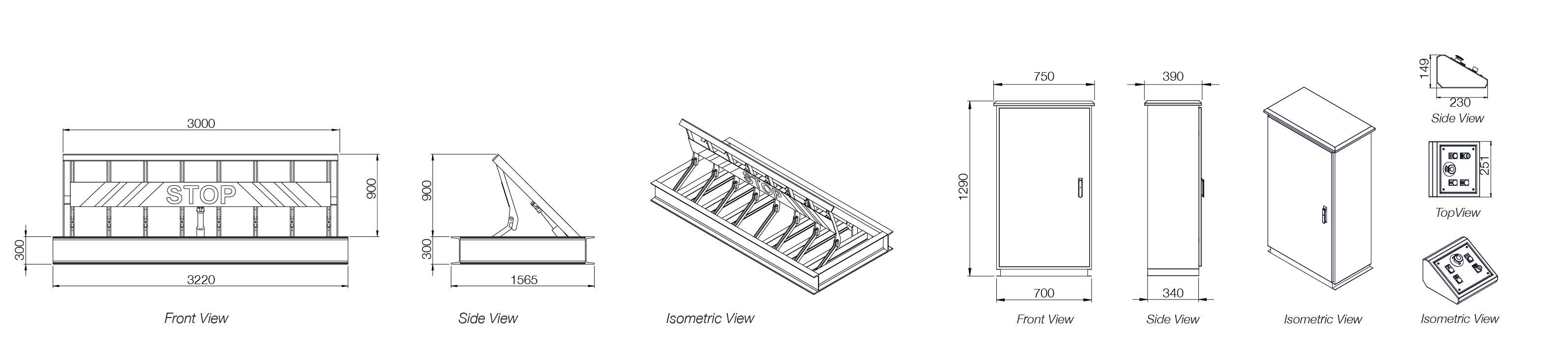

Drawings and Dimensions
Blocker
Blocker

* Dimensions are given for 3000 mm Blocking Width,1200 mm Obstacle Height and Control Cabinet with Standard Configuration.
   Subject to change depending on design or project needs without prior notice

Technical Specifications
BLOCKER PHYSICAL CHARACTERISTICS
BLOCKING LENGTH 3000 mm
OBSTACLE HEIGHT 900 mm (standard)
CASE DIMENSIONS 3220 x 1565 x 300 mm (for GSR3090-SL)
BLOCKER UNDERGROUND CASE Heavy Gauge 300 mm NPU Steel Profiles, Supported by horizontal 160 mm NPI Steel Profiles
BLOCKING WEDGE Heavy Gauge 12 mm Steel Plate, Supported by vertical 12 mm Steel Plates, 8 sets of 3-up hinge bars, with 25 mm Diameter 36 mm long axles
TREATMENT Two Component Surface Tolerant Epoxy Mastic Coating for Corrosion Protection (Jotamastic) and Painted with Polyester Outdoor Paint, Black Finishing with Yellow Stripes on the Circular Front Steel and Top Plate
CONTROL CABINET PHYSICAL CHARACTERISTICS
CONTROL CABINET 2 mm Thick Steel, Electrostatic Thermal Painting for Anti-Corrosion Resistance
CABINET DIMENSIONS
Feature: Standard With HPU2400 Kit With EOK Kit HPU2400 + EOK Kit
Width: 390 mm 510 mm 510 mm 510 mm
Length: 750 mm 1250 mm 1310 mm 1310 mm
Height: 1290 mm 1050 mm 1250 mm 1250 mm
OPERATIONAL CHARACTERISTICS
DRIVE Heavy Duty Hydraulic
DRIVE POWER Min 10 Bars / Max 120 Bars
RISING / FALLING TIME 3-4 Seconds (Adjustable)
SPEED CONTROL Slowing Down at Opening and Closing Limit Points
WORKING FREQUENCY 300+ Cycles/Hour
EMERGENCY OPERATION Rising in 1 Second (with optional EOK Kit)
POWER OUTAGE Capable to make up to 10 Complete Cycles without Electricity (with optional HPU2400 Kit)
POSITION DETECTION 2 Weather Proof Proximity Limit Sensors
MANUAL OPERATION Ascending and Descending with Manual Hand Pump
ELECTRICAL CHARACTERISTICS
ELECTRIC MOTOR 380 V AC / 50-60 Hz. 5.5 kW,
CONTROL PANEL Schneider SR2 A201BD PLC, Integration with Various Systems
TEST PANEL Integrated Test Panel on Electric Cabin Cover, Phase Indicators
RESISTANCE CHARACTERISTICS
IMPACT RESISTANCE 7,500 kg at 65 km/h
AXLE LOAD RESISTANCE 35 Tons
PROTECTION CLASS IP 65
OPERATING TEMPERATURE + 70 °C / - 15 °C
EQUIPMENT AND ACCESSORIES
HYDRAULIC PIPES 18/1.5 Connector - 1/2 Radius, 350 Bars Max Pressure, 10 m Pipe Length (standard)
SAFETY EQUIPMENT Emergency Stop Button (standard), Front and Rear Loop Sensor (optional)
STANDARD ACCESSORIES Remote Control Keyboard (wired), Test Unit on ECU Panel, Oil Level and Temperature Indicator, Manometer
OPTIONAL ACCESSORIES Traffic Lights, Flashing Light, Siren, Warning Sign, Drainage Pump, Touchscreen Control Keyboard
CERTIFICATIONS AND WARRANTY
CERTIFICATIONS ISO 9001:2015, CE
WARRANTY 2 Years
