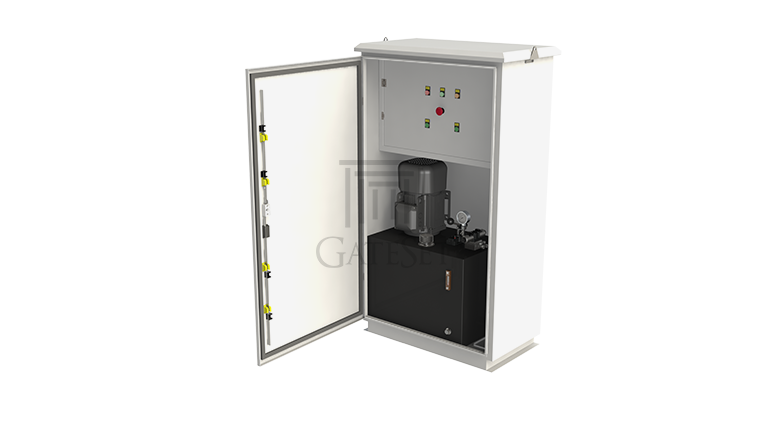

HYDRAULIC CONTROL CABINET

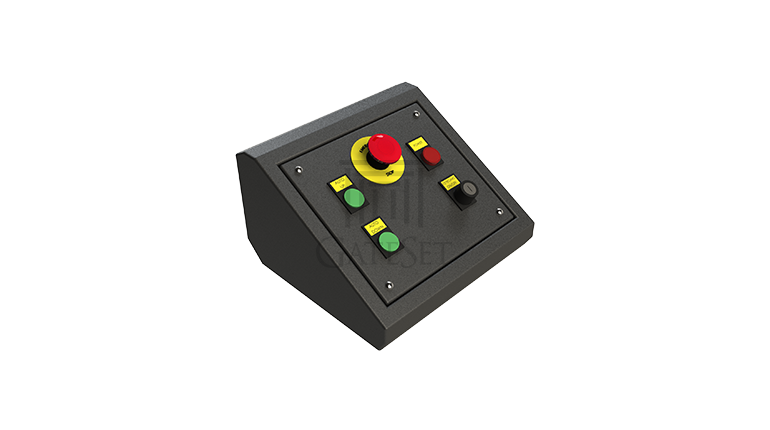

REMOTE CONTROL KEYBOARD

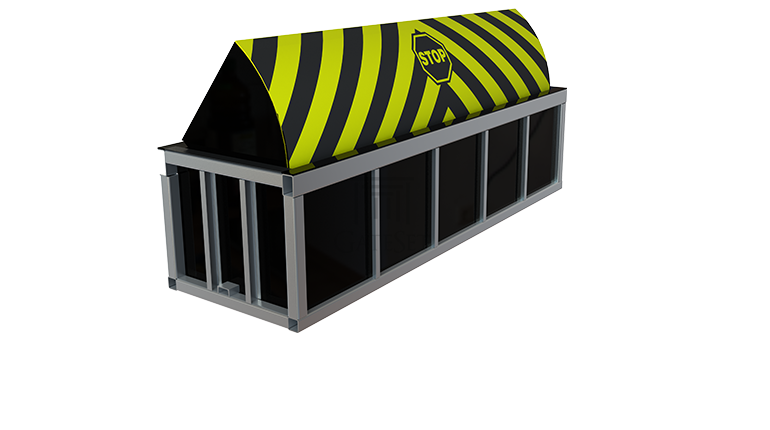

GSR ROAD BLOCKER
Hover mouse on product for 3D view
Click for 3D view
ROAD BLOCKERS
BARRIERS
GSR Anti-Terror Series
GateSet GSR Series High Impact Rated Hydraulic Road Blockers are designed to meet ASTM M50 / IWA14-1 / PAS68 level impact resistance. With its powerful hydraulic unit GateSet GSR Series Road Blockers provide reliable solutions for securing sensitive areas against ram attacks. Suitable for high frequency heavy duty operation, GSR Series Road Blockers provide solid protection in areas that require high security, while maintaining its aesthetic line thanks to its continuously evolving modern design.
Usage Areas
Access Control
Military Sites
Government Offices
Police Headquarters
Research Centers
Embassies
Airports
Industrial Areas
Featured Characteristics
Heavy Gauge Structure
Road Blocker Structure is made out of heavy gauge material. Underground case is 4mm 100x100 square profile. Inside the blocking wedge, A bars with 100 mm thick nails presses the case at up and down position, enhancing impact resistance and axle load bearing capacity.
Heavy Duty Operation
Designed for intense industrial usage with 100% Duty Cycle, by powerful HPU, strong wedge and durable hydraulic lift piston. With its 4 - 5.5 kW powerful motor GSR Series are capable to complete up or down movement in 3-4 seconds without any limitation of daily usage.
Speed Control & Position Sensing
GSR Series possess two advanced features which extend the usage life of the system: Position Detection with weather proof proximity limit sensors which immediately stops the motor operation at limit points. Descending Speed at Closing and Opening Points which provides a silent operation.
High Impact Resistance
GSR Series Blockers are designed by using the cutting-edge manufacturing computer technology to meet K12 level of DOS SD-STD-02.01 standards. Computer aided element tests have proved that GSR Series withstands an impact force of 7,500 kg @ 80 km/h.
Flexible and Reliable
Ease of integration with all access control equipment through its Schneider SR2 A201BD PLC unit which possesses 12 Inputs and 8 Outputs. All electronic equipment are Schneider branded with the highest reliability available in the market.

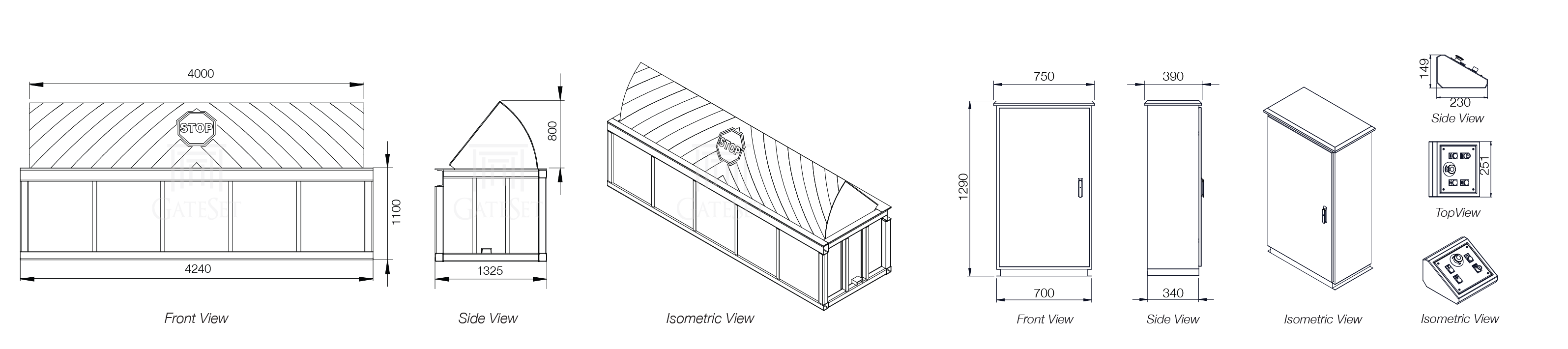

Drawings and Dimensions
Blocker
* Dimensions are given for 4000 mm Blocking Width,800 mm Obstacle Height and Control Cabinet with Standard Configuration.
Subject to change depending on design or project needs without prior notice
Technical Specifications
BLOCKER PHYSICAL CHARACTERISTICS
| BLOCKING LENGTH | Intermediate Lengths from 2000 mm to 6000 mm |
| OBSTACLE HEIGHT | 800 mm (standard). Intermediate Heights are provided from 500 mm to 1000 mm |
| CASE DIMENSIONS | Case Width: 1325 mm, Case Depth: 1100 mm (for standard 800 mm Obstacle Height) |
| BLOCKER UNDERGROUND CASE | Heavy Gauge 100x100x4 Square Profiles, 120 mm NPU Steel Horizontal Bottom Bar, Supported by vertical 100 mm NPI Steel Beams, Covered from all sides with 2 mm thick Steel Plates |
| BLOCKING WEDGE | Heavy Gauge 100x100x4 Square Profiles, 6 mm Thick Front Circu-lar Plate, Supported by A Shaped Supports made out of 100 mm NPI Steel, Steel Top Plate Thickness 12 mm |
| TREATMENT | Two Component Surface Tolerant Epoxy Mastic Coating for Corrosion Protection (Jotamastic) and Painted with Polyester Outdoor Paint, Black Finishing with Yellow Stripes on the Circular Front Steel and Top Plate |
CONTROL CABINET PHYSICAL CHARACTERISTICS
| CONTROL CABINET | 2 mm Thick Steel, Electrostatic Thermal Painting for Anti-Corrosion Resistance | ||||||||||||||||||||
| CABINET DIMENSIONS |
|
OPERATIONAL CHARACTERISTICS
| DRIVE | Heavy Duty Hydraulic |
| DRIVE POWER | Min 10 Bars / Max 120 Bars |
| LIFT PISTON VARIATIONS | 1 Heavy Duty Lifting Piston for Blocking Lengths from 2000 mm up to 3000 mm, 2 Heavy Duty Lifting Pistons for Blocking Lengths from 3000 mm to 6000 mm |
| RISING / FALLING TIME | 3-4 Seconds (Adjustable) |
| SPEED CONTROL | Slowing Down at Opening and Closing Limit Points |
| WORKING FREQUENCY | 300+ Cycles/Hour |
| EMERGENCY OPERATION | Rising in 1.5 Seconds (with optional EOK Kit) |
| POWER OUTAGE | Capable to make up to 10 Complete Cycles without Electricity (with optional HPU2400 Kit) |
| POSITION DETECTION | 2 Weather Proof Proximity Limit Sensors |
| MANUAL OPERATION | Ascending and Descending with Manual Hand Pump |
ELECTRICAL CHARACTERISTICS
| ELECTRIC MOTOR | 380 VAC / 50-60 Hz. 4 to 5.5 kW, |
| CONTROL PANEL | Schneider SR2 A201BD PLC, Programmable for Integration with Various Systems |
| TEST PANEL | Integrated Test Panel on Electric Cabin Cover with Phase Indicators |
RESISTANCE CHARACTERISTICS
| IMPACT RESISTANCE | 7,500 kg at 80 km/h (K12 - PAS68 Equivalent) |
| AXLE LOAD RESISTANCE | 35 Tons |
| PROTECTION CLASS | IP 65 |
| OPERATING TEMPERATURE | + 70 °C / - 15 °C |
EQUIPMENT AND ACCESSORIES
| HYDRAULIC PIPES | 18/1.5 Connector - 1/2 Radius, 350 Bars Max Pressure,10 m Pipe Length (standard) |
| SAFETY EQUIPMENT | Emergency Stop Button (standard), Front and Rear Loop Sensor (optional) |
| STANDARD ACCESSORIES | Remote Control Keyboard (wired), Test Unit on ECU Panel, Oil Level and Temperature Indicator, Manometer |
| OPTIONAL ACCESSORIES | Traffic Lights, Flashing Light, Siren, Warning Sign, Drainage Pump |
CERTIFICATIONS AND WARRANTY
| CERTIFICATIONS | ISO 9001:2015, CE |
| WARRANTY | 2 Years |
