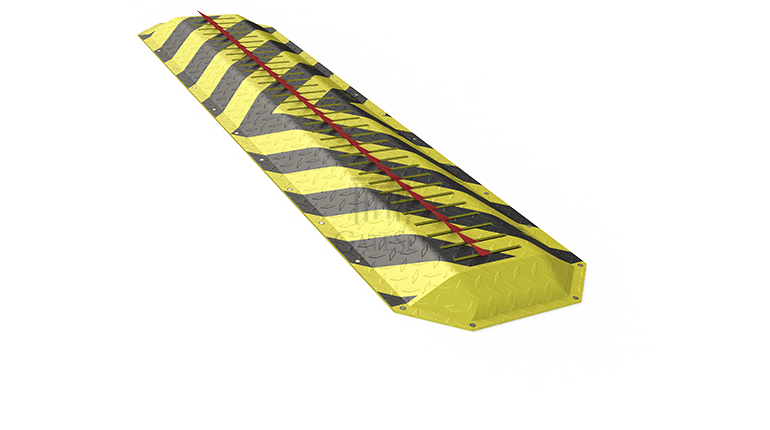

GSK Series

GateSet GSK Series Surface Mount Mechanical Tire Killers provide directional traffic control by allowing traffic in one way and blocking traffic in opposite way by flatting vehicle tires with its closely placed spike structure. GSK Series comes in manual operation with latch-down mechanism and it is upgradable to electromechanical motorized operation. Manufactured from heavy gauge steel, GSK Series Tire Killers are robust products, bearing high axle loads and offering long product life.

Usage Areas
Access Control

Military Sites
Government Offices
Police Headquarters
Research Centers
Embassies
Airports
Industrial Areas

Featured Characteristics
Flexible

Available as both 1 meter modules and in required lengths depending on project needs

Robust

Manufactured from heavy gauge steel

Secure

Spike structure with high durability bearings provides maximum endurance

Products in this Series

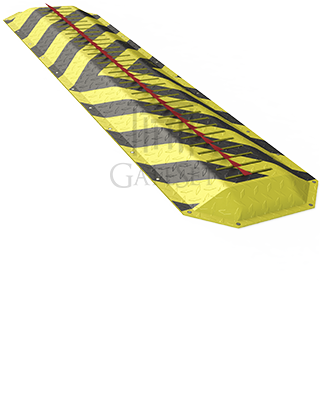

GSK

- Blocking Length / Modules:
* Blocking Length: Unlimited
* 1000 mm Module Length

GSK

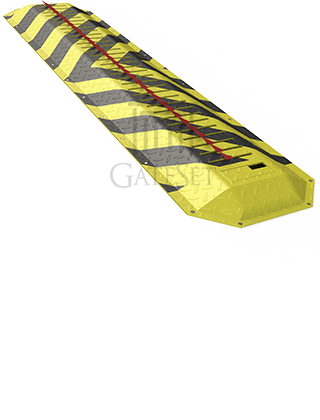

GSK-L

- Blocking Length / Modules:

* Blocking Length: Unlimited

* 1000 mm Module Length

- Latch-Down Operation:

* Single Point for 6000 mm Width

* Lock Features Up and Down Positions

GSK-L

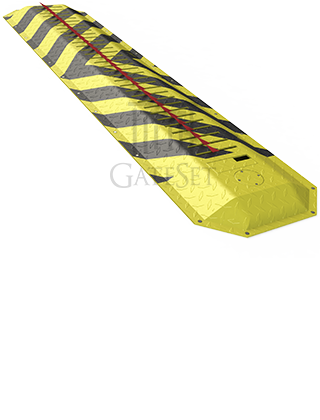

GSK-M

- Blocking Length / Modules:
* Blocking Length: Unlimited
* 1000 mm Module Length
* Motorized Movement

GSK-M

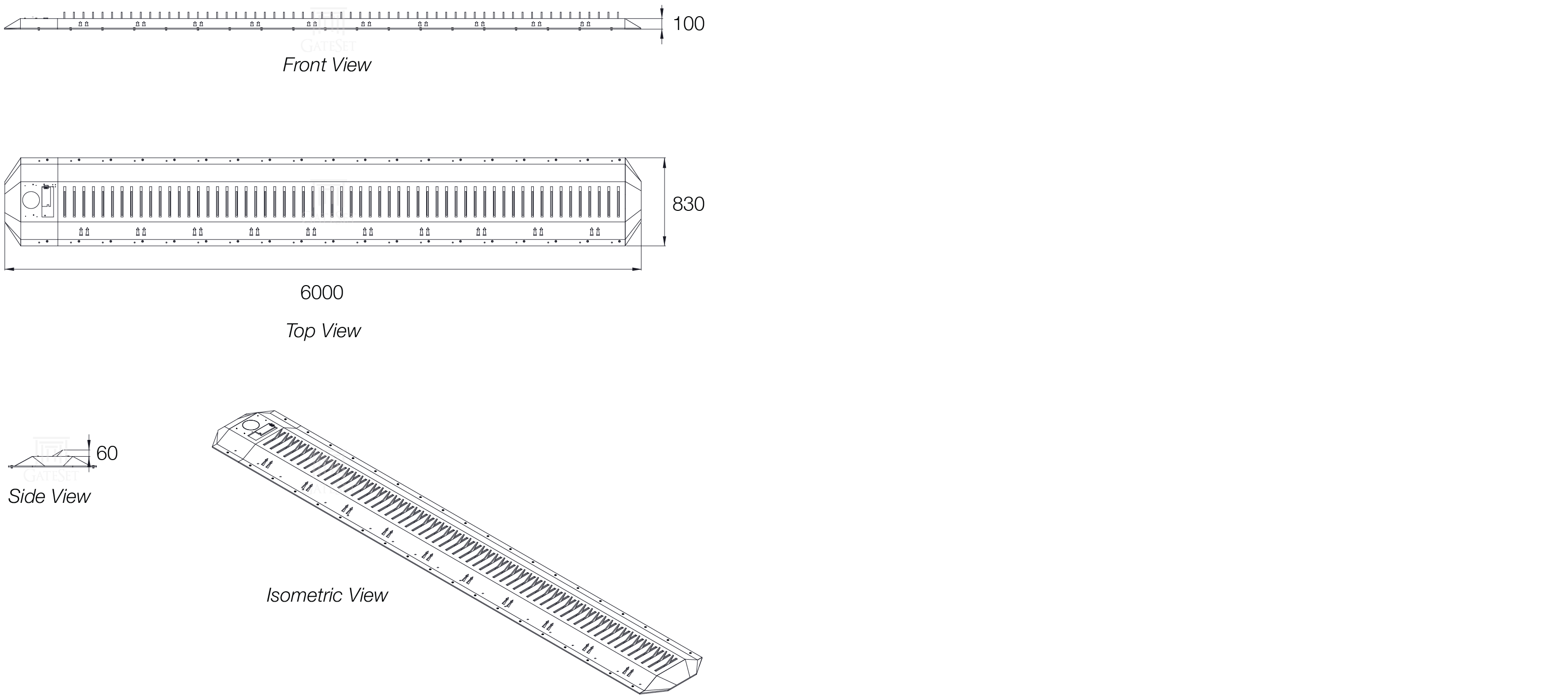

Drawings and Dimensions
GSK Series
GSK Series
Technical Specifications
GSK Series
TOP PLATE 10mm ST52 Steel
TIRE KILLER SPIKE 10mm ST52 Steel
TREATMENT Two Component Surface Tolerant Epoxy Mastic Coating for Corrosion Protection (Jotamastic) and Painted with Polyester Outdoor Paint
OPERATION Motorized or manual, independently moving teeth. Optional latch-down mechanism for motorized or manual operation
SPIKE HEIGHT (in mm) 60
SPIKE CLOSURE (in mm) 90
RESISTANCE 10 Tons/Axle
SPIKE QUANTITY  10 Teeth / Meter
DIMENSIONS (in mm) 6000 x 830
BLOCKING WIDTH Intermediate Widths of Multitude of 1 meter (standard)
  One piece production depend on requirement (optional)
POWER INPUT** 220 V AC / 50-60 Hz single phase
MOTOR** 0.55 kW, controlled by electronic control board
OPENING/CLOSING TIME** 2-3 seconds adjustable
OPERATING TEMPERATURES** -25°C / +70°C
LATCH-DOWN* Latch down mechanism with lock points up and down
INSTALLATION  Surface mount
MOTORIZED OPERATION Upgradeable system design for future motorized operation requirement
CERTIFICATION ISO 9001:2015
WARRANTY 2 Years

*GSK1000-L Series
**GSK1000-M Series
