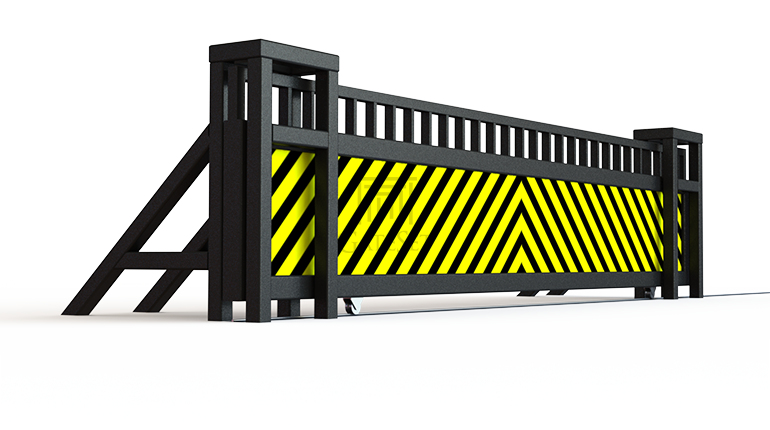

GSC-S Anti-Terror Series
Built for long life usage, GateSet GSC-S Series Motorized Sliding Gates are designed specifically to protect sensitive areas. With its powerful motor, GSC-S Series Motorized Sliding Gates are Suitable for high frequency heavy duty operation, applicable in areas where frequent and heavy duty usage is required at a high level of security, providing solid protection.
Usage Areas
Access Control
Military Sites
Government Offices
Police Headquarters
Research Centers
Embassies
Airports
Industrial Areas
Featured Characteristics
Robust
Thanks to its solid structure with fine-crafted material, provides durability in various harsh environmental conditions such as extreme colds, high temperatures, sand and rain storms
Tailor-Made
With the project-specific approach of GateSet engineering department, site requirements are carefully investigated and ideal solutions are provided with exact required dimensions
Adaptable
Presents case-oriented solutions with different operational choices such as sliding, telescopic sliding and swing movement, depending on site conditions

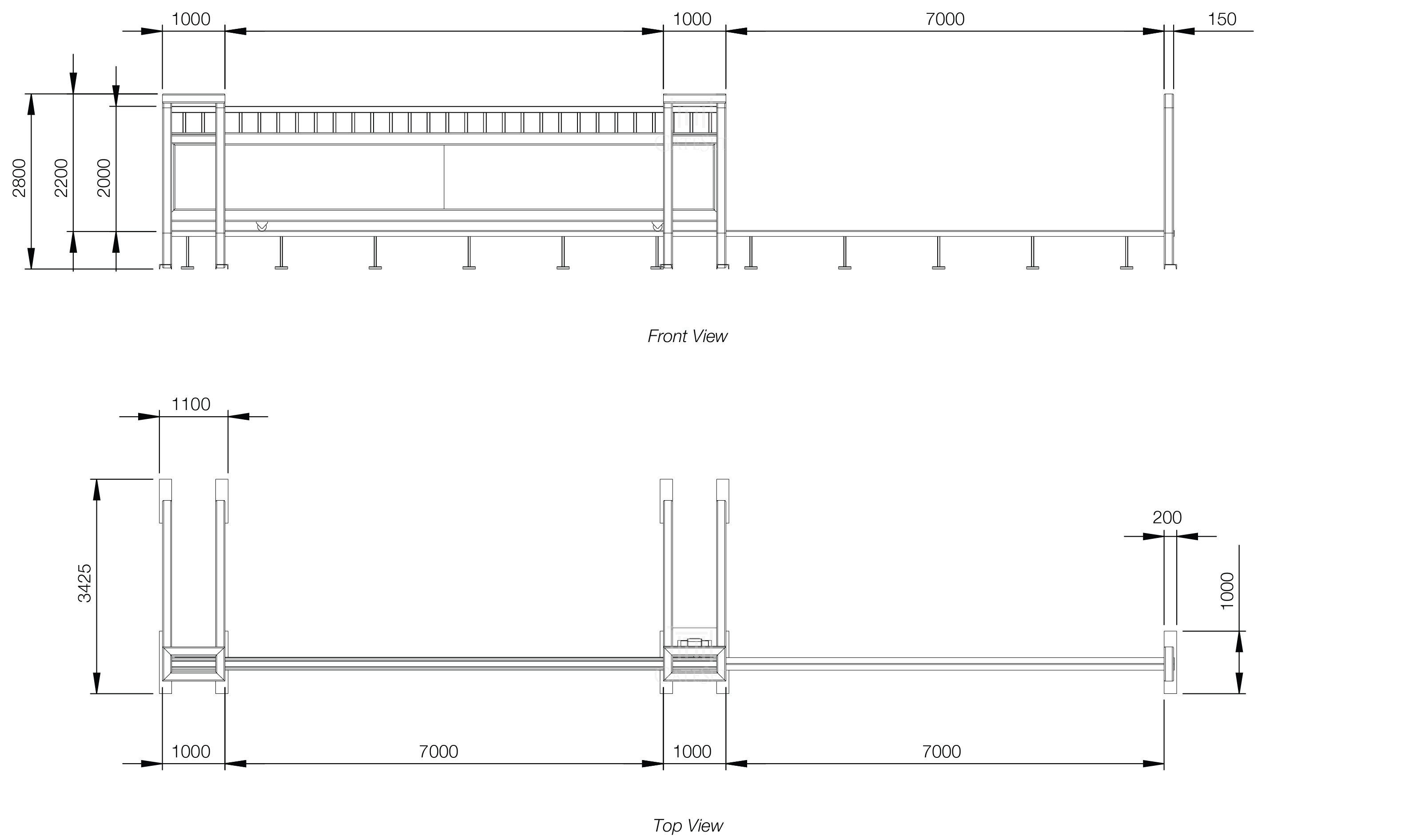

Drawings and Dimensions
GSC-S Series
Subject to change depending on design or project needs without prior notice
Technical Specifications
GSC-S Series
| MAIN BODY | 200 x 200 x 16 mm Steel Square Profile Main Frame |
| 100 x 100 x 3 mm Steel Square Profile Truss Structure | |
| 100 x 50 x 3 mm Filled Steel Frame Vertical Infills | |
| COATING | Anticorrosive Coating with Two Component Surface Tolerant Epoxy Mastic (Jotamastic), Finished by Black Polyester with Yellow Stripes |
| (Different RAL Colors Available on Demand) | |
| DIMENSIONS (mm) | 16150 x 3425 x 3805 mm (WxLxH) for GSC7200 |
| MOTOR DIMENSIONS | 540 x 251 x 575 mm (WxLxH) |
| PASSAGE WIDTH/HEIGHT (mm) | From 3000 to 8000 / From 1000 to 3000 |
| OPERATION | Motorized Movement with BFT SP 3500 |
| POWER SUPPLY | 380-400 V AC 50/60 Hz - 550 W |
| SPEED | 10 m/min |
| MAX LEAF WEIGHT | 3500 kg |
| MAX TORQUE | 188 Nm |
| OBSTACLE DETECTION | With Motor Encoder |
| MANUAL OPERATION | Knob-operated Mechanical Release |
| TYPE OF USE | Intensive |
| PROTECTION LEVEL | IP55 |
| OPERATING TEMPERATURE | -15°C / +50°C |
| ACCESSORIES | Safety Photocell (On Poles) |
| Flashing Light, Remote Control Receiver / Transmitter | |
| CERTIFICATION | ISO 9001:2015 |
| WARRANTY | 2 Years |
