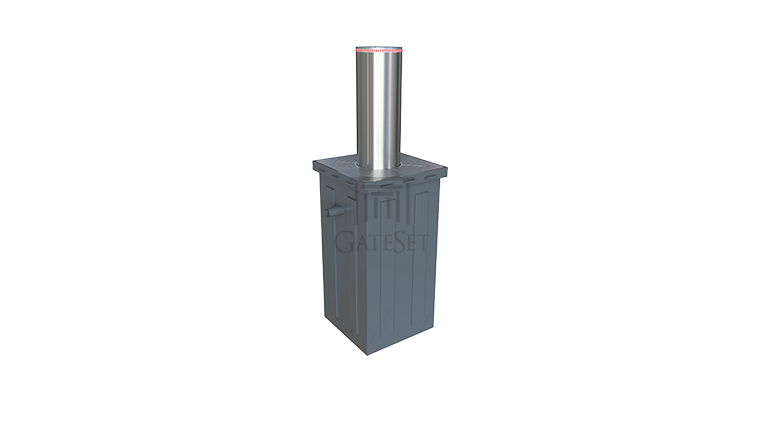

GSB7000 HYDRAULIC RISING BOLLARD
hydraulic-control-cabinet

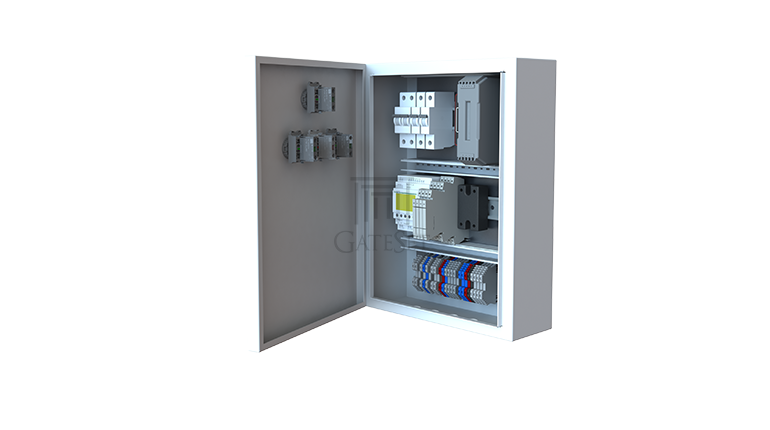

ELECTRONIC CONTROL CABINET
control-keyboard

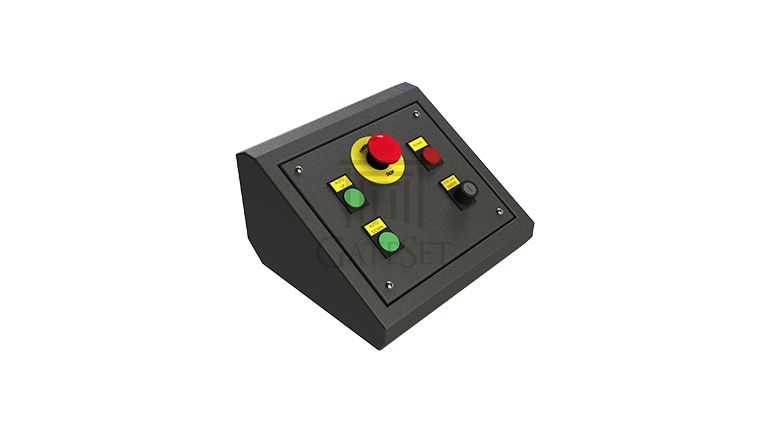

REMOTE CONTROL KEYBOARD
control-keyboard 360

Hover mouse on product for 3D view

Click for 3D view

AUTOMATIC RISING BOLLARDS
BARRIERS

GSB7000 Series

GateSet GSB7000 Series Hydraulic Rising Bollards are designed to protect sensitive areas that require high level of security. Cutting edge internal hydraulic power pack of GSB7000 provides silent and smooth operation with ease of installation and maintenance. The product is engineered to withstand high impact forces by destroying the front suspension system of the hostile vehicle. With its powerful hydraulic unit, GSB7000 Series is an ideal choice for high frequency heavy duty operation, achieving high level of security while maintaining an aesthetic look.

Usage Areas
Access Control

Military Sites
Government Offices
Police Headquarters
Research Centers
Embassies
Airports
Industrial Areas
Sensitive Sites (Subject to Ram Attacks)

Featured Characteristics
Cutting Edge

State-of-the-art internal hydraulic power pack design with maximum reliability.

Efficient

Ease of maintenance and installation combined with smooth and silent operation, thanks to internal hydraulics and modular case design

Robust

Heavy gauge core cylinder with reinforced covers and underground case.

Advanced

Schneider PLC and top quality electronics, providing simultaneous and synchronized operation of up to 30 bollards with a single electronic control cabinet.

Heavy Duty

Suitable for intense usage at high frequency access control points, supporting 5,000+ movements in a consecutive fashion, a total 10,000+ movement per day

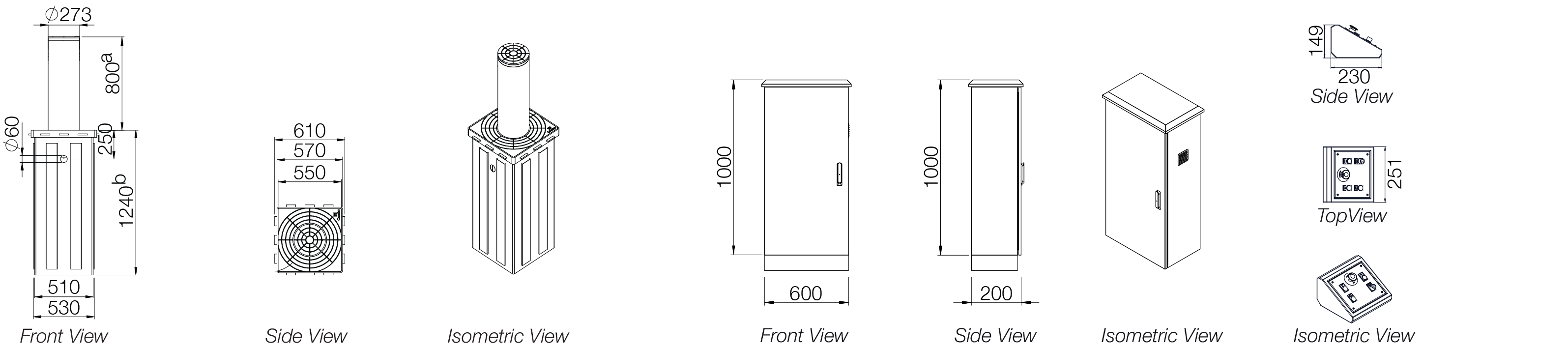

Drawings and Dimensions
Bollard
Bollard

REMARKS
a- Obstacle Height: GSB7070: 700, GSB7080: 800, GSB7090: 900
b- Underground Case Depth: GSB7070: 1140, GSB7080: 1240, GSB7090: 1340

* Above cabinet measurements are for an outdoor cabinet for standard three group configuration. Subject to change depending on design or project needs without prior notice

Technical Specifications
DRIVE Internally Incorporated Single Acting Hydraulic
DRIVE POWER 25 Bar Average, 40 Bar Maximum
CYLINDER DIAMETER  273 mm
OBSTACLE HEIGHT  GSB7070: 700mm, GSB7080: 800 mm, GSB7090: 900 mm
CYLINDER THICKNESS  10 + 2 mm
MATERIAL 10 mm ST52 Steel Core, Finished by 2 mm Stainless Steel Sleeve (304 Grade Standard)
OUTER CASE DIMENSIONS  GSB7070: 610 x 610 x 1140 mm, GSB7080: 610 x 610 x 1240 mm,
  GSB7080: 610 x 610 x 1340 mm
BEARING / MANHOLE  10 mm Steel Bearing, 10 mm Cast Aluminum Manhole and Top Cover
VISIBILITY ENHANCEMENT  Integrated LED Stripe
RISING / FALLING TIME  4 - 6 Seconds of Rising Time, depending on Obstacle Height
  2 Seconds Falling Time, with Gravity
EMERGENCY OPERATION Optional (1.5 Sec)
POWER SUPPLY  220 V AC / 50-60 Hz. 750W
PROTECTION CLASS  IP 67
CONTROL PANEL Independent Controller Box for Simultaneous Operation of Grouped Bollards
  Schneider Zelio Logic PLC with Display
IMPACT RESISTANCE 150,000 Joules (Impact) 700,000 Joules (Break-in)
OPERATION TEMPERATURES  - 30 0C / + 65 0C
WORKING FREQUENCY  Heavy Duty with 10,000 Movement/Day
POSITION DETECTION  Waterproof In-Core Proximity Sensor for Down Position
  Pressure Sensor for Up Position and Operation Safety
MANUAL OPERATION  Easy Release System with Personalized Key
EASE OF SERVICE Pressure Measurement and Adjustment from top of the case without removing the bollard
OPERATION CONTROL  Compatible with any kind of Standard Interface, Button (standard)
  Remote Control, RFID - Proximity Card Reader, LR etc. (optional)
HYDRAULIC OIL No 46 (standard)
SAFETY EQUIPMENT  Emergency Stop Button (standard) Photocell, Loop Sensor (optional)
ACCESSORIES  Traffic Lights, Flashing Light, Siren, Warning Sign, Drainage Pump (optional)
CERTIFICATION  ISO 9001:2015, CE
WARRANTY 2 Years
