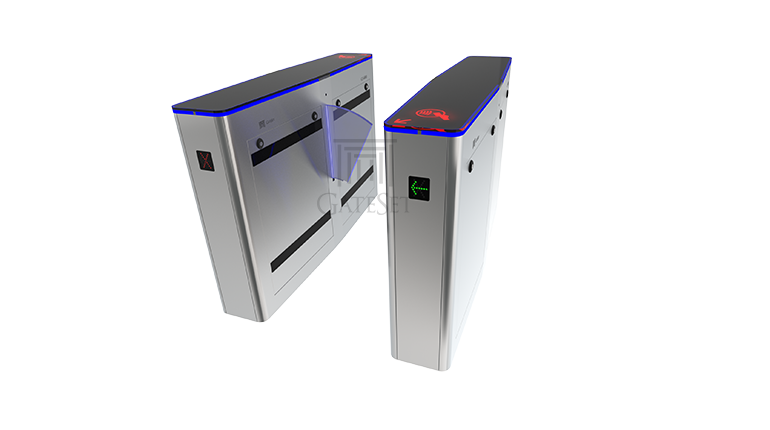

gs-6000-single-passage
GS-6000 SINGLE LANE - STANDARD PASSAGE
gs-6300-single-standard-wing
GS-6300 STANDARD SINGLE WING

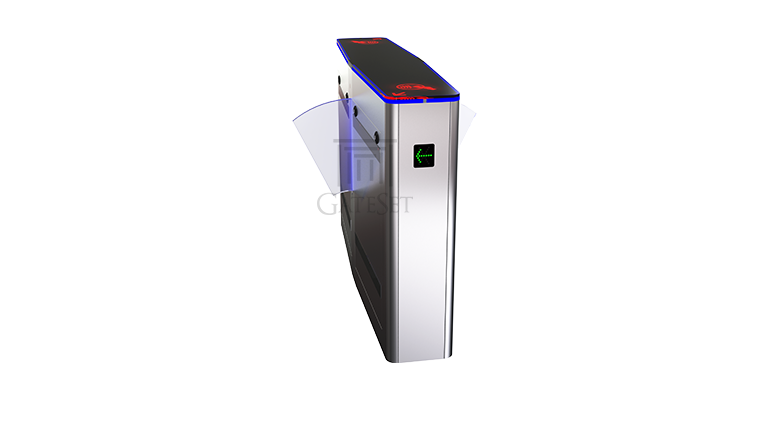

gs-6600-double-standard-wing
GS-6600 STANDARD DOUBLE WING
gs-6900-single-disabled-wing
GS-6900 DISABLED SINGLE WING

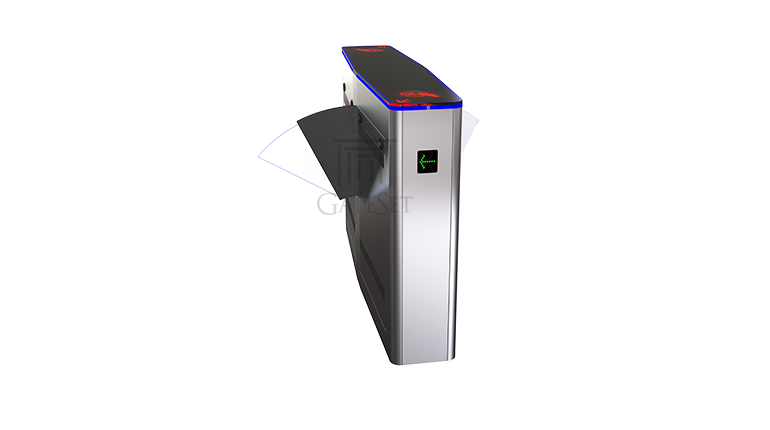

gs-6920-double-hybrid-wing
GS-6920 HYBRID DOUBLE WING
gs-6920-double-hybrid-wing 360

Hover mouse on product for 3D view

Click for 3D view

SPEED GATE
TURNSTILES

GS-6000 Series / Corporate Line

GateSet Corporate Line GS-6000 Series Speed Gate Turnstiles are robust products functioning to provide pedestrian access control in areas requiring moderate level of security. Encoder and PLC controlled obstacle movement is provided by brushless DC motor, and enhanced with security features such as anti-tail-gating and anti-pass-back, with seven pairs of optical sensors embedded in the turnstile case, which in total ensures one of the highest reliability available in market and a remarkably long life even in case of intensive usages. GS-6000 Series Speed Gates are the perfect solution, where design, aesthetics and passage speed are important.

Functional Highlights
Usage Areas
Access Control

Fee Collection
Access Restriction
Business Centers
Government Offices
Airports
Industrial Plants

Featured Characteristics
Elegant

Satin finished 304 Stainless Steel Case, tempered glass top cover and obstacles

Reliable

Brushless DC motor, controlled by Omron PLC providing a long product life with minimum maintenance

Robust

1.5 mm 304 grade stainless steel Case, enhanced with 5 mm thick internal vertical frames

Secure

Anti-Pass-Back and Anti-Tail-Gating with 7 pairs of embedded industrial optical sensors

Flexible

Ease of integration with various access control systems thanks to its control PLC answering all demanded high-end functions

Products in this Series

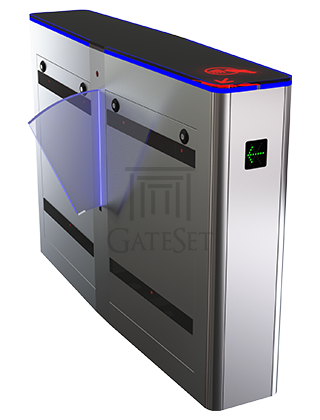

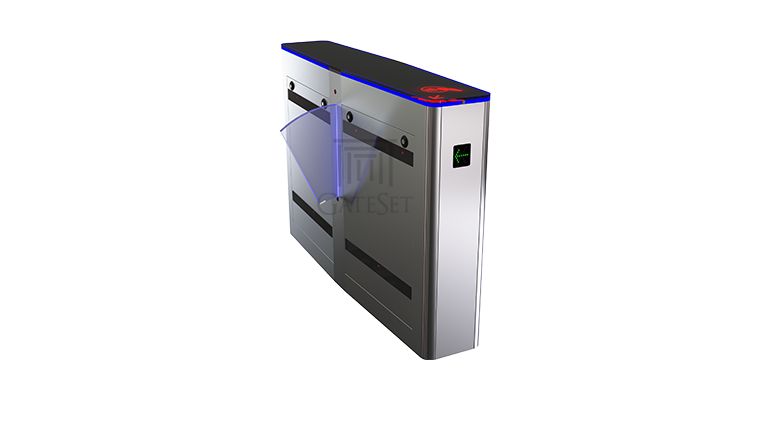

GS-6300

- Standard Single Wing
- 304 Stainless Steel Body
- Black Tainted Glass Top
- Configured as:
* Master / Starting Unit or
* Slave / Ending Unit
- Provides one 550 mm wide
Passage together with
corresponding standard wing

GS-6300

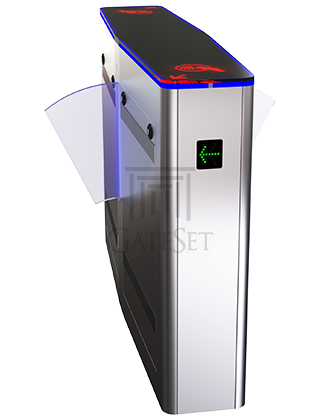

GS-6600

- Standard Double Wing
- 304 Stainless Steel Body
- Black Tainted Glass Top
- Configured as:
* Master / Center Unit and
* Slave / Center Unit
- Provides two 550 mm wide
Passages at each side
together with corresponding
standard wings

GS-6600

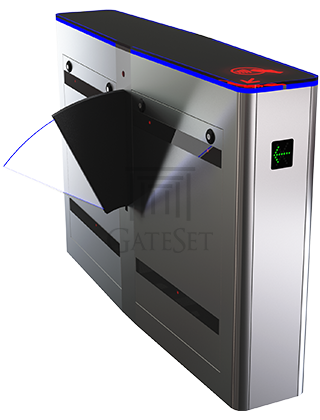

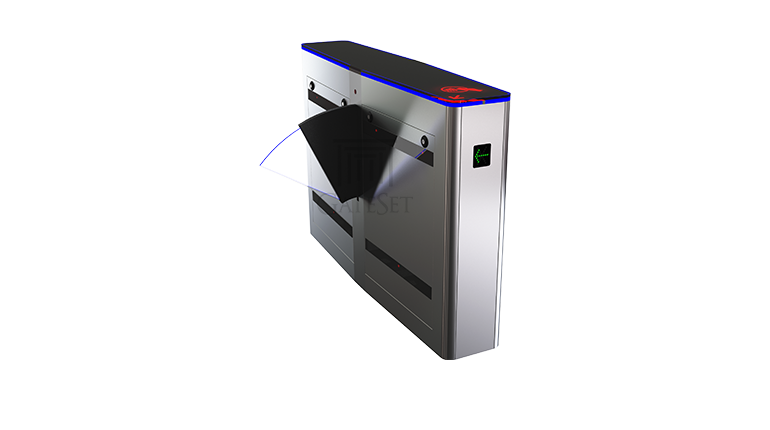

GS-6900

- Disabled Single Wing
- 304 Stainless Steel Body
- Black Tainted Glass Top
- Configured as:
* Master / Starting Unit or
* Slave / Ending Unit
- Provides one 900 mm wide
Passage together with
corresponding disabled wing

GS-6900

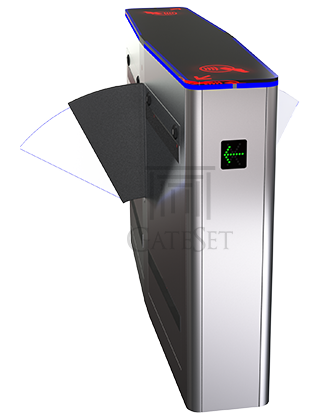

GS-6920

- Hybrid Double Wing
- 304 Stainless Steel Body
- Black Tainted Glass Top
- Configured as:
* Master / Center Unit and
* Slave / Center Unit
- Provides one 550 mm wide
and one 900 mm wide
Passages at each side
together with corresponding
standard and disabled wings

GS-6920
Optional Accessories
DC Power Pack
DC Power Pack

With DC Power Pack, wings can be configured to open automatically in case of power failure

Logo Engraving on Wings
Logo Engraving on Wings

Personalized graphics engraving with laser on obstacles are provided on demand

Stand-Alone Card Reader
Stand-Alone Card Reader

For sites without Access Control System, seamless stand-alone card reader is available

Button Control Unit
Button Control Unit

Designed for ease of operation from reception or supervision desks, remote or wired options

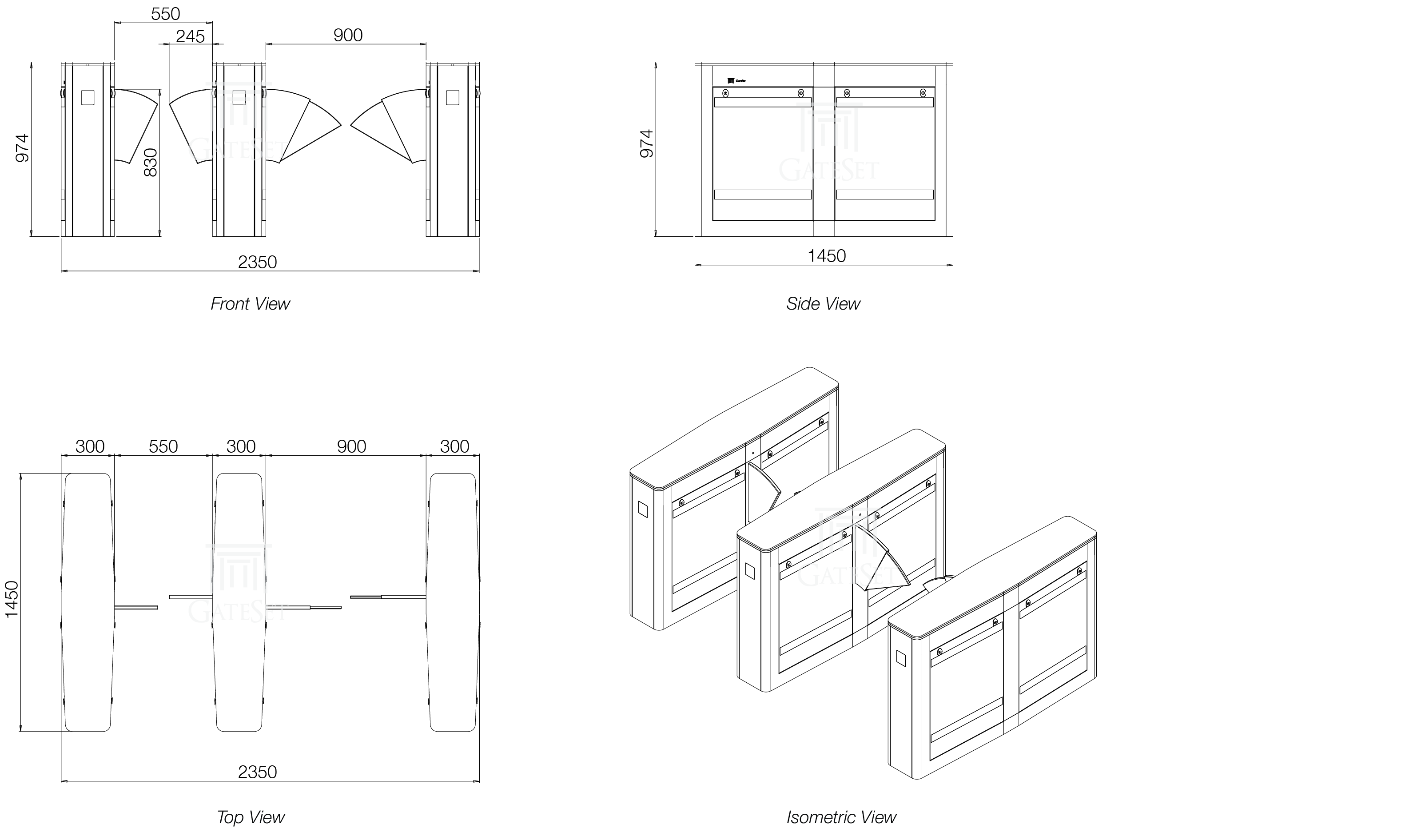

Drawings and Dimensions

* Subject to change depending on design or project needs without prior notice

Technical Specifications
GS-6000 Series
MATERIAL - OBSTACLE  15 mm thick safety Plexiglas for standard passage
  25 mm thick Polyurethane with steel carcass combined with 15 mm inner Plexiglas for disabled passage
SIDE COVERS   Removable to provide easy access for servicing and maintenance
  Optical sensors are covered with 3mm thick Plexiglas
TREATMENT - OTHER PARTS  All other parts are coated against corrosion
DIMENSIONS (mm)  300 x 1450 x 974
OBSTACLE LENGTH (mm)  245 mm (Standard Wing), 425 mm (Disabled Wing)
PASSAGE WIDTH (mm)  550 mm (Standard Passage), 900 (Disabled Passage)
WING HEIGHT  830 mm
OPERATING VOLTAGE  115-240 V AC / 24V DC - 50-60 Hz
POWER CONSUMPTION  150 W (max) for single wing, 300 W (max) for double wings
OPERATING TEMPERATURE  -20°C / + 70°C
ACCESS CONTROL Highest end Omron PLC control for granting access. Easy integration with all kind of access control equipment, configured to receive free contact at standard
SENSOR CONTROL 7 point (pairs) IR sensor control for N/O mode, sequential (switching) passage feature for N/C mode.
  The system continuously monitors the status of the corridor and gives alarm in several cases
OCCUPANCY MONITORING When a user occupies the lane without flushing a card, systems gives alarm after an adjustable time
PASSAGE TIME-OUT In instances where the lane is not used when access is granted, the system will give alarm
  after adjustable time-out duration is exceeded
ENCOUNTERING  When the lane is occupied from the opposite direction of the granted access, the system will give alarm
ANTI-TAIL-GATING When an unauthorized access attempt is made right after a valid access, system will give alarm
  and block access right after the valid passage (alarm/block access configurations are adjustable)
POSITION DETECTION  Position of the obstacle wings are detected by inductive switches
WARNING INDICATORS Two separate warning indicators at front and rear sides of the gate.
  Green arrow indicates “Passage Open”, Red cross indicates “Passage Closed”
SIDE LED STRIPES Passage indication with side LEDs. Green for passage free, Red for passage blocked, Blue for standby
OBSTACLE MOVEMENT Motorized movement by 24 V DC - 30 W brushless motor coupled with 30:1 gearbox for standard wing and 50:1 gearbox for articulated wing. Speed control with encoder.
SAFETY SENSOR  Middle safety IR sensor for preventing obstacle - user interference
DIRECTIONAL MODE Unidirectional and Bidirectional operation features as “Only Entrance”, “Only Exit”, “Entrance and Exit”
CAPACITY Handling more than 30 passengers per minute
OPERATION SAFETY Electrical and mechanical safety for all components. To avoid injuries, all corners and sides are rounded
ELECTRICAL FAILURES  The wings are released automatically to be opened easily by hand
EMERGENCY OPERATION  Fail-Safe: Wings will be remain it the current position (standard).
  Fail-Secure Wings automatically hide to ensure safe evacuation during emergency (optional)
INSTALLATION  Ease of installation with mounting plate
CERTIFICATION  ISO 9001:2015
WARRANTY 2 Years
