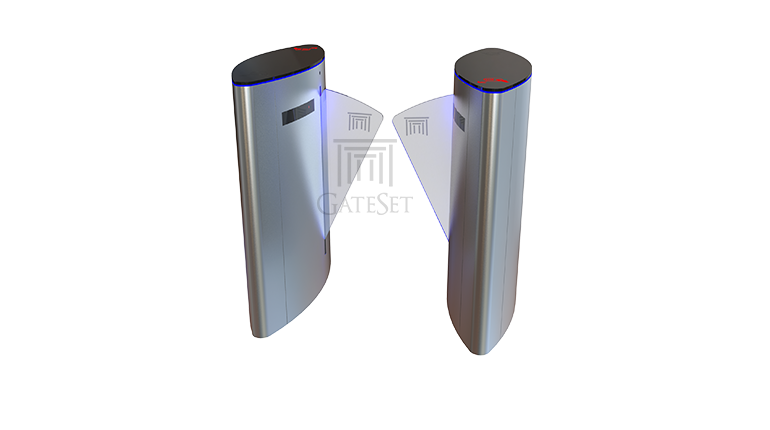

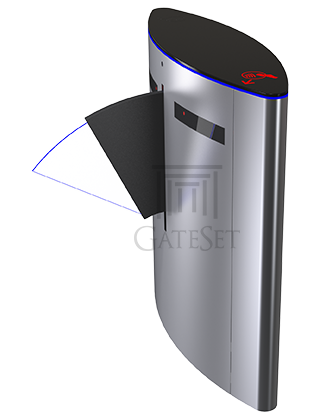

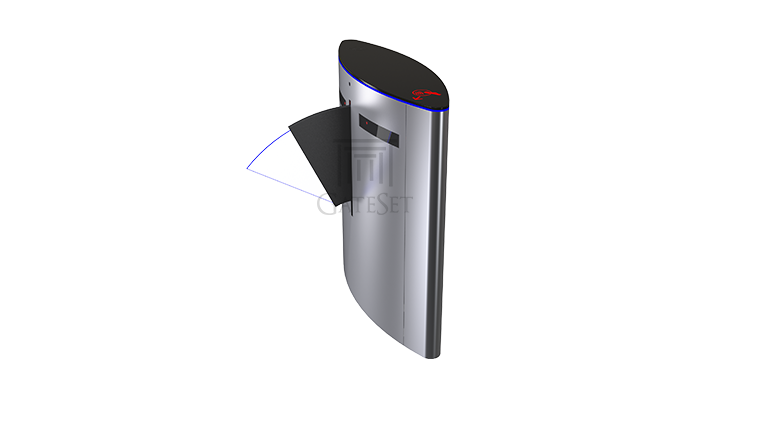

GateSet Exclusive Line GS-3000 Series Speed Gate Turnstiles are robust products functioning to provide pedestrian access control in areas requiring moderate level of security. With its compact case design, provides a perfect solution for tight installation areas. Encoder and PLC controlled obstacle movement is provided by brushless DC motor, and enhanced with security features such as anti-tail-gating and anti-pass-back, with five pairs of optical sensors embedded in the turnstile case, which in total ensures one of the highest reliability available in market and a remarkably long life even in case of intensive usages. GS-3000 Series Speed Gates are the perfect solution, where design, aesthetics and passage speed are important.
Fee Collection
Access Restriction
Business Centers
Government Offices
Sport Centers
Industrial Plants
Satin finished 304 Stainless Steel Case, tempered glass top cover and obstacles
Brusless DC motor, controlled by Omron PLC providing a long product life with minimum maintenance
Only 1000 mm long Case provides ease of installation at tight areas
Anti-Pass-Back and Anti-Tail-Gating with 5 pairs of embedded industrial optical sensors
Ease of integration with various access control systems thanks to its control PLC answering all demanded high-end functions

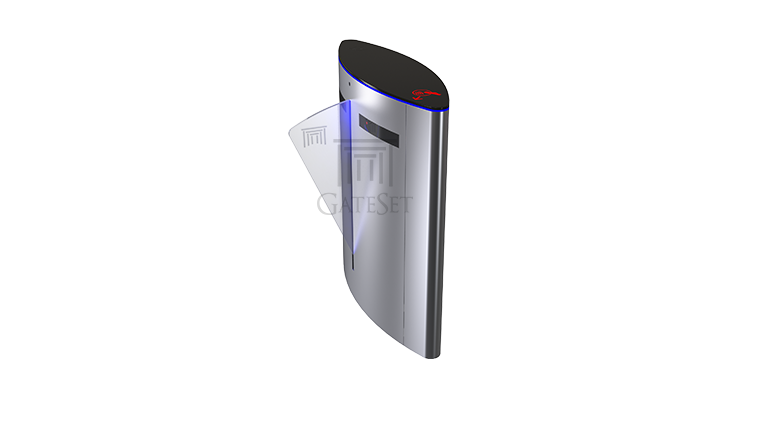

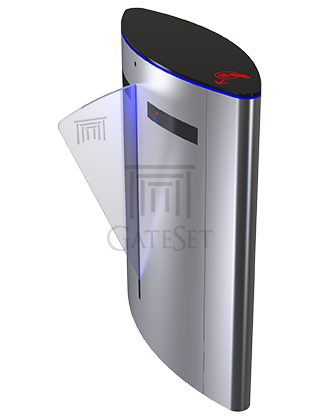

- Standard Single Wing
- 304 Stainless Steel Body
- Black Tainted Glass Top
- Configured as:
* Master / Starting Unit or
* Slave / Ending Unit
- Provides one 550 mm wide
Passage together with
corresponding standard wing

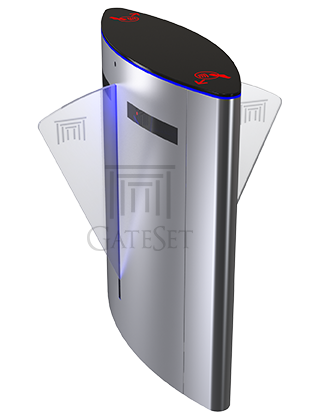

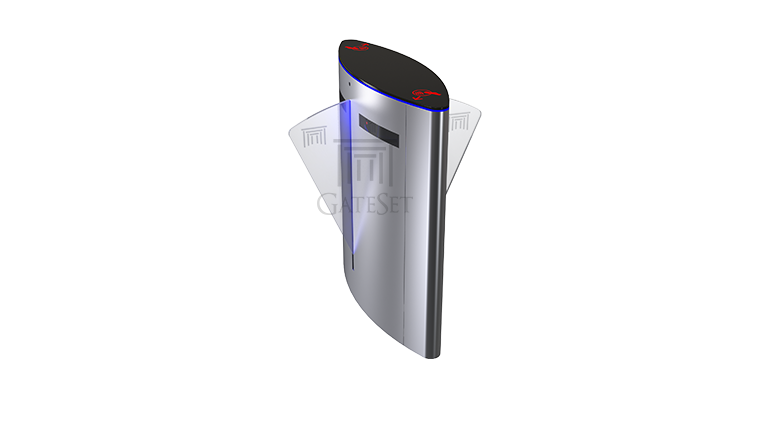

- Standard Double Wing
- 304 Stainless Steel Body
- Black Tainted Glass Top
- Configured as:
* Master / Center Unit and
* Slave / Center Unit
- Provides two 550 mm wide
Passages at each side
together with corresponding
standard wings
- Disabled Single Wing
- 304 Stainless Steel Body
- Black Tainted Glass Top
- Configured as:
* Master / Starting Unit or
* Slave / Ending Unit
- Provides one 900 mm wide
Passage together with
corresponding disabled wing

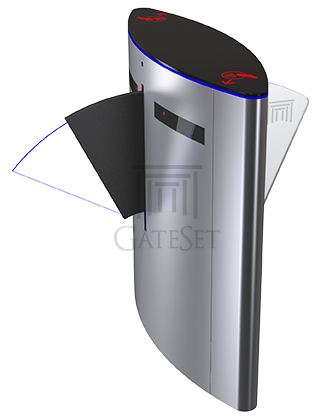

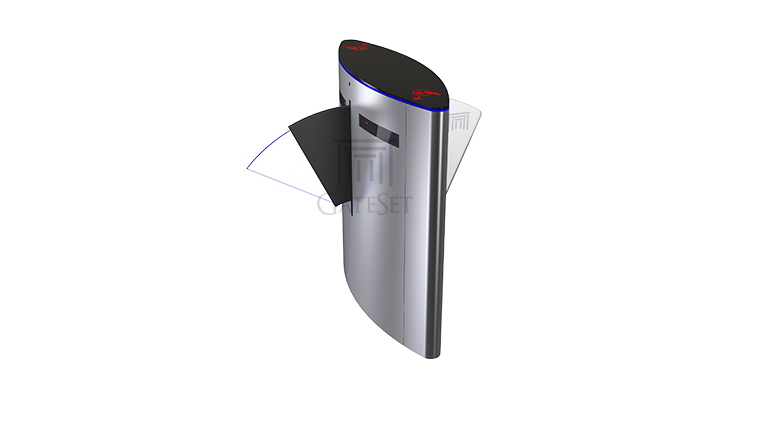

- Hybrid Double Wing
- 304 Stainless Steel Body
- Black Tainted Glass Top
- Configured as:
* Master / Center Unit and
* Slave / Center Unit
- Provides one 550 mm wide
and one 900 mm wide
Passages at each side
together with corresponding
standard and disabled wings
With DC Power Pack, wings can be configured to open automatically in case of power failure
Personalized graphics engraving with laser on obstacles are provided on demand
For sites without Access Control System, seamless stand-alone card reader is available
Designed for ease of operation from reception or supervision desks, remote or wired options
* Subject to change depending on design or project needs without prior notice
| MATERIAL - MAIN BODY | 1.5 mm 304 grade stainless steel, satin finishing |
| MATERIAL - TOP COVER | 10 mm Plexiglas Layer for LED Stripes, Finished by 10 mm Tempered Safety Glass (Black Tainted) |
| MATERIAL - INNER CASE | Reinforced with 5 mm horizontal galvanized metal bars to increase strength |
| MATERIAL - OBSTACLE | 15 mm thick safety Plexiglas for standard passage 25 mm thick Polyurethane with steel carcass combined with 15 mm inner Plexiglas for disabled passage |
| SIDE COVERS | Removable to provide easy access for servicing and maintenance Optical sensors are covered with 3mm thick Plexiglas |
| TREATMENT - OTHER PARTS | All other parts are coated against corrosion |
| DIMENSIONS (mm) | 300 x 1000 x 970 |
| OBSTACLE LENGTH (mm) | 225 mm (Standard Wing), 425 mm (Disabled Wing) |
| PASSAGE WIDTH (mm) | 550 mm (Standard Passage), 900 (Disabled Passage) |
| WING HEIGHT | 830 mm |
| OPERATING VOLTAGE | 115-240 V AC / 24V DC - 50-60 Hz |
| POWER CONSUMPTION | 150 W (max) for single wing, 300 W (max) for double wings |
| OPERATING TEMPERATURE | -20 °C / + 70 °C |
| ACCESS CONTROL |
Highest end Omron PLC control for granting access. |
| SENSOR CONTROL | 5 point (pairs) IR sensor control for N/O mode, sequential (switching) passage feature for N/C mode. The system continuously monitors the status of the corridor and gives alarm in several cases |
| OCCUPANCY MONITORING | When a user occupies the lane without flushing a card, systems gives alarm after an adjustable time |
| PASSAGE TIME-OUT | In instances where the lane is not used when access is granted the system will give alarm after adjustable time-out duration is exceeded |
| ENCOUNTERING | When the lane is occupied from the opposite direction of the granted access, the system will give alarm |
| ANTI-TAIL-GATING | When an unauthorized access attempt is made right after a valid access, system will give alarm and block access right after the valid passage (alarm/block access configurations are adjustable) |
| POSITION DETECTION | Position of the obstacle wings are detected by inductive switches |
| WARNING INDICATORS | Two separate warning indicators at front and rear sides of the gate. Green arrow indicates “Passage Open”, Red cross indicates “Passage Closed” |
| SIDE LED STRIPES | Passage indication with side LEDs. Green for passage free, Red for passage blocked, Blue for standby |
| OBSTACLE MOVEMENT | Motorized movement by 24 V DC - 30 W brushless motor coupled with 30:1 gearbox for standard wing and 50:1 gearbox for articulated wing. Speed control with encoder. |
| SAFETY SENSOR | Middle safety IR sensor for preventing obstacle - user interference |

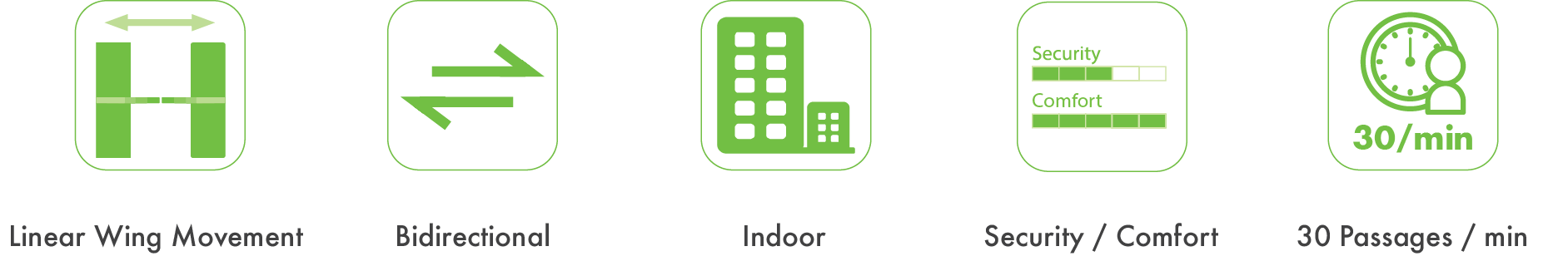

| DIRECTIONAL MODE | Unidirectional and Bidirectional operation features as “Only Entrance”, “Only Exit”, “Entrance and Exit” |
| CAPACITY | Handling more than 30 passengers per minute |
| OPERATION SAFETY | Electrical and mechanical safety for all components. To avoid injuries, all corners and sides are rounded |
| ELECTRICAL FAILURES | The wings are released automatically to be opened easily by hand |
| EMERGENCY OPERATION | Fail-Safe: Wings will be remain it the current position (standard). Fail-Secure Wings automatically hide to ensure safe evacuation during emergency (optional) |
| INSTALLATION | Ease of installation with mounting plate |
| CERTIFICATION | ISO 9001:2015 |
| WARRANTY | 2 Years |
