MANUAL AND FIXED BOLLARDS
BARRIERS

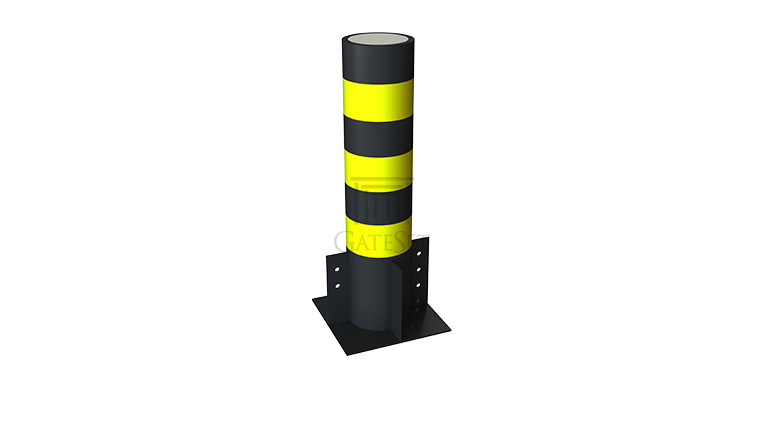

GFB9000 Series
GateSet GFB9000 Series High Impact Resistant Static Bollards are designed to provide maximum perimeter security to protect sensitive areas. The product has already proven its durability and stopping power through computer aided element analysis tests, providing compliance to IWA14-1:2013 / PAS68 / ASTM M50 standards at P1 level with N3C vehicle. Manufactured from heavy gauge steel, GateSet GFB9000 Series Static Bollards provide solid protection with its design; engineered to withstand extreme forces by destroying front suspension system of the hostile vehicle and preventing intended penetration into the restricted area. With embedded foundation and concrete filled structure, GFB9000 Series Bollards are suitable for any sensitive site with city infrastructure below.
Usage Areas
Access Control
Military Sites
Government Offices
Police Headquarters
Research Centers
Embassies
Airports
Industrial Areas

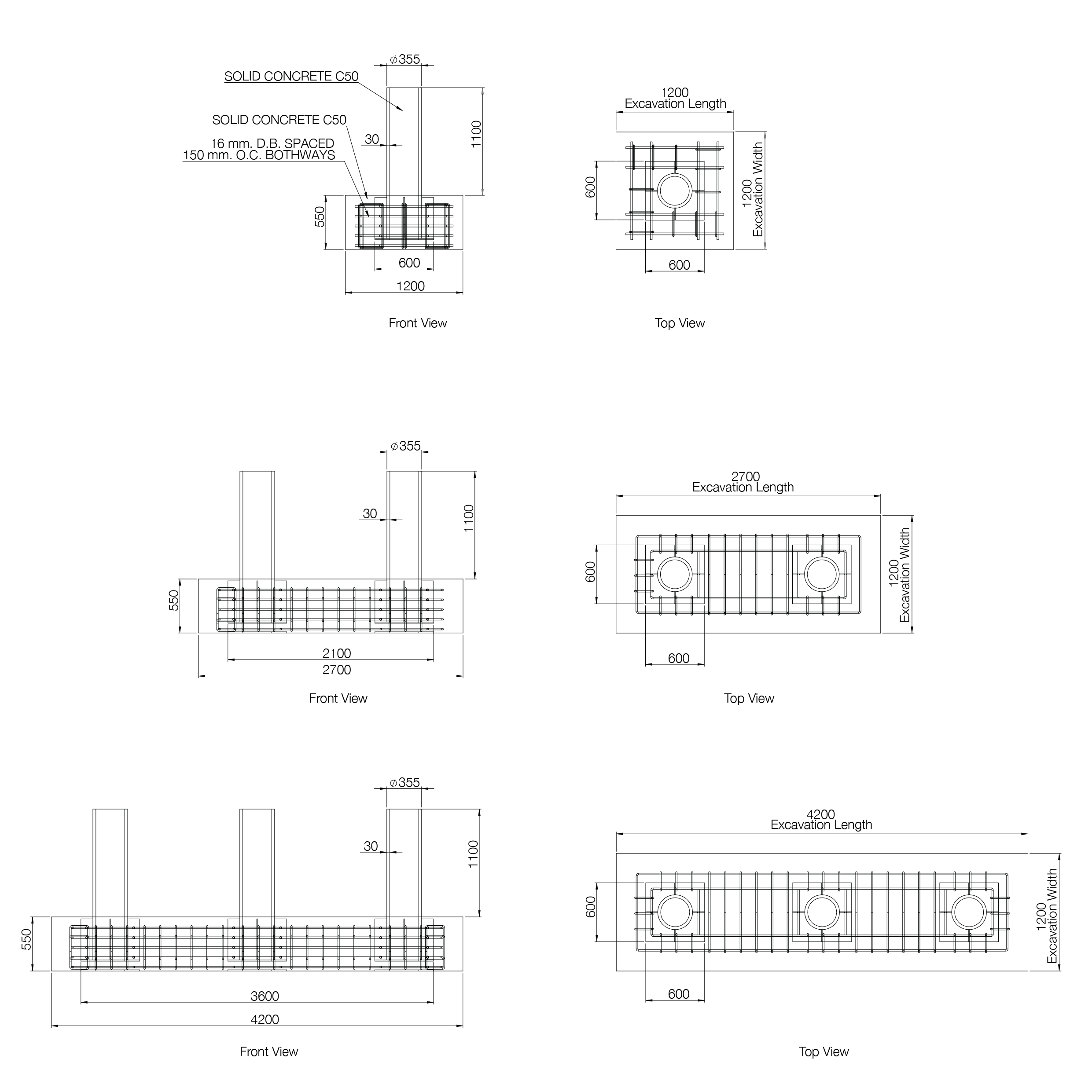

Drawings and Dimensions
GFB9000 Fixed Bollards
Subject to change depending on design or project needs without prior notice
Technical Specifications
GFB9000 Fixed Bollard
| TYPE | Static |
| CORE BOLLARD DIAMETER | 355 mm |
| OBSTACLE HEIGHT | 1100 mm |
| TOTAL BOLLARD HEIGHT | 1552 mm |
| CORE THICKNESS | 30 mm Steel Core ( to be filled with C70 Concrete) |
| FOUNDATION DIMENSIONS | 1200 mm x 1200 mm x 550 mm (WxLxH) (For single bollard) |
| FLANGE | 12 mm Thick ST52 Steel Plate with Gussets |
| CYLINDER MATERIAL | ST52 Steel |
| IMPACT RESISTANCE | 7,200 kg at 80 km/h (IWA14-1 / K12 / PAS68 Equivalent) |
| BOLLARD FINISHING | Anti-corrosive Coating with Two Component Surface Tolerant Epoxy Mastic (Jotamastic). |
| Different RAL Colors Available on Demand | |
| CERTIFICATION | ISO 9001:2015 |
| WARRANTY | 2 Years |
