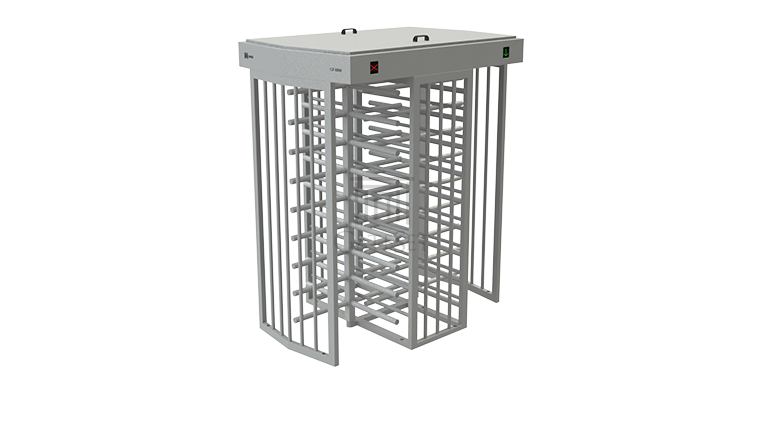

gf-8800-full-height-turnstile
GF-8800 - POWDER COATED ROTOR AND BODY

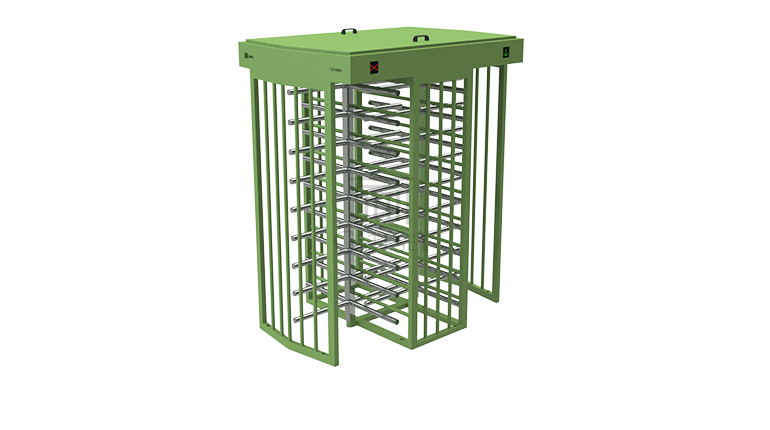

gf-8820-full-height-turnstile
GF-8820 - 304 SS ROTOR AND POWDER COATED BODY
gf-8830-full-height-turnstile
GF-8830 - 316 SS ROTOR AND POWDER COATED BODY

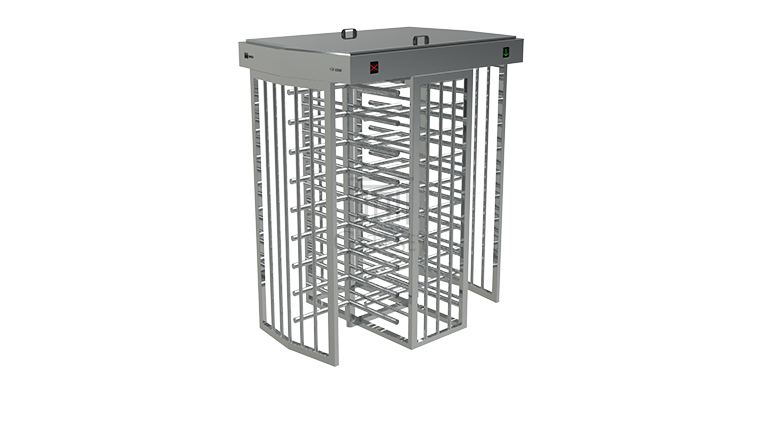

gf-8840-full-height-turnstile
GF-8840 - 304 SS ROTOR AND BODY
gf-8840-full-height-turnstile 360

Hover mouse on product for 3D view

Click for 3D view
Download Datasheet Drawings & Dimensions Mail About This Product

FULL HEIGHT
TURNSTILES

GF-8800 Series / Secure Line

GateSet Secure Line GF-8800 Series Double Full Height Turnstiles are robust products designed to function both indoor and outdoor environments, providing pedestrian access control in areas requiring high level of security. Cage type structure manufactured from heavy gauge steel enhances the strength of the GF-8800 Series to withstand against crowd pressure. Its heavy duty mechanics ensure smooth operation during the control of thousands of pedestrians at one session successively. With proven ability to handle massive crowds in places like subways or stadiums, GF-8800 Series Double Full Height Turnstiles ensure robust solutions for crowd control.

Download Datasheet Drawings & Dimensions Mail About This Product
Functional Highlights
Usage Areas
Access Control

Stadiums
Prisons
Military Sites
Government Offices
Embassies
Airports
Underground Car Parks
Industrial Areas

Featured Characteristics
Heavy Duty

Designed for intense industrial usage with 100% duty cycle and heavy gauge mechanics

Flexible

Ease of integration with all access control equipment through its electronic control card

Secure

Cage type case ensures maximum security

Strong

Effective crowd control with huge strength to impact, enhanced by 12 different mounting points

Reliable

Low maintenance requirement, long product life

Products in this Series

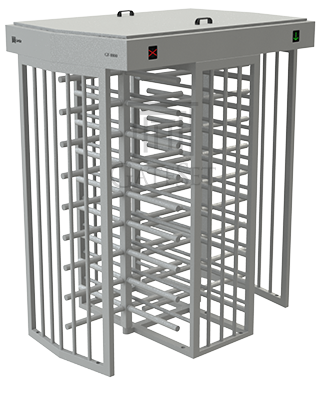

GF-8800

- Main Body and Frame:
Powder Coated
- Arms and Rotor:
Powder Coated
- RAL Color Options Available:
6018, 5002, 7001,
7040, 7032
- Recommended For:
* Indoor - Low Moist Outdoor

GF-8800

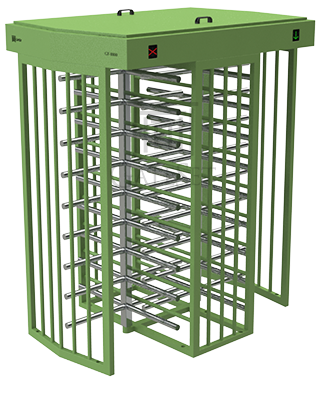

GF-8820

- Main Body and Frame:
Powder Coated
- Arms and Rotor:
304 Grade Stainless Steel
- RAL Color Options Available:
6018, 5002, 7001,
7040, 7032
- Recommended For:
* Indoor - Moist Outdoor

GF-8820
GF-8830

- Main Body and Frame:
Powder Coated
- Arms and Rotor:
316 Grade Stainless Steel
- RAL Color Options Available:
6018, 5002, 7001,
7040, 7032
- Recommended For:
* Indoor - Very Moist and
Highly Corrosive Outdoor

GF-8830

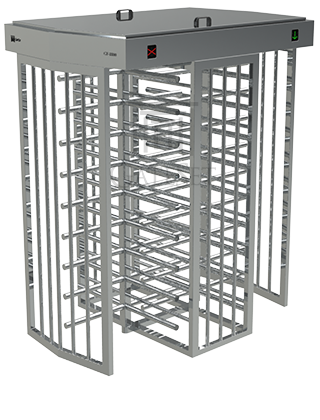

GF-8840

- Main Body and Frame:
304 Grade Stainless Steel
Satin Finishing
- Arms and Rotor:
304 Grade Stainless Steel
- Not Painted, No Color Options
- Recommended For:
* Indoor - Moist Outdoor

GF-8840
Optional Features
Manual Override Box
Manual Override Box

Placed at the secure side of the roof within a locked compartment, Manual Override Box provides ease of passage mode configuration for authorized security personnel. Available optionally, this feature comes as default in “-T” configuration

Passage Tracking Sensor
Passage Tracking Sensor

In order to acknowledge physical passage of the user, passage tracking feature is provided with passage sensors, which are located at 4 different points through the passage. Available optionally, this feature comes as default in “-T” configuration

Optional Accessories
Top Panel Led Lighting
Top Panel Led Lighting

A more visible passage indication is provided with LED Lights placed both at entry and exit sides.

Top Panel Spot Light
Top Panel Spot Light

For remote areas with low or no illumination, passage enlightenment is available with Spot Lights

Stand-Alone Card Reader
Stand-Alone Card Reader

For sites without Access Control System, different types of stand-alone card readers are available.

Button Control Unit
Button Control Unit

Designed for guard rooms, provides ease of operation for security personnel.

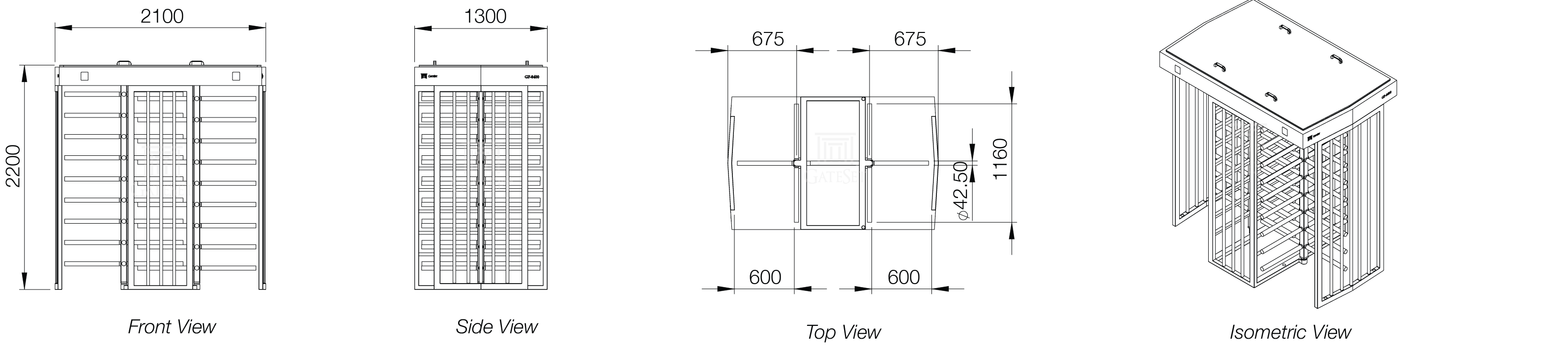

Drawings and Dimensions

* Subject to change depending on design or project needs without prior notice

Technical Specifications
GF-8800 Series
MATERIAL - MAIN BODY GF-8800 / GF-8820 / GF-8830: Electrostatic Powder Coating on Steel
  GF-8840: 304 Stainless Steel - Satin Finishing
MATERIAL - ROTATING ARMS  GF-8800: Electrostatic Powder Coating on Steel
  GF-8820 / GF-8840: 304 Stainless Steel
  GF-8830: 316 Stainless Steel Polished Finishing
TREATMENT - OTHER PARTS All other parts are coated against corrosion
DIMENSIONS (mm)  2100 x 1300 x 2200 (WxLxH)
PASSAGE WIDTH (mm) 612 (per passage)
DIAMETER - ROTATING ARMS (mm) 42.5 (each)
OPERATING VOLTAGE 220V-240V AC / 50Hz
NOMINAL / MAX. CURRENT 250 mA / 850 mA (per passage)
POWER CONSUMPTION 30 W (per passage)
OPERATING TEMPERATURE -20°C / + 70°C
NGRESS PROTECTION RATING IP54
ACCESS CONTROL Microprocessor based control for granting access.
  Easy integration with all kind of access control equipment
POSITION DETECTION Position detection with two separate micro-switches at mechanics
PASSAGE ACKNOWLEDGMENT Provided by 4 pieces of optical passage sensors controlled with PLC (optional)
WARNING INDICATORS Two separate warning indicators at front and rear sides of the gate.
  Green arrow indicates “Passage Open”, Red cross indicates “Passage Closed”
OPERATION MODE 6 different operational modes available, programmed by means of software
DIRECTIONAL MODE Unidirectional and Bidirectional operation features as “Only Entrance”, “Only Exit”, “Entrance and Exit”
ROTATION CONTROL Self-centered and smooth operation by means of spring and hydraulic damper
ANTI REVERSE SYSTEM Extra secure 60 degrees anti-reverse system to prevent intrusion
ROTATION SAFETY Mechanism do not lock itself at middle position to avoid any trapping in the event of power failure
CAPACITY Handling more than 30 passengers per minute
DESIGN

While Cage type design enhances security, its modularity ensures easy part replacement
  Equipped with a lockable top cabinet for ease of service
OPERATION SAFETY Electrical and mechanical safety for all components,
  To avoid injuries, all corners and sides are rounded
MANUAL OVERRIDE Entry and Exit Manual Override option with locked switch cabinet (optional)
ELECTRICAL FAILURES Fail-Safe: Main mechanism released and unlocked automatically. Arms rotates free (standard) Fail-Secure: Mechanism remains locked or released only for selected direction (optional)
CERTIFICATION ISO 9001:2015, CE
WARRANTY 2 Years
