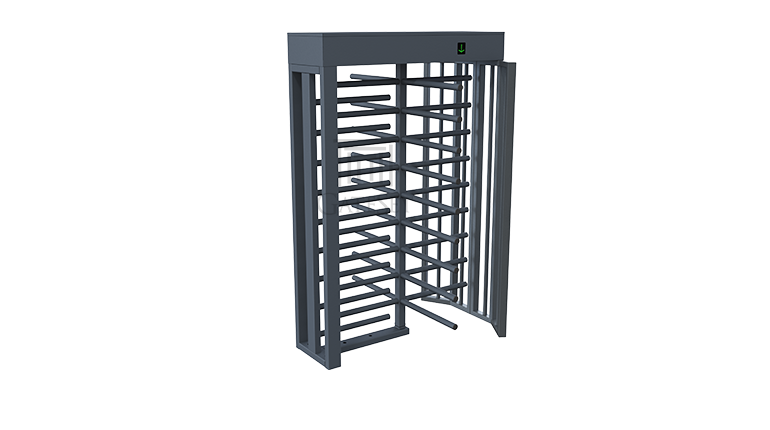

gf-4420-full-height-turnstile
GF-4400 - POWDER COATED ROTOR AND BODY
gf-4400-full-height-turnstile
GF-4420 - 304 SS ROTOR AND POWDER COATED BODY

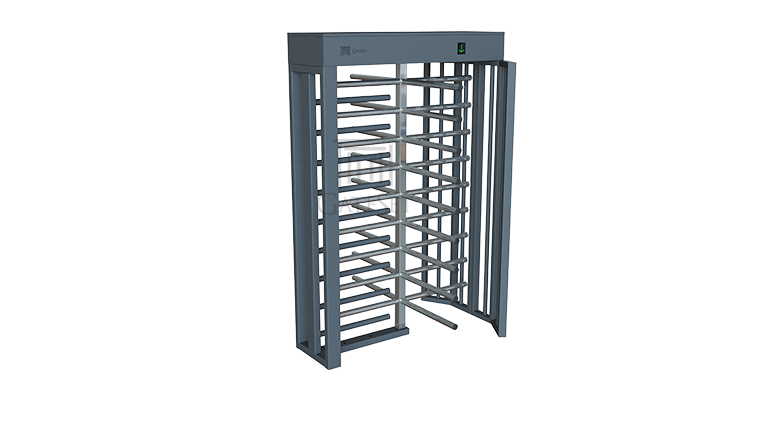

gf-4430-full-height-turnstile
GF-4430 - 316 SS ROTOR AND POWDER COATED BODY
gf-4440-full-height-turnstile
GF-4440 - 304 SS ROTOR AND BODY
gf-4440-full-height-turnstile 360

Hover mouse on product for 3D view

Click for 3D view

FULL HEIGHT
TURNSTILES

GF-4400 Series / Industrial Line

GateSet Industrial Line GF-4400 Series Full Height Turnstiles are built to control pedestrian access in areas requiring high level of security. Designed to meet the expectations of the industrial world, GF-4400 Series stand out with features such as Invalid Passenger Sensor and Manual Override Box; rendering it compliant to industry-specific standards, for example HCIS. The modular structure of GF-4400 Series provides easy handling of logistics both in transportation and installation stages.

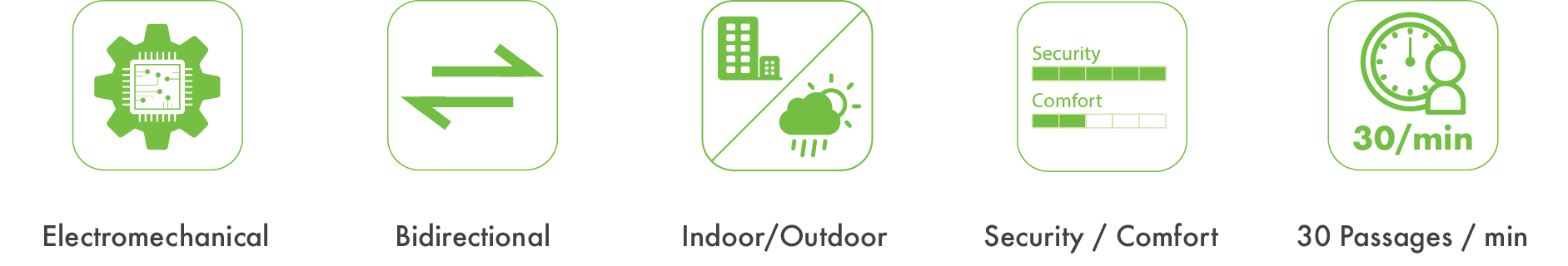

Functional Highlights
Usage Areas
Access Control

Factories
Prisons
Military Compounds
Embassies
Airports
Parking Lots
Industrial Areas

Featured Characteristics
Robust

Designed to withstand hard environmental conditions such as heavy rains, dust, wind and cold

Compact

Smaller case design compared to its predecessors provide high security while saving space

Modular

Demounted packing provides ease of transport along with easy assembly

Flexible

Ease of integration with various access control systems thanks to its high-end PLC, which answers all demanded high-end functions

Above the Line

Fully meets the requirements of industrial realm, such as compliance with standards such as HCIS

Products in this Series

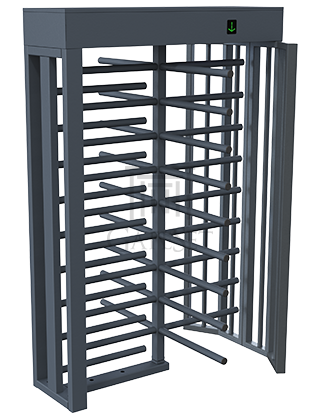

GF-4400

- Main Body and Frame:
Powder Coated
- Arms and Rotor:
Powder Coated
- RAL Color Options Available:
6018, 5002, 7001,
7040, 7032
- Recommended For:
* Indoor - Low Moist Outdoor

GF-4400
GF-4420

- Main Body and Frame:
Powder Coated
- Arms and Rotor:
304 Grade Stainless Steel
- RAL Color Options Available:
6018, 5002, 7001,
7040, 7032
- Recommended For:
* Indoor - Moist Outdoor

GF-4420

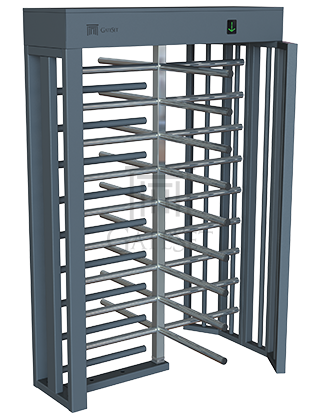

GF-4430

- Main Body and Frame:
Powder Coated
- Arms and Rotor:
316 Grade Stainless Steel
- RAL Color Options Available:
6018, 5002, 7001,
7040, 7032
- Recommended For:
* Indoor - Very Moist and
Highly Corrosive Outdoor

GF-4430

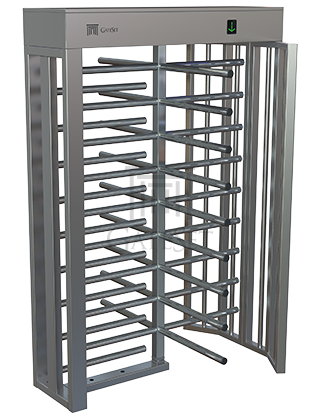

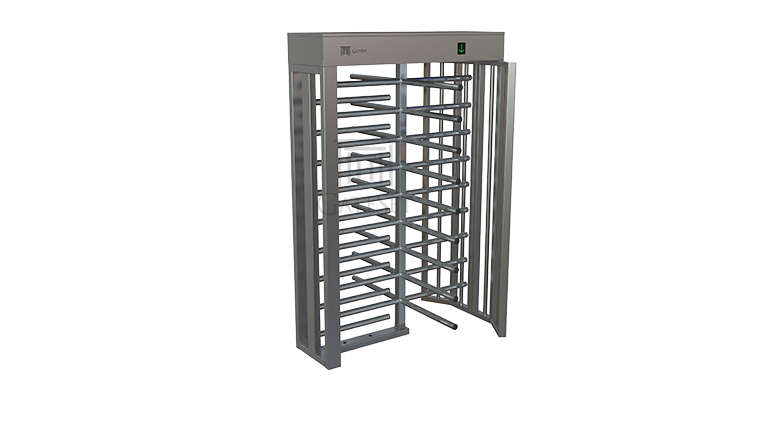

GF-4440

- Main Body and Frame:
304 Grade Stainless Steel
Satin Finishing
- Arms and Rotor:
304 Grade Stainless Steel
- RAL Color Options Available:
6018, 5002, 7001,
7040, 7032
- Recommended For:
* Indoor - Moist Outdoor

GF-4440
Optional Features
Manual Override Box
Manual Override Box

Placed at the secure side of the roof within a locked compartment, Manual Override Box provides ease of passage mode configuration for authorized security personnel. Available optionally, this feature comes as default in “-T” configuration

Passage Tracking Sensor
Passage Tracking Sensor

In order to acknowledge physical passage of the user, passage tracking feature is provided with passage sensors, which are located at 4 different points through the passage. Available optionally, this feature comes as default in “-T” configuration

Optional Accessories
Top Panel Led Lighting
Top Panel Led Lighting

A more visible passage indication is provided with LED Lights placed both at entry and exit sides.

Top Panel Spot Light
Top Panel Spot Light

For remote areas with low or no illumination, passage enlightenment is available with Spot Lights

Stand-Alone Card Reader
Stand-Alone Card Reader

For sites without Access Control System, different types of stand-alone card readers are available.

Button Control Unit
Button Control Unit

Designed for guard rooms, provides ease of operation for security personnel.

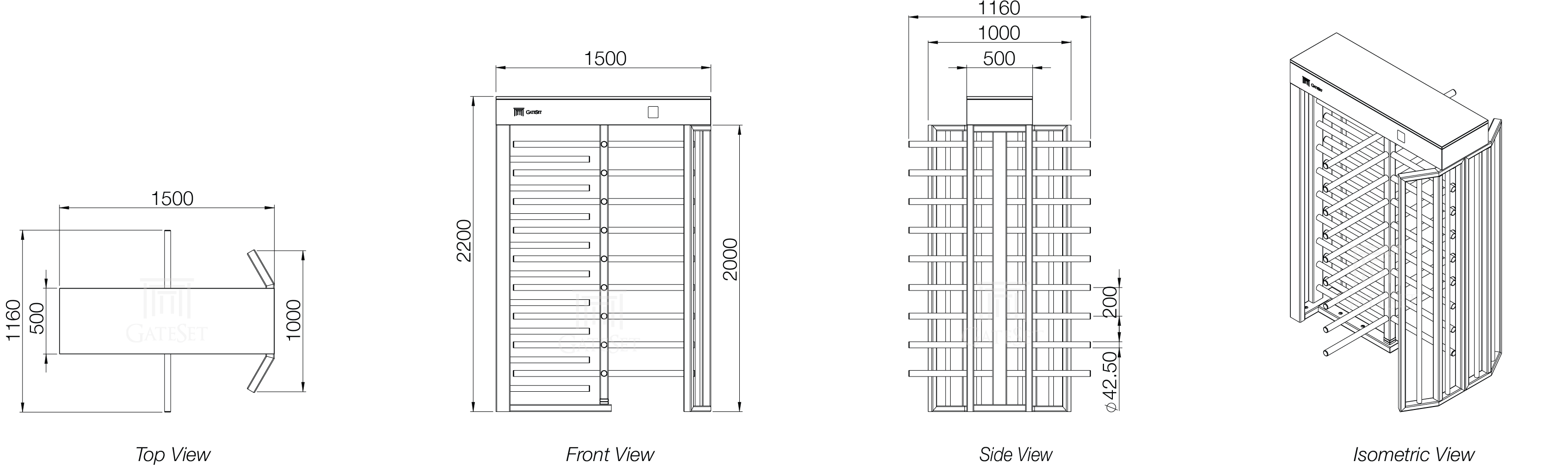

Drawings and Dimensions

* Subject to change depending on design or project needs without prior notice

Technical Specifications
GF-4400 Series
MATERIAL - MAIN BODY GF-4400 / GF-4420 / GF-4430 Electrostatic Powder Coating on Steel with Anti-Rust Layer
  GF-4440: 304 Stainless Steel - Satin Finishing
MATERIAL - ROTATING ARMS  GF-4400: Electrostatic Powder Coating on Steel
  GF-4420 / GF-4440: 304 Stainless Steel Polished Finishing
  GF-4430: 316 Stainless Steel Polished Finishing
TREATMENT - OTHER PARTS All other parts are coated against corrosion
DIMENSIONS (mm)  1500 x 1160 x 2200 (WxLxH)
PASSAGE WIDTH (mm) 620
ARM LENGTH (mm) 550
OPERATING VOLTAGE 220V / 50Hz
NOMINAL / MAX. CURRENT 250 mA / 850 mA
POWER CONSUMPTION 30 W
OPERATING TEMPERATURE -20°C / + 70°C
ACCESS CONTROL PLC based control for granting access. Easy integration with all kind of access control equipment
POSITION DETECTION Position detection with two separate micro-switches at mechanics
PASSAGE ACKNOWLEDGMENT Provided by 4 pieces of optical passage sensors controlled with PLC (optional)
WARNING INDICATORS Two separate warning indicators at front and rear sides of the gate.
  Green arrow indicates “Passage Open”, Red cross indicates “Passage Closed”
TOP PANEL LED LIGHTING Passage indication with Top Panel LEDs placed both at entry and exit sides.
  Green for passage free, Red for passage blocked, Blue for standby (optional)
OPERATION MODE  4 different operational modes available, programmed by means of software
DIRECTIONAL MODE Unidirectional and Bidirectional operation features as “Only Entrance”, “Only Exit”, “Entrance and Exit”
ROTATION CONTROL Self centered and smooth operation by means of spring and hydraulic damper
CAPACITY Handling more than 30 passengers per minute
DESIGN Modular design provides ease of transportation and installation as well as easy part replacement
OPERATION SAFETY Electrical and mechanical safety for all components, To avoid injuries, all corners and sides are rounded
MANUAL OVERRIDE Entry and Exit Manual Override option with locked switch cabinet (optional)
ELECTRICAL FAILURES Main mechanism released and unlocked automatically. Arms rotates free.
CERTIFICATION ISO 9001:2015, CE
WARRANTY 2 Years
