TURNSTILES
GF-4300 Full Height
PEDESTRIAN
ACCESS
CONTROL
ACCESS
CONTROL
PEDESTRIAN
ACCESS
CONTROL
ACCESS
CONTROL
GF-4300 - POWDER COATED ROTOR AND BODY

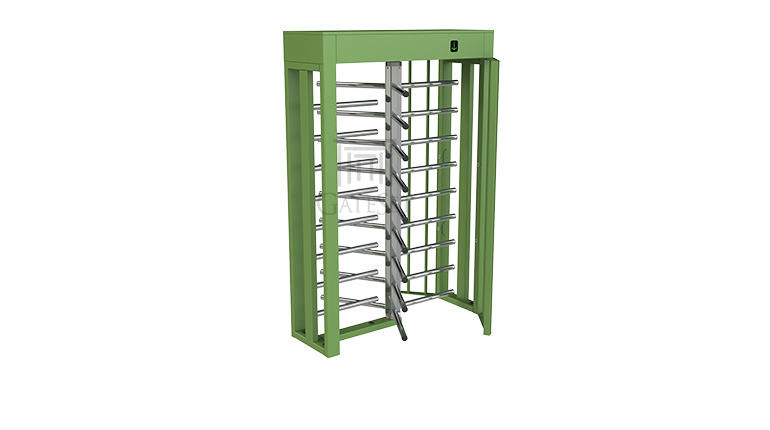

GF-4320 - 304 SS ROTOR AND POWDER COATED BODY
GF-4330 - 316 SS ROTOR AND POWDER COATED BODY

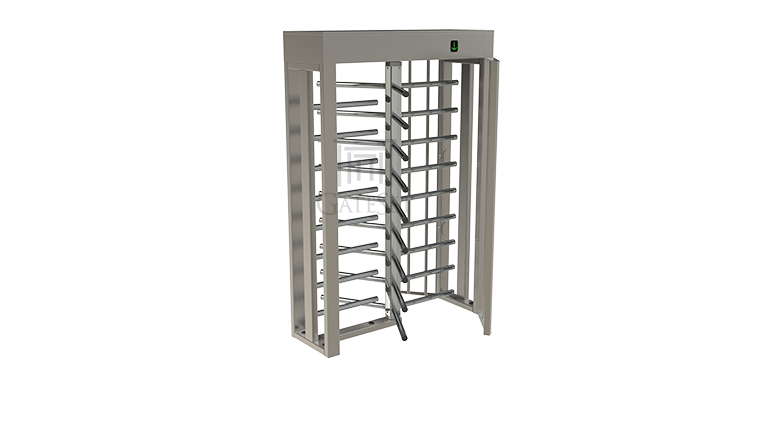

GF-4340 - 304 SS ROTOR AND BODY
Hover mouse on product for 3D view
Click for 3D view
FULL HEIGHT
TURNSTILES
GF-4300 Series / Industrial Line
GateSet Industrial Line GF-4300 Series Full Height Turnstiles are built to control pedestrian access in areas requiring high level of security. Designed to meet the expectations of the industrial world, GF-4300 Series stand out with features such as Invalid Passenger Sensor and Manual Override Box; rendering it compliant to industry-specific standards. The modular structure of GF-4300 Series provides easy handling of logistics both in transportation and installation stages.
Functional Highlights
Usage Areas
Access Control
Stadiums
Government Offices
Embassies
Airports
Underground Car Parks
Industrial Areas
Featured Characteristics
Robust
Designed to withstand hard environmental conditions such as heavy rains, dust, wind and cold
Compact
Smaller case design compared to its predecessors provide high security while saving space
Modular
Demounted packing provides ease of transport along with easy assembly
Flexible
Ease of integration with various access control systems thanks to its high-end PLC, which answers all demanded high-end functions
Above the Line
Fully meets the requirements of industrial realm, such as compliance with standards such as HCIS
Products in this Series

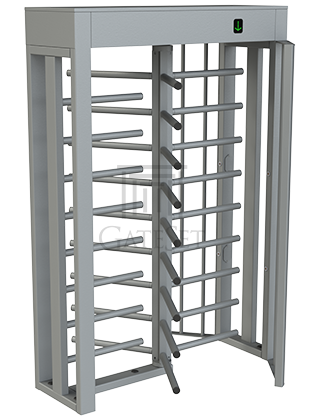

GF-4300
GF-4320
-Main Body and Frame:
Powder Coated
-Arms and Rotor:
304 Stainless Steel
-RAL Color Options Available:,
6018, 5002, 7001, 7040, 7032
-Recommended For:
* Indoor * Low Moist Outdoor

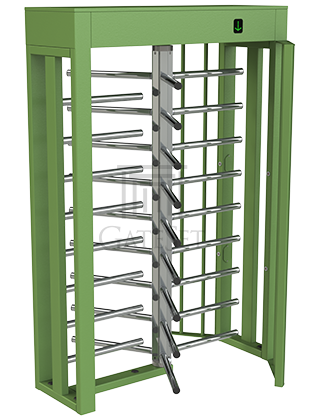

GF-4330
-Main Body and Frame:
Powder Coated
-Arms and Rotor:
316 Stainless Steel
-RAL Color Options Available:,
6018, 5002, 7001, 7040, 7032
-Recommended For:
* Indoor * Low Moist Outdoor

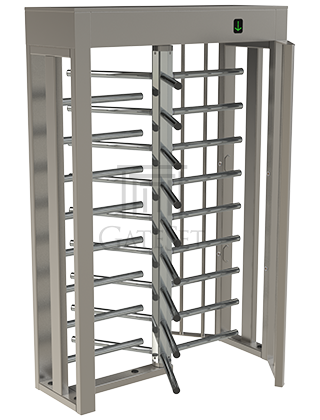

GF-4340
-Main Body and Frame:
304 Stainless Steel
-Arms and Rotor:
304 Stainless Steel
-Not Painted, No Color Options
-Recommended For:
* Indoor, Moist Outdoor
Optional Features
Manual Override Box
Placed at the secure side of the roof within a locked compartment, Manual Override Box provides ease of passage mode configuration for authorized security personnel. Available optionally, this feature comes as default in “-T” configuration
Passage Tracking Sensor
In order to acknowledge physical passage of the user, passage tracking feature is provided with passage sensors, which are located at 4 different points through the passage. Available optionally, this feature comes as default in “-T” configuration
Optional Accessories
Top Panel Led Lighting
A more visible passage indication is provided with LED Lights placed both at entry and exit sides.
Top Panel Spot Light
For remote areas with low or no illumination, passage enlightenment is available with Spot Lights
Stand-Alone Card Reader
For sites without Access Control System, different types of stand-alone card readers are available.
Button Control Unit
Designed for guard rooms, provides ease of operation for security personnel.

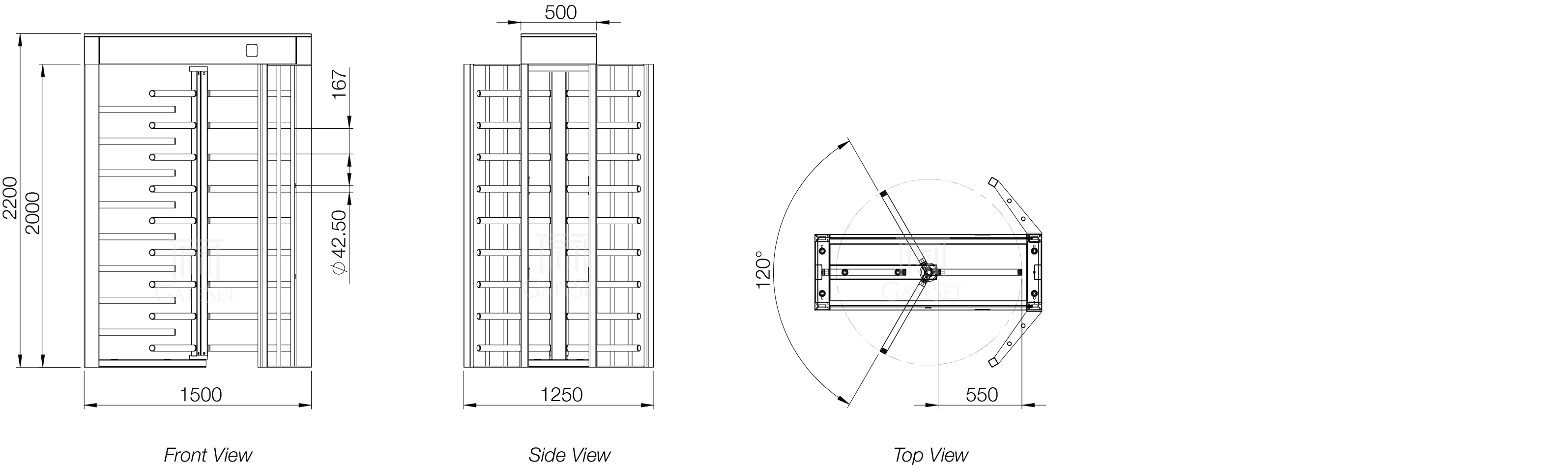

Drawings and Dimensions
* Subject to change depending on design or project needs without prior notice
Technical Specifications
GF-4300 Series
| MATERIAL - MAIN BODY | GF-4300 / GF-4320: Electrostatic Powder Coating on Steel |
| GF-4340: 304 Stainless Steel - Satin Finishing | |
| MATERIAL - ROTATING ARMS | GF-4300: Electrostatic Powder Coating on Steel |
| GF-4320 / GF-4340: 304 Stainless Steel | |
| TREATMENT - OTHER PARTS | All other parts are coated against corrosion |
| DIMENSIONS (mm) | 1250 x 1500 x 2200 (WxLxH) |
| PASSAGE WIDTH (mm) | 620 |
| OPERATING VOLTAGE | 220V / 50Hz |
| NOMINAL / MAX. CURRENT | 250 mA / 850 mA |
| POWER CONSUMPTION | 30 W |
| OPERATING TEMPERATURE | -20°C / + 70°C |
| ACCESS CONTROL | Microprocessor based control for granting access. |
| Easy integration with all kind of access control equipment | |
| POSITION DETECTION | Position detection with two separate micro-switches at mechanics |
| PASSAGE ACKNOWLEDGMENT | Provided by 4 pieces of optical passage sensors controlled with PLC (optional) |
| WARNING INDICATORS | Two separate warning indicators at front and rear sides of the gate. |
| Green arrow indicates “Passage Open”, Red cross indicates “Passage Closed” | |
| OPERATION MODE | 6 different operational modes available, programmed by means of software |
| DIRECTIONAL MODE | Unidirectional and Bidirectional operation features as “Only Entrance”, “Only Exit”, “Entrance and Exit” |
| ROTATION CONTROL | Self-centered and smooth operation by means of spring and hydraulic damper |
| CAPACITY | Handling more than 30 passengers per minute |
| DESIGN | While Cage type design enhances security, its modularity ensures easy part replacement |
| OPERATION SAFETY | Electrical and mechanical safety for all components, |
| To avoid injuries, all corners and sides are rounded | |
| MANUAL OVERRIDE | Entry and Exit Manual Override option with locked switch cabinet (optional) |
| ELECTRICAL FAILURES | Main mechanism released and unlocked automatically. Arms rotates free. |
| CERTIFICATION | ISO 9001:2015, CE |
| WARRANTY | 2 Years |
