Ticketing and ID
SYSTEMS

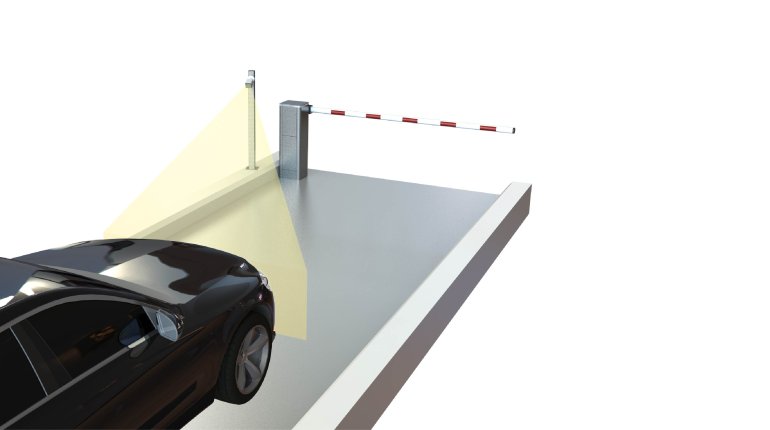

PRS3500 Series / License Plate Recognition
GateSet PRS3500 License Plate Recognition provides state of the art vehicle access inspection with success rate of 98,2% in daylight and 99,2% in nighttime. The system is ideal for a broad range of use from high-speed, highway traffic inspection to parking lot management of facilities such as hospitals, business centers, residential buildings, government/military compounds and shopping malls. Advanced functions of PRS3500 Series includes extensive activity report for each recorded license plate along with assignment and warning for banned vehicles. System is designed to easily integrate with parking management/guidance and access control products such as ticketing systems and rising arm barriers.
Usage Areas
Access Control
Military Sites
Government Offices
Police Headquarters
Research Centers
Embassies
Airports
Industrial Areas
License Plate Recognition Features
Camera Independent System
In terms of camera component, PRS3500 Series are brand or model independent. The system is compatible with all IP cameras which feature Real Time Streaming Protocol. In standard configuration, PRS3500 comes with 2MP Lite AI IR Vari-focal Bullet Network Camera.
Precise Plate Detection
PRS3500 Series provides one of the best plate recognition rates in the market with a success ratio of 98.2% accuracy in daylight and 99.2% at night.
Multi-functional Software
Web-based interface which comes with extensive features such as guest and personnel entry/exit data logging, audible and visual alarm for blacklisted persons; notification to facility personnel for white-listed guests.
Wide Usage Range
When integrated with UVS2000 System, a range of plate recognition up to 15 meters is available. In cases where PRS3500 System is used on the highways for various other purposes such as speed control, toll management and security check, recognition range can be extended up to 40 meters and the system can identify the license plate of vehicles traveling at a maximum speed of 200 km/h (requires additional hardware).

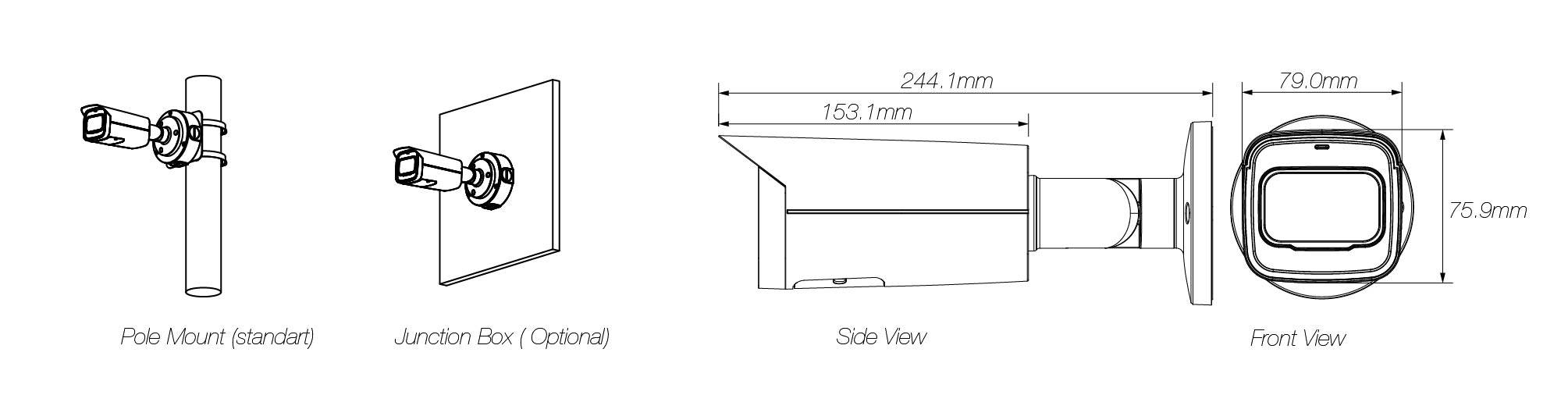

LPR Camera Mounting Options and Dimensions*
*Subject to change depending on design or project needs without prior notice
Technical Specifications*
PRS3500 Plate Recognition System
| GUVIS PLATE SOFTWARE | |
| LPR VERSION | GUVIS Plate v2.0 |
| BARRIER TRIGGER | Manual with Software button. Auto Trigger for White-Listed Vehicles can be turned on/off |
| TRIGGER INTERFACE | Dry Contact with adjustable duration from Serial Port (standard) Ethernet (optional with additional relay card) |
| REPORTS | Date, Time and License Plate based Search and Monitoring |
| ARCHITECTURE | ervice runs on Server, Simultaneous Monitoring Supported up to 4 Clients (computers and accessories are not included) |
| ACTIVATION SUPPORT | Free Online Support for first installation and activation. Further support requests might be charged |
| LPR CAMERA | |
| IMAGE SENSOR | 1/2.8”2Megapixel progressive CMOS |
| EFFECTIVE PIXELS | 1920(H) x1080(V) |
| RAM/ROM | 256MB/16MB |
| SCANNING SYSTEM | Progressive |
| ELECTRONIC SHUTTER SPEED | Auto/Manual 1/3 s–1/100000 s |
| MINIMUM ILLUMINATION | 0.1Lux/F1.4(Color), 0Lux/F1.4(IR on) |
| S/N RATIO | More than 50dB |
| IR DISTANCE | Distance up to 60m(197ft) |
| IR ON/OFF CONTROL | Auto/ Manual |
| IR LEDS | 4 |
| LENS TYPE | Pole Mount (standard), Junction Box (optional) |
| FOCAL LENGTH | 2.7mm~13.5mm |
| MAX. APERTURE | F1.4 |
| ANGLE OF VIEW | H:99°~37°, V:52°~21° |
| FOCUS CONTROL | Motorized (-ZS),Manual(-VFS) |
| CLOSE FOCUS DISTANCE | 0.3m |
| POWER SUPPLY | DC12V PoE (802.3af)(Class 0) |
| POWER CONSUMPTION | <9.4W |
| WARRANTY | Two (2) Years |
| SUPPORTED COUNTRIES | Albania, Algeria, Argentina, Australia, Austria, Azerbaijan, Belarus, Belgium, Bolivia, Bosnia and Herzegovina, Botswana, Brazil, Bulgaria, Cambodia, Cameroon, Canada, Cape Verde, Chile, Colombia, Costa Rica, Croatia, Cuba, Cyprus, Czech Republic, Democratic Republic of the Congo, Denmark, East Timor, Ecuador, El Salvador, Estonia, Finland, France, Georgia, Germany, Ghana, Greece, Guatemala, Honduras, Hungary, Iceland, India, Indonesia, Ireland, Israel, Italy, Jordan, Kazakhstan, Kenya, Kyrgyzstan, Latvia, Lebanon, Lithuania, Luxembourg, Macao, Malaysia, Myanmar, Namibia, Netherlands, Norway, Pakistan, Palestine, Paraguay, Peru, Philippines, Poland, Portugal, Puerto Rico,Republic of the Congo, Romania, Russia, Singapore, Slovakia, Slovenia, South Africa, Spain, Sri Lanka, Sweden, Switzerland, Tanzania, Turkey, United Kingdom, Ukraine, Uruguay, Uzbekistan, Venezuela, Vietnam |
