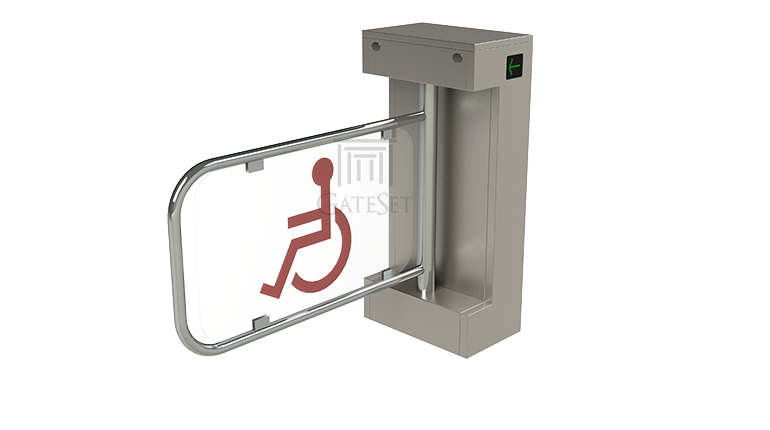

GV-3100 SWING GATE TURNSTILE

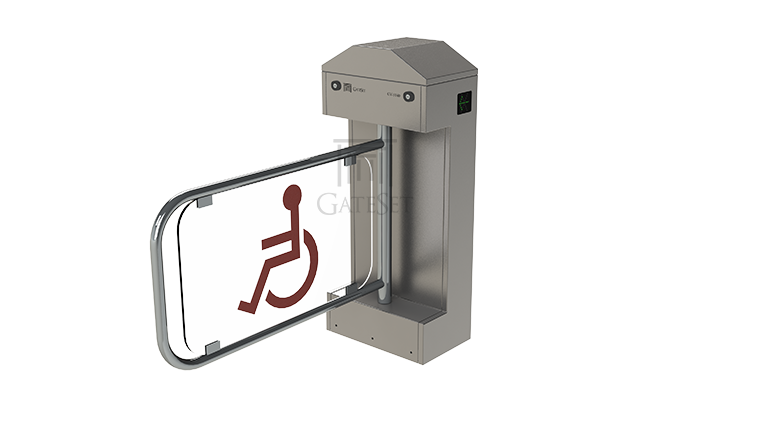

GV-3140 SWING GATE TURNSTILE
Hover mouse on product for 3D view
Click for 3D view
Swing Gate
Turnstiles
GV-3100 Series / Classic Line
With its motorized function in both directions, GateSet Classic Line GV-3100 Series Motorized Swing Gates are designed to endure high frequency passage as an alternative way to regulate pedestrian traffic. GV-3100 Series is compatible with international wheelchair standards thanks to passage width provided up to 90 cm. Stainless steel profile obstacle arm filled with 15 mm thick Plexiglass, which provides safety against breaking while maximizing robustness. GV-3100 Series is designed to be perfectly compatible with GT-3100 Series Trip Turnstiles in order to provide a full access control solution in the most coherent way.
Functional Highlights
Usage Areas
Access Control
Access Restriction
Business Centers
Government Offices
Sport Centers
Industrial Plants
Featured Characteristics
Classic Design
Aesthetic outfit with satin finishing, compatible design with GT-3100 Trio Turnstiles
Reliable
Low maintenance requirement, long product life
Robust
Steel profile swing arm with Plexiglass infill
Functional
Unidirectional motorized movement
Flexible
Ease of integration with all access control equipment through its electronic control card
Products in this Series

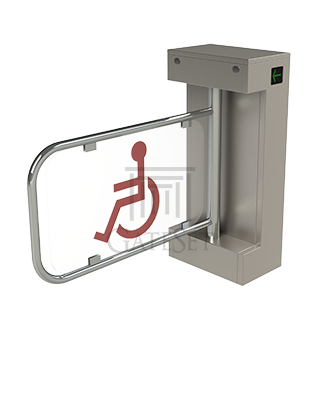

GV-3100

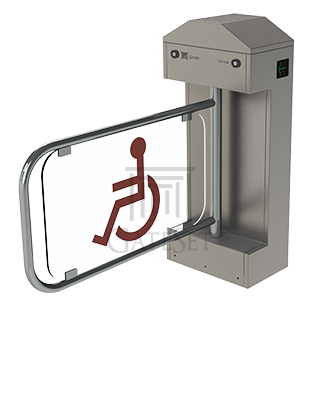

GV-3140
- Angled Top design provides
seamless incorporation for
all reader integrations
- Recommended For:
* Handling 4,000+ users / day
Optional Accessories
Digital Counter
If required, integrated digital counter provides passage count through digital screen
Button Control Unit
Designed for ease of operation from reception or supervision desks, remote or wired options
Photocell Sensor
Gate wing is automatically opened when the Photocell Sensor beam is interrupted by a passanger
Stand-Alone Card Reader
For sites without Access Control System, seamless stand-alone card reader is available

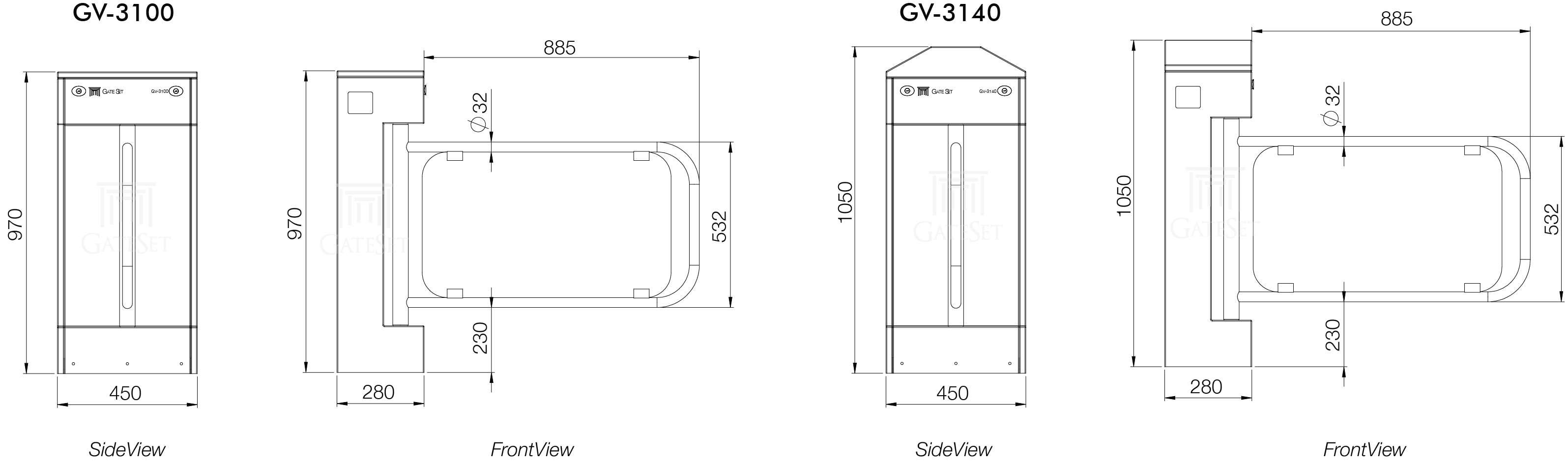

Drawings and Dimensions
* Subject to change depending on design or project needs without prior notice
Technical Specifications
GV-3100 Series
| MATERIAL - MAIN BODY | 1.5 mm 304 grade stainless steel |
| MATERIAL - SWING ARM | Steel profile frame with 32 mm diameter, Plexiglass Infill |
| TREATMENT - OTHER PARTS | All other parts are coated against corrosion |
| DIMENSIONS (mm) | GV-3100: 450 x 1165 x 970 (WxLxH) |
| GV-3140: 450 x 1165 x 1050 (WxLxH) | |
| SWING ARM LENGTH (mm) | 885 |
| OPERATING VOLTAGE | 220 V AC / 24V DC - 50-60 Hz |
| NOMINAL / MAX. CURRENT | 100 mA / 500 mA |
| POWER CONSUMPTION | 30 W |
| OPERATING TEMPERATURE | -20°C / + 70°C |
| ACCESS CONTROL | Microprocessor based control for granting access. |
| Easy integration with all kind of access control equipment. | |
| POSITION DETECTION | Position detection with two separate micro-switches at mechanics. |
| DIRECTIONAL MODE | Bi-directional motorized operation. |
| ROTATION CONTROL | Motion start and stop are controlled by PWM microprocessor. |
| CAPACITY | Handling more than 30 passengers per minute. |
| DESIGN | Modular design providing ease of installation and part replacement. |
| GV-3100 Flat Top is coherent with GT-3100 Flat Top, similarly | |
| GV-3140 Angled Top is coherent with GT-3140 Angled Top. | |
| INSTALLATION | Stainless steel modular installation platform/base. |
| OPERATION SAFETY | Electrical and mechanical safety for all component. To avoid injuries, all corners and sides are rounded. |
| ELECTRICAL FAILURES | Main mechanism released and unlocked automatically. |
| Swing arm moves freely. | |
| OPTIONAL ACCESSORIES | Digital Counter, Button Control Panel, Photocell Sensor, Stand-Alone Card Reader |
| CERTIFICATION | ISO 9001:2015 |
| WARRANTY | 2 Years |
