TURNSTILES
GT-9100 Trio
PEDESTRIAN
ACCESS
CONTROL
ACCESS
CONTROL
PEDESTRIAN
ACCESS
CONTROL
ACCESS
CONTROL

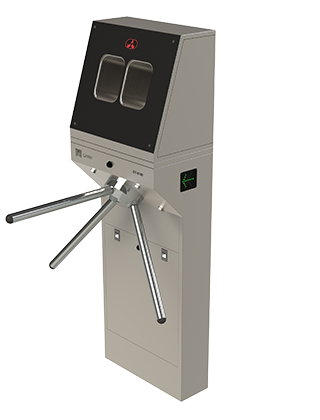

GT-9100 ANGLED TOP

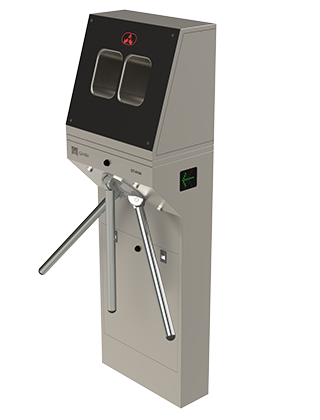

GT-9104 ANGLED TOP - DROP ARM
Hover mouse on product for 3D view
Click for 3D view
TRIO
TURNSTILES
GT-9100 Series / Special Line
GateSet Special Line GT-9100 Series Waist Height Hygiene Trio Turnstiles are designed for disinfection both hands before entering where the hygiene is mandatory. Gateset GT-9100 Series Hygiene Turnstiles are ideal solution for the areas such as; food production, laboratories, or any specially designated facilities. Before entering to the designated area, gate sprays 3-5 ml alcohol based sanitizer on both hands at the same time and thanks to integrated sensors, it detects automatically when disinfection has been completed, then unlocks the arms automatically to authorize passage. Customized solutions are available depending on project requirement or installation site.
Functional Highlights
Usage Areas
Access Control
Sanitized Areas
Food Manufacturing Facilities
Sensitive Laboratories
Featured Characteristics
Elegant
Delicately processed Satin finish on 304 Grade Stainless Steel.
Reliable
Heavy duty mechanics controlled by reliable electronics, ensuring long product life with minimal maintenance requirement.
Robust
Case manufactured from 1.5 mm thick stainless steel for maximum resistance to high frequency usage.
Safe
Optional drop arm function which provides fast passage and evacuation in case of emergency.
Flexible
Ease of integration with various access control systems thanks to its sophisticated electronic control card, which answers all demanded high-end functions
Products in this Series

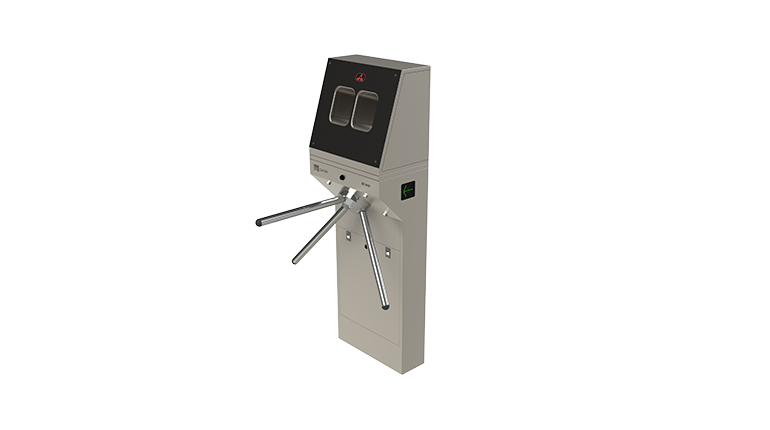

GT-9100

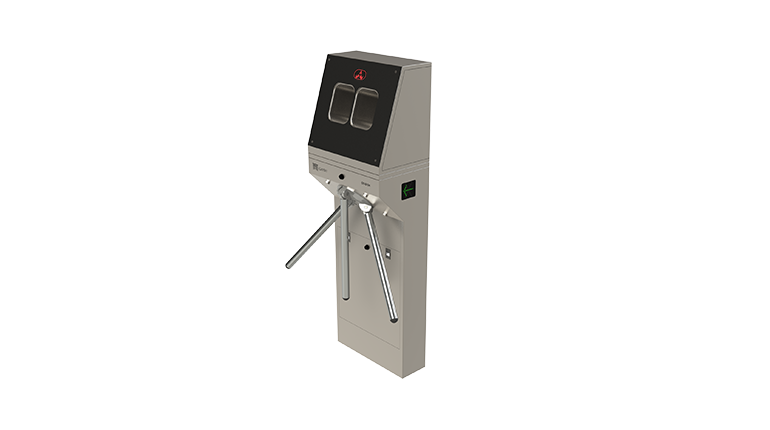

GT-9104
- Angled Top design provides
seamless incorporation for
all reader integrations
- Recommended For:
* Handling 4,000+ users / day
- Emergency Drop Arm
Feature
Optional Accessories
Passage Sensor
Sensors can be deployed on the turnstile in accordance with required functions such as real-time passage signal or unauthorized passage alarm.
Button Control Unit
Designed for ease of operation where security personnel is responsible of opening the turnstile for passengers; wired and remote options available.
Stand-Alone Card Reader
For sites without Access Control System, seamless stand-alone card reader is available.
Token Unit
Customizable token collector can be integrated to the turnstiles, system is adaptable to all token and coin types.

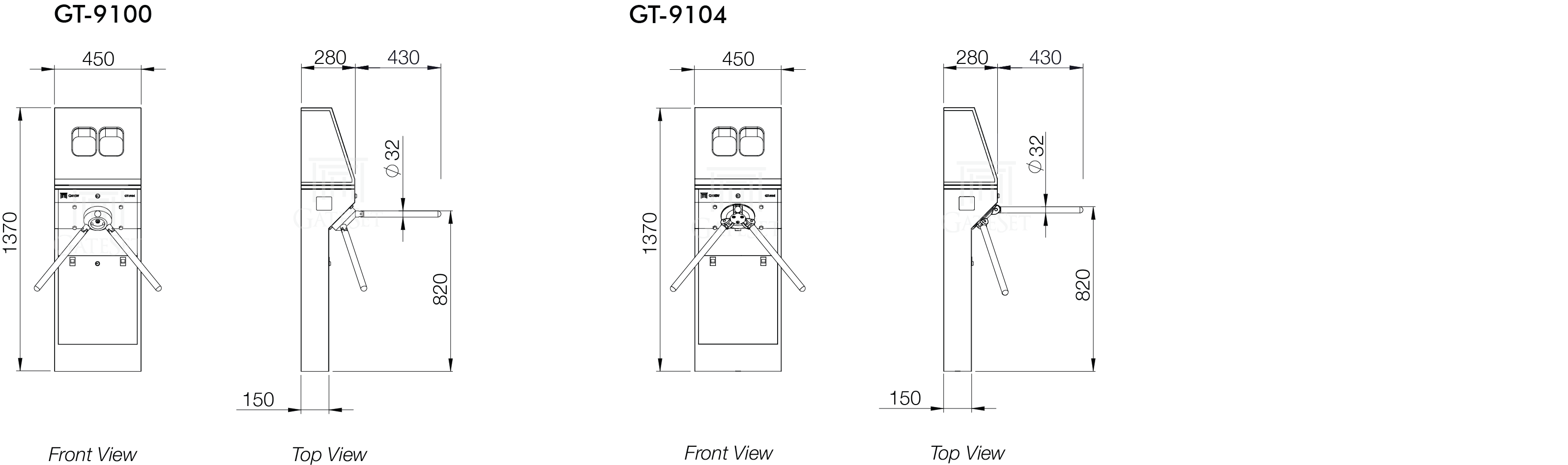

Drawings and Dimensions
* Subject to change depending on design or project needs without prior notice
Technical Specifications
GT-9100 Series
| DIMENSIONS (mm) | 280 x 450 x 1370 (WxLxH) |
| ARM LENGTH (mm) | 430 |
| OPERATING VOLTAGE | 115-240 V AC / 24V DC - 50-60 Hz |
| NOMINAL / MAX. CURRENT | 250 mA / 850 mA |
| POWER CONSUMPTION | 30 W |
| OPERATING TEMPERATURE | -20°C / + 70°C |
| ACCESS CONTROL | Automatic access granting, optical sensors provide access signal to the |
| electronic control card after both hands are sanitized | |
| POSITION DETECTION | Position detection with two separate micro-switches at mechanics |
| DROP ARM FEATURE | Dropping feature at each tripod arm providing ease of site evacuation at the case of emergency (optional) |
| WARNING INDICATORS | Two separate warning indicators at front and rear sides of the gate. |
| Green arrow indicates “Passage Open”, Red cross indicates “Passage Closed” | |
| OPERATION MODE | 6 different operational modes available, programmed by means of software |
| DIRECTIONAL MODE | Unidirectional and Bidirectional operation features as “Only Entrance”, “Only Exit”, “Entrance and Exit” |
| ROTATION CONTROL | Self-centered and smooth operation by means of spring and hydraulic damper |
| CAPACITY | Handling more than 30 passengers per minute |
| DESIGN | While aesthetic classical case design provides good outlook, its modularity ensures ease of installation and part replacement |
| OPERATION SAFETY | Electrical and mechanical safety for all component. To avoid injuries, all corners and sides are rounded |
| ELECTRICAL FAILURES | Main mechanism released and unlocked automatically. Arms rotates free |
| CERTIFICATION | ISO 9001:2015, CE |
| WARRANTY | 2 Years |
