VEHICLE GATES
GSG-S Vehicle Gate
VEHICLE
ACCESS
CONTROL
ACCESS
CONTROL
VEHICLE
ACCESS
CONTROL
ACCESS
CONTROL
VEHICLE GATE
BARRIERS

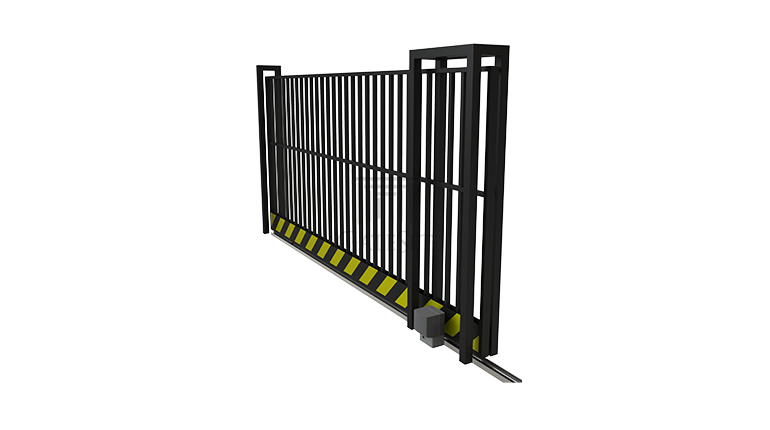

GSG-S Series
GateSet GSG-S Series Sliding Gate Systems provide access control to restricted areas by combining delicately manufactured steel gates with highly reliable actuators, which include a powerful motor with long operation life and all necessary accessories such as safety photocells, remote controlling device and flashing lights. Thanks to flexible production line, various material options are available with different gate dimensions.
Usage Areas
Access Control
Military Sites
Government Offices
Police Headquarters
Research Centers
Embassies
Airports
Industrial Areas
Featured Characteristics
Modular
Disassembled wheels and spikes which provide ease of transportation and installation, along with practical process of maintenance.
Robust
Thanks to its solid structure with fine-crafted material, provides durability in various harsh environmental conditions such as extreme colds, high temperatures, sand and rain storms
Tailor-Made
With the project-specific approach of GateSet engineering department, site requirements are carefully investigated and ideal solutions are provided with exact required dimensions
Adaptable
Presents case-oriented solutions with different operational choices such as sliding, telescopic sliding and swing movement, depending on site conditions

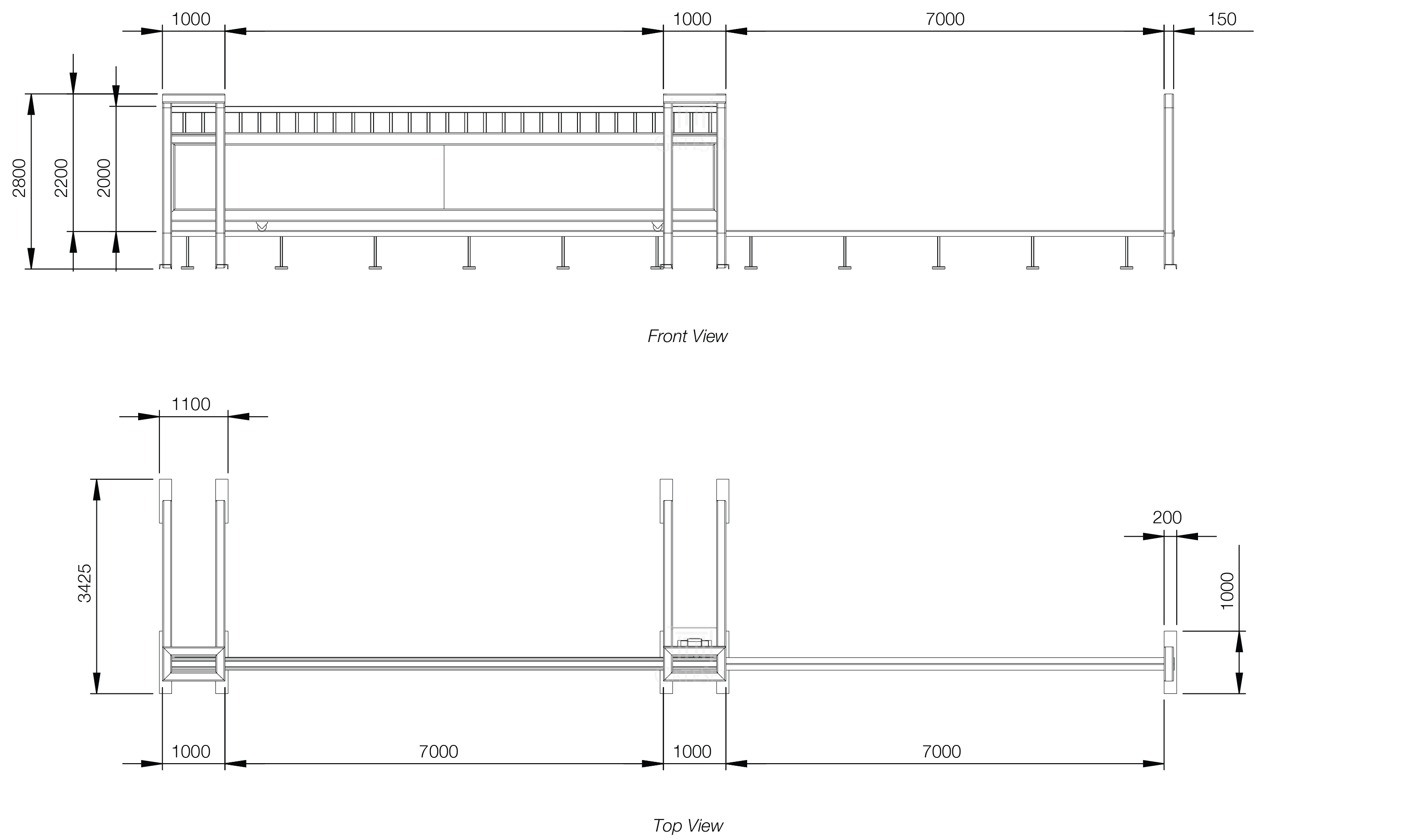

Drawings and Dimensions
GSG-S Series
Subject to change depending on design or project needs without prior notice
Technical Specifications
GSG-S Series
| MAIN BODY | 50 x 100 mm Steel Profile Main Frame |
| 50 x 50 mm Filled Steel Frame Vertical Infills | |
| COATING | Anticorrosive Coating with Two Component Surface Tolerant Epoxy Mastic (Jotamastic), Finished by Black Polyester with Yellow Stripes ( Different RAL Colors Available on Demand) |
| DIMENSIONS (mm) | 7400 x 450 x 3100 (WxLxH) - (for GSG6300-S) |
| PASSAGE WIDTH/HEIGHT (mm) | From 3000 to 8000 / From 1000 to 3000 |
| Max. 16000 Width Available with 2x Synchronized Wings | |
| OPERATION | Motorized Movement with BFT ICARO NF |
| MOTOR DIMENSIONS (mm) | 260 x 178 x 270 (WxLxH) |
| POWER | 220-230V 50/60 Hz - 750 W |
| SPEED | 12 m/min |
| MAX LEAF WEIGHT | 2000 kg |
| MAX TORQUE | 40 Nm |
| OBSTACLE DETECTION | With Motor Encoder |
| MANUAL OPERATION | Knob-operated Mechanical Release |
| TYPE OF USE | Intensive |
| PROTECTION LEVEL | IP55 |
| OPERATING TEMPERATURE | -15° C / +60° C |
| ACCESSORIES | Safety Photocell (On Poles), Flashing Light, Remote Control Receiver / Transmitter |
| CERTIFICATION | ISO 9001:2015 |
| WARRANTY | 2 Years |
