gms & gtm parking management system
GMS & GTM PARKING MANAGEMENT SYSTEM
gms & gtm parking management system 360

Hover mouse on product for 3D view

Click for 3D view

CAR PARKING
MANAGEMENT SYSTEMS

GMS Series

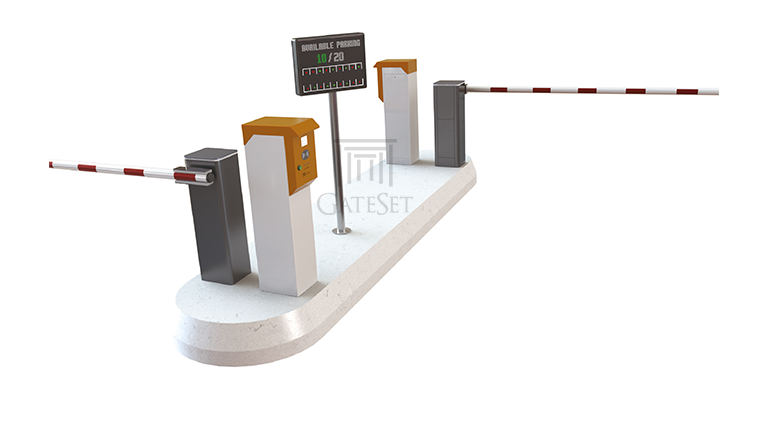

GateSet provides a complete solution for parking management with fee collection, membership administration and visual guidance for public and private parking areas. GTM Series Ticket Dispenser and Reader Machines are fully controlled in an online mode by GMS5000 Parking Management Software. Vehicle access is regulated by GateSet Barriers which come with a vast variety, depending on application area and are seamlessly integrated with GMS/GTM Series. GateSet Parking Management Systems provide reliable, flexible and user-friendly solutions for parking management and are compatible for busy areas with high capacity.

Usage Areas
Access Control

Military Sites
Government Offices
Police Headquarters
Research Centers
Embassies
Airports
Industrial Areas

Featured Characteristics
Reliable

High quality equipment selection throughout the entire system components, providing an end­to-end solution with remarkable authenticity

lnteractive

A user-friendly solution is provided with interactive displays on equipment and explicit guidance screens which show the closest available parking location to the guests

Flexible

Optional integration in a seamless fashion with ID systems such as RFID membership cards, license plate recognition systems and different payment configurations

TailorMade

With the project-specific approach of GateSet engineering department, site requirements are carefully investigated and ideal solutions are provided with exact required specifications

Products in this Series

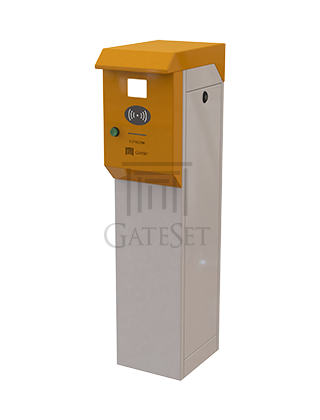

GTM2200

Ticket Dispenser Machines are designed to deliver parking tickets in a fast and reliable fashion. The unit prints barcode-based entrance data on CR-80 sized carton tickets, which can optionally include license plate details. System is also compatible with RFID membership.

GTM2200

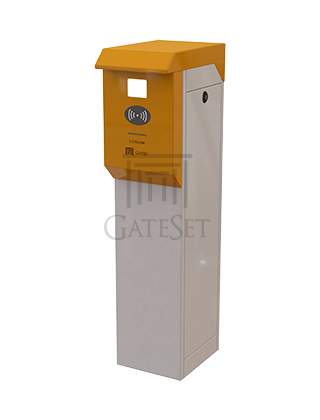

GTM4200

GTM4200 Ticket Collector Machines are designed to collect parking tickets regardless of inserting direction. System can optionally be equipped with embedded contactless card reader for membership and VIP guests.

GTM4200

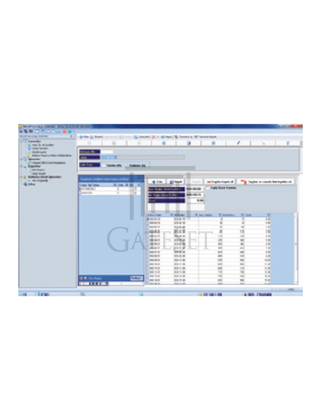

SOFTWARE

With different configuration options such as central payment and pay-at­-exit, GateSet Parking Management Software comes with features such as membership and fee definitions, automatic fee calculation and detailed transaction reporting

SOFTWARE

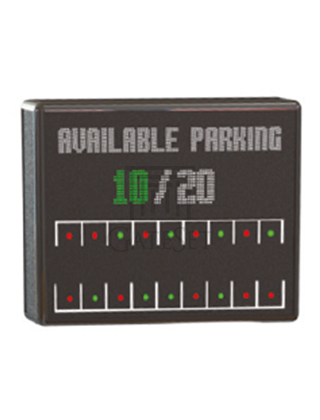

GUIDANCE

GateSet Parking Guidance System provides ease of access and efficient time management to visitors. lnnovative parking screens show floorplan and available spaces through online communication with ultrasonic LED sensors placed at each individual parking spot.

GUIDANCE

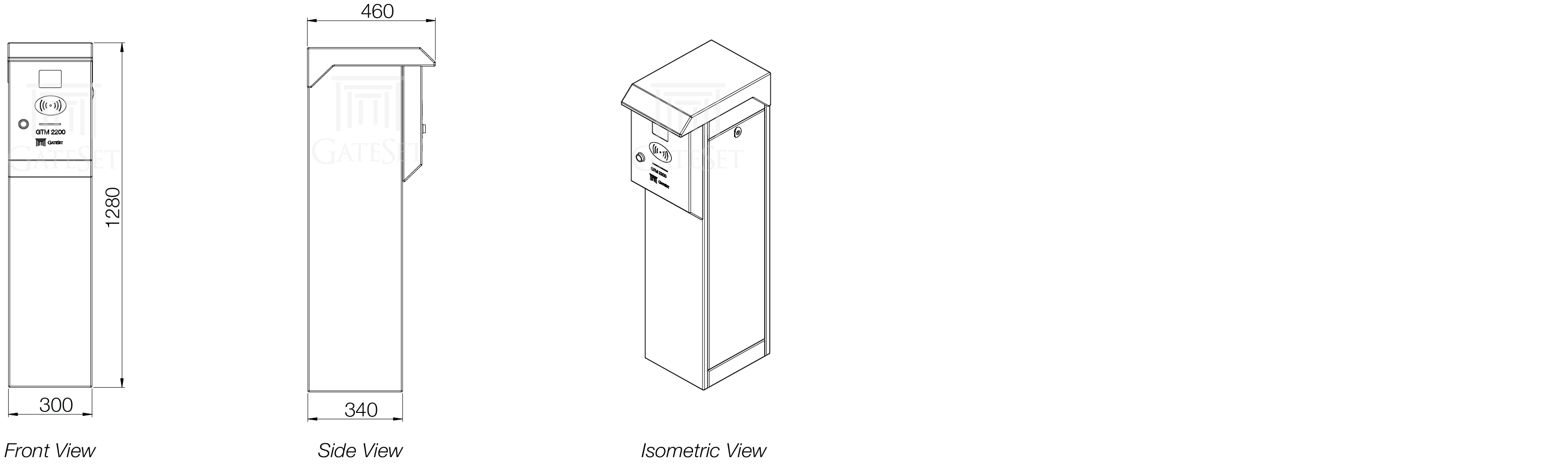

Drawings and Dimensions

*Subject to change depending on design or project needs without prior notice

Technical Specifications
GMS>M Parking Management System
DISPLAY 3.5” LCD/TFT color screen
FEATURES Barcode ticket printer/dispenser
  Membership card reader
EMBEDDED CARD READER Contactless Type Proximity
PRINTING SPEED Ticket printing in 1.5 seconds
DOUBLE SIDED READING Reads inserted tickets regardless of inserting direction
SYSTEM FEEDBACKS LOW TICKET QUANTITY and SYSTEM ERROR feedbacks
ANTI CORROSION Powder coated case
DIMENSIONS (in mm) 300 x 460 x 1280
OPERATING TEMPERATURE - 20°C / +55°C
TICKET CAPACITY 5,000 tickets.
MAIN POWER 220V / 50Hz
ON BOARD POWER 24V PSU.
OPERATION CONTROL Complete PLC controlled
COMMUNICATION RS 485 - Online
CERTIFICATION ISO 9001:2015
WARRANTY 2 Years
