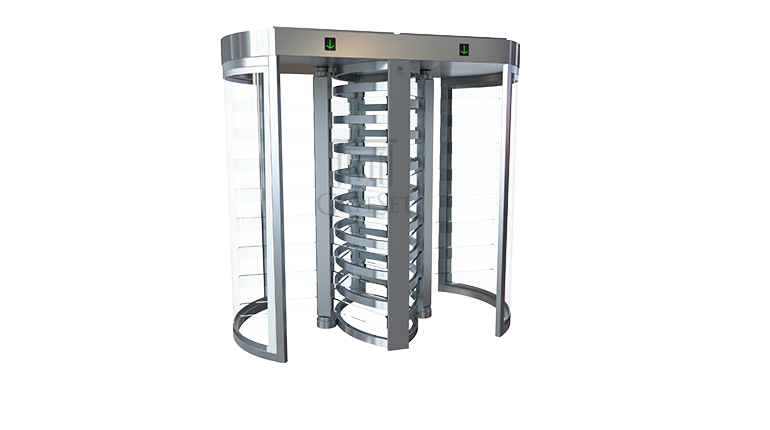

GF-6600 Series / Corporate Line
GateSet Corporate Line GF-6600 Series Double Full Height Turnstiles carry the heightened security of industrial full height turnstiles to office environments with grace and aesthetic. Polycarbonate panels of GF-6600 provide transparent obstacles, enhancing the field of vision while presenting a robust solution for personnel-free access control points. With ability to handle crowded labors of a business center, GF-6600 Series is the perfect choice for security in corporate world.
Functional Highlights
Usage Areas
Access Control
Private Corporate Entrances
Government Offices
Plaza Entrances
Business Centers
Embassies
Airports
Shopping Malls
Featured Characteristics
Elegant
Transparent polycarbonate panels and Plexiglass arms achieve high aesthetic value
Reliable
Secure structure with high durability, achieving low maintenance requirement and long product life
Modular
Demounted packing provides ease of transport along with easy assembly
Flexible
Ease of integration with various access control systems thanks to its high-end PLC, which answers all demanded high-end functions
Optional Features
Indicator Led Signs
Sıngle Passage Configuration
For areas with lower crowd frequency such as small offices, GF-6300 Series single passage configuration model provides the same elegant and high-security solution while also saving space.
Bullet-proof Panels and Arms
GF-6600 Series are also available with bullet-proof panels and arms for the execution of maximum security in highly sensitive facilities, such as embassies, courthouses and military bases.
Passage Tracking Sensor
GF-6600 can be modified with Passage Sensors, which provides a real-time passage signal. With this feature, an alarm is raised when an access is granted but physical passage is not completed, helping to achieve an accurate access control.
Optional Accessories
Stand-Alone Card Reader
For sites without Access Control System, seamless stand-alone card reader is available
Digital Counter
If required, integrated digital counter provides passage count through digital screen
Drawings and Dimensions
* Subject to change depending on design or project needs without prior notice
Technical Specifications
GF-6600 Series
| MATERIAL - MAIN BODY | 3mm 304 Grade Stainless Steel |
| MATERIAL - ARMS | 15 mm Plexiglass |
| MATERIAL - SIDE SHIELD | 5 mm Polycarbonate with Stainless Steel Frame |
| TREATMENT | All parts are coated against corrosion |
| DIMENSIONS (mm) | 2250 x 1225 x 2200 (WxLxH) * |
| PASSAGE WIDTH (mm) | 650 (per passage) |
| OPERATING VOLTAGE | 220V / 50Hz |
| NOMINAL / MAX. CURRENT | 250 mA / 850 mA (per passage) |
| POWER CONSUMPTION | 30 W (per passage) |
| OPERATING TEMPERATURE | -20°C / + 70°C |
| ACCESS CONTROL | PLC based control for granting access |
| Easy integration with all kind of access control equipment | |
| POSITION DETECTION | Position detection with two separate micro-switches at mechanics |
| PASSAGE ACKNOWLEDGMENT | Provided optical passage sensors controlled with PLC (optional) |
| WARNING INDICATORS | Two separate warning indicators at front and rear sides of the gate. |
| OPERATION MODE | 6 different operational modes available, programmed by means of software |
| DIRECTIONAL MODE | Unidirectional and Bidirectional operation features as “Only Entrance”, “Only Exit”, “Entrance and Exit” |
| ROTATION CONTROL | Self-centered and smooth operation by means of spring and hydraulic damper |
| CAPACITY | Handling more than 30 passengers per minute |
| OPERATION SAFETY | Electrical and mechanical safety for all components, |
| To avoid injuries, all corners and sides are rounded | |
| MANUAL OVERRIDE | Entry and Exit Manual Override option with locked switch cabinet (optional) |
| ELECTRICAL FAILURES | Main mechanism released and unlocked automatically. Arms rotates free. |
| CERTIFICATION | ISO 9001:2015, CE |
| WARRANTY | 2 Years |
